DS-1322HZ-C
DS-1322HZ-C Outdoor Housing Features: All-weather integrated design, convenient installation and maintenance. Fully sealed design, high temperature resistance, Anti- strong wind; storm and dust. Configure different types of camera lens according to the respective requirements. Notice: Read the instructions carefully and observe all warnings before installing this equipment. Turn off the power before wiping this equipment, do not use liquid or spray cleaning agent. Do not install on unstable bracket. Protect the power line, especially the flexible line of the plug and camera. Order Model: DS-1322HZ-C Dimension: Parameter: Model Parameters DS-1322HZ-C Outdoor Housing Produce features Contain fan, sun shading cover Working temperature -20℃~+60 ℃ Window area(mm) 77x58 Automatic temperature control range Without heating Fan on: 45°±5° Fan off: 30°±5° Power AC24V Power consumption 10W Protection level IP66 Material Main: aluminum alloy Window: glass Dimension(mm) 143x114.5x500 Matching power supply AC24V 1.5A Power pack ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1322HZ-H
DS-1322HZ-H Outdoor Housing with heater 罩 Features: All-weather integrated design, convenient installation and maintenance. Fully sealed design, high temperature resistance, Anti strong wind; storm and dust. Configure different types of camera lens according to the respective requirements. Notice: Read the instructions carefully and observe all warnings before installing this equipment. Turn off the power before wiping this equipment, do not use liquid or spray cleaning agent. Do not install on unstable bracket. Protect the power line, especially the flexible line of the plug and camera. Order Model: DS-1322HZ-H Dimension: Parameter: Model Parameters DS-1322HZ-H Outdoor housing Produce features Contain heater, fan, sun shading cover Working temperature -40℃~+60 ℃ Window area(mm) 77x58 Automatic temperature control range Heater on: 5°±5°; Heater off: 15°±5°(Fan operating) Fan on: 45°±5°; Fan off: 35°±5° Power AC 24V Power consumption 55W Protection level IP66 Material Main: aluminum alloy Window: glass Dimension(mm) 143x114.5x500 Mat...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1330HZ
DS-1330HZ Indoor Housing Key Features： New side cover design, easy for installation Composite fiber material, low weight IP54, Good dustproof performance Silk printing design in lens cover Order Models： DS-1330HZ Dimensions： Brackets： Specification： Model Parameter DS-1330HZ Indoor Housing Protection Level IP54 Material Composite fiber Dimension(mm) 290.5x142.9x92.5mm Weight 640g 290.5 104.551 70 46.5 142.9 92.5 1 4UNC-20 D7mm DS-1203ZJ Pendant Mounting Bracket DS-1214ZJ Pole Mounting Bracket DS-1293ZJ Wall Mounting Bracket DS-1269ZJ Pendant Mounting Bracket...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

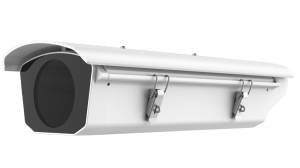

DS-1331HZ-B
DS -1331HZ - B Outdoor Housing Feature New side -cover design for convenient installation and maintenance Stainless steel dual -hasp design, protection level up to IP66 Polycarbonate glass with tempered glass screen protector for lens protection Built -in fan for keeping the camera working stably Polycarbonate window for IK10 protection Dimension and Wiring 130 mm (5.12") 51 mm (2.01") 2-1/4-UNC Depth: 7 mm (0.28") 4-M6 Depth: 7 mm (0.28") 50 mm (1.97 ") 169 .2 mm (6.66 ") 465.4 mm (18.32") 435.5 mm (17.15") 63.5 mm (2.50") 160 mm (6.3") 35 .5 mm (1.40 ") 110 mm (4.33 ") 49 .5 mm (1.95 ") 43 .3 mm (1.70 ") RS485 Output Yellow R484 - Orange R485 + DC12V Output Black DC12V - Red DC12V + Power Input Available Model DS -1331HZ -B Parameter Model Parameters DS -1331HZ -B Outdoor Housing Product Feature Built -in fan for use in high temperature environments Working Temperature -20° C to 60° C ( -4° F to...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

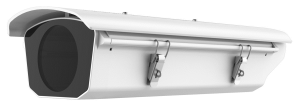

DS-1331HZ-C
DS-1331HZ-C Outdoor Housing Features: Adopt side-cover design for convenient installation and maintenance. Adopt stainless steel dual-hasp design, water-proof up to IP 67 Partial glass silk print to protect imaging area Built-in automatic temperature control system to ensure stable running. Notice: Read the instructions carefully and observe all warnings before installing this equipment. Turn off the power before wiping this equipment, do not use liquid or spray cleaning agent. Do not install on unstable bracket. Protect the power line, especially the flexible line of the plug and camera. Order Model: DS-1331HZ-C Dimension: Installation: DS-1293ZJ Wall Mount DS-1214ZJ Horizontal Pole Mount DS-1269ZJ Pendent Mount Parameter: Model Parameters DS-1331HZ-C Outdoor Housing Produce features Contain fan, suitable for high temperature environment Working temperature -20℃ ~ +60℃, Humidity 95% or less (non-condensing) Automatic temper...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1331HZ-CI
DS-1331HZ-CI Outdoor Housing Features: Adopt side-cover design for convenient installation and maintenance. Adopt stainless steel dual-hasp design, water-proof up to IP 67 Adopt hard coated Polycarbonate to protect imaging area Built-in automatic temperature control system to ensure stable running. Impact protection is up to IK10 Notice: Read the instructions carefully and observe all warnings before installing this equipment. Turn off the power before wiping this equipment, do not use liquid or spray cleaning agent. Do not install on unstable bracket. Protect the power line, especially the flexible line of the plug and camera. Order Model: DS-1331HZ-CI Dimension: Installation: DS-1293ZJ Wall Mount DS-1214ZJ Horizontal Pole Mount DS-1269ZJ Pendent Mount Parameter: Model Parameters DS-1331HZ-CI Outdoor Housing Produce features Contain fan, suitable for high temperature environment Working temperature -20℃ ~ +60℃, Hum...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1331HZ-R
DS-1331HZ-R Heat-Resistant Outdoor Housing Feature Side-cover design for convenient installation and maintenance Stainless steel dual-hasp design, up to IP 66 Built-in refrigeration module with 20,000 hours life span Applicable to high temperature places, e.g. steel plant, and thermal power plant Dimension and Wiring 521.3 mm (20.5") 489.9 mm (19.3") 141 .4 mm (5 .6") 136 .8 mm (5 .4") 108 .9 mm (4 .3 ") 169.4 mm (6.7") 99 .8 mm (3 .9 ") 49 .5 mm (1 .9 ") 204.9 mm (8.1") 51 mm (2.0") 110 to 240 V AC Accessory DS-1293ZJ Wall Mounting Bracket DS-1214ZJ Horizontal Pole Mounting Bracket DS-1269ZJ Pendent Mounting Bracket DS-1233ZJ Column Mounting Bracket Available Model DS-1331HZ-R Parameter Model Parameters DS-1331HZ-R Heat-Resistant Outdoor Housing Working Temperature -30° C to 85° C (-22° F to 185° F) Temperature Control Refrigeration model enabled, when housing’s temperature is over 45° C (113° F) Power 110 to 240 V AC Power Consumption 70 W <...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1340HZ
DS-1340HZ Indoor and Outdoor Housing Key Features： Self-contained three-axis adjustment bracket, support wall mounting, pole mounting and pendent mounting. Self-contained Ethernet port, power and data integration cable Built-in automatic temperature control system to ensure stable running. Up to IP66 protection level, suitable for indoor and outdoor environment With junction Box, convenient for wiring. Impact Protection is up to IK10 Order Model： DS-1340HZ Dimension： 537.1 265.2 153.9 100 140 2-?10 Unit:mm Installation： Wall Mount, Pendent Mount, Pole Mount Specification： Model Parameter DD-1340HZ Indoor and Outdoor Housing Power Supply 12V/2A Protection Level IP66 Power Consumption Max.5W Impact Protection IK10 Material Aluminum alloy Dimension（mm） 537.1ⅹ153.9ⅹ255.2mm Weight 5300g Wiring： Internal wiring External Wiring 风扇 黑 DC12V-红 DC12V+...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-KAB02
DS-KAB02 Protective Shield Features and Notes Stainless steel material Convenient design available for the wall mounting of the villa door station (DS-KV8X02-IM) wall mounting No insulation Available Model DS-KAB02 Specifications Parameter Model DS-KAB02 Housing material Stainless Steel SUS201 Inner-shell material SGCC Working temperature -30° C to +70° C (-22° F to 158° F) Working humidity 10% to 90% Dimension (L x W x H) 193 mm x 106 mm x 80 mm (7.60" x 4.17" x 3.15") Dimension Front View Slide View Rear View Installation 0100001061010...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 1-5
DS-KABD8003-RS1
DS-KABD8003-RS1 Protective Shield Key Feature * Adapts to one-module surface mounting with protective shield. Specification Parameters Material SECC Working temperature -40° C to +60° C(-40° F to 140° F) Working humidity 10% to 95% Dimension 122 x 116.4 x 58 mm (4.80" x 4.58" x 2.28") Weight 298.9 g Available Model DS-KABD8003-RS1 Dimension Installation 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Drill 4 holes align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) x 25 (depth) mm. 2. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts. 3. Connect the cables to the corresponding interfaces of the main unit and insert it into the frame. 4. Use the hexagon wrench in the package fix the cover onto the frame....
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 501-1000
DS-KABD8003-RS2
DS-KABD8003-RS2 Protective Shield Key Feature * Adapts to two-module surface mounting with protective shield. Specification Parameters Material SECC Working temperature -40° C to +60° C(-40° F to 140° F) Working humidity 10% to 95% Dimension 224 x 116.4 x 58 mm (8.82" x 4.58" x 2.28") Weight 500 g Available Model DS-KABD8003-RS2 Dimension Installation 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Chisel 4 holes with drill align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) x 25 (depth) mm. 2. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts. Thread the module-connecting line across the thread hole of the frame. Pass the main unit connecting lines across the thread hole to the upper grid. Connect the cables and module-connecting line to the corresponding interfaces of the main unit, then place the main unit into the upper grid. Connect the othe...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 101-500
DS-KABD8003-RS3
DS-KABD8003-RS3 Protective Shield Key Feature * Adapts to three-module surface mounting with protective shield. Specification Parameters Material SECC Working temperature -40° C to +60° C(-40° F to 140° F) Working humidity 10% to 95% Dimension 325.8 x 116.4 x 58 mm (12.83" x 4.58" x 2.28") Weight 702.3 g Available Model DS-KABD8003-RS3 Dimension Installation 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Drill 4 holes align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) x 25 (depth) mm. 2. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts. Thread the module-connecting lines across the thread holes of the frame. Pass the main unit connecting lines across the thread hole to the top grid. Connect the cables and module-connecting line 1 to the corresponding interfaces of the main unit, then place the main unit into the upper grid. Connect the other end of t...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 6-10
DS-KABV8113-RS/Flush
DS-KABV8113-RS Flush Mounting Protective Shield Key Feature * Flush Mounting protective shield for KV8113/8213/8413 series villa door station Specification Parameters Material SECC Working temperature -40° C to +60° C(-40° F to 140° F) Working humidity 10% to 95% Dimension 186 x 97 x 31 mm (7.33" x 3.82" x 1.22") Available Model DS-KABV8113-RS Dimension...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 101-500
DS-KABV8113-RS/Surface
DS-KABV8113-RS Surface Mounting Protective Shield Key Feature * Surface Mounting protective shield for KV8113/8213/8413 series villa door station Specification Parameters Material SECC Working temperature -40° C to +60° C(-40° F to 140° F) Working humidity 10% to 95% Dimension 189 x 97 x 49 mm (7.43" x 3.82" x 1.91") Available Model DS-KABV8113-RS Dimension...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 501-1000
GV-Housing103
GV-Housing103 Housing Box August 12, 2018 - 1 - GV-Housing103 Housing Box Introduction The GV ‐Housing103 is a housing box designed to support the outdoor installation for the following Box Camera models with external protection. It conforms to IP67 and IK10 standards, and is equipped with 6 IR LEDs for night operations, allowing up to 60 m (196.85 ft) IR effective distance. The GV ‐ Hou sing103 also supports optional GV ‐ Mount accessories, allowing the Box Camera to be installed on the ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
