DS-3E0105D-E
DS-3E0105D-E 10/100 Mbps Ethernet Switch * DS-3E0105D-E: 5 x 10/100 Mbps adaptive Ethernet ports * Support ADI/ADIX * Store-and-forward switching * Support MAC address auto-learning and aging * Simple and mini exquisite body * Support desktop and wall-mounting * Plug & play, and easy to use Feature and Function DS-3E0105D-E provides 5 x 10/100 Mbps Ethernet ports which support line speed forwarding. With simple and mini exquisite body, the switch is plug and play and easy to use, suitable for home, school, dormitory, office, small monitoring and other simple network environments. Model DS-3E0105D-E Network parameters Port number 5 Port type 10/100 Mbps RJ45 ports Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store and forward MAC address table 1 K Switching capacity 1 Gbps Packet forwarding rate 0.744 Mpps General Shell ABS Weight 0.025 kg Dimensions (L x H x D) 82 x 52 x 22.4 mm Operating temperature 0°C~40°C Storage temperature -40°C~70°C Operating humidity 10%~90% RH non-condensing Storage humidity 5%~90% RH non-condensing Power supply 5 V D...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-3E0105P-E
DS-3E0105P-E 4-ports 100Mbps Unmanaged PoE Switch IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant 4 x 10/100Mbps Auto-MDIX PoE ports Provides up to 30 watts per PoE port PoE power budget 58W 4 kV surge protection for PoE ports IEEE 802.3x flow control support Plug-and-play installation 1 Gbps switching fabric 448 Kbits RAM Data Buffer 1K MAC address entries Sturdy metal enclosure Features Overview DS-3E0105P-E is an 4 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc. NO. Description 1 PWR 2 POE-MAX 3 EXTEND 4 LINK/ACT 5 POE STATUS 6 PoE PORT 7 UPLINK 8 N/A 1 2 3 5 6 7 4 8 Model DS-3E0105P-E Ports Network Ports 5 ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 1-5
DS-3E0105P-E(B)
DS-3E0105P-E/M(B) 100M PoE Switch * 4 x 100M PoE ports and 1 x 100M Ethernet port. * Supports IEEE802.3at/af. * Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x. * Supports high priority ports. * Supports 8-core power supply. * Up to 250 m transmission distance. * PoE port with 6 KV surge protection. * Supports PoE output power management. * 100M network access. * Wire-speed forwarding and non-blocking design. * Store-and-forward switching. * Solid high-strength metal shell. * Fan-free design with high reliability. Feature and Function DS-3E0105P-E/M(B) is a layer 2 100M PoE switch. Based on wire-speed forwarding, the switch supports PoE power supply and extend mode. The power supply distance reaches as long as 250 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports. Model DS-3E0105P-E/M(B) Network parameters Port number 4 x 100M PoE ports, 1 x 100M Ethernet port. Port type RJ45 port, Full duplex, MDI/MDI-X adaptive Standard IEEE802.3, IEEE802.3u, IEEE802.3x Processing type Store-and-forward switching ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 101-500

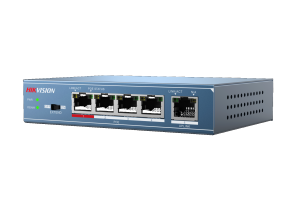

DS-3E0105P-E/M
DS-3E0105P-E 4-ports 100Mbps Unmanaged PoE Switch IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant 4 x 10/100Mbps Auto-MDIX PoE ports Provides up to 30 watts per PoE port PoE power budget 58W 4 kV surge protection for PoE ports IEEE 802.3x flow control support Plug-and-play installation 1 Gbps switching fabric 448 Kbits RAM Data Buffer 1K MAC address entries Sturdy metal enclosure Features Overview DS-3E0105P-E is an 4 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc. NO. Description 1 PWR 2 POE-MAX 3 EXTEND 4 LINK/ACT 5 POE STATUS 6 PoE PORT 7 UPLINK 8 N/A 1 2 3 5 6 7 4 8 Model DS-3E0105P-E Ports Network Ports 5 ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 51-100
DS-3E0105P-E/M(B)
DS-3E0105P-E/M(B) 4-Port 100 Mbps Long-Range Unmanaged PoE Switch * 4 x 100 Mbps PoE ports, and 1 x 100 Mbps Ethernet port. * IEEE 802.3at/af standard. * IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard. * High priority ports. * 8-core power supply. * Up to 250 m transmission distance. * 6 KV surge protection for PoE ports. * PoE power management. * 100 Mbps network access. * Wire-speed forwarding and non-blocking design. * Store-and-forward switching. * Solid high-strength metal shell. * Reliable fan-free design. Feature and Function DS-3E0105P-E/M(B) is a layer 2 100 Mbps PoE switch. Based on wire-speed forwarding, the switch supports PoE power supply and extend mode. The power supply distance reaches as long as 250 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports. Model DS-3E0105P-E/M(B) Network parameters Port number 4 x 100 Mbps PoE ports, 1 x 100 Mbps Ethernet port Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store-and-forw...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
DS-3E0106HP-E
DS-3E0106HP-E 4-Port 100 Mbps Long-Range Unmanaged PoE Switch Feature and Function • 1 x 10/100 Mbps Hi-PoE port, 3 x 10/100 Mbps PoE ports, and 2 x 10/100 Mbps RJ45 ports. • IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W port power). • IEEE 802.3at/af standard for PoE ports. • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 250 m in extend mode. Hi-PoE camera can reach up to 150 m. • High priority ports. • PoE power management. • Dual uplink network design. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. DS-3E0106HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 x 10/100 Mbps Hi-PoE port, 3 x 10/100 Mbps PoE ports, and 2 x 10/100 Mbps RJ45 ports. The switches provide advanced Hi-PoE/PoE technology and support extend mode with long-range access up to 250 m. The prior and stable transmission of the important surveillance area videos can also be guaranteed when connected to the high priority ports. Meanwhile, the 2 x 10...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
DS-3E0106P-E/M
DS-3E0106P-E/M 4-Port Unmanaged PoE Switch Key Feature • 4 x 10/100Mbps PoE ports, and and 2 x 10/100Mbps RJ45 ports. • IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output). • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. • 6 KV surge protection for PoE ports. • Up to 300 m long-range transmission. • Wire-speed forwarding. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. DS-3E0106P-E/M switches are layer 2 unmanaged PoE switches, providing advanced PoE power supply technology on the basis of high-performance access to ensure stable data upload. The switches support long range function. Specification Model DS-3E0106P-E/M Network parameters Port number 4 x 10/100Mbps PoE ports, and and 2 x 10/100Mbps RJ45 ports Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store-and-forward switching Working mode Standard mode (default), Extend mode High priority ports Ports 1 and 2 Ports for long-distance transmission Ports 1 to 4 MAC addre...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
DS-3E0108D-E
DS-3E0108D-E 10/100 Mbps Ethernet Switch * DS-3E0108D-E: 8 x 10/100 Mbps adaptive Ethernet ports * Support ADI/ADIX * Store-and-forward switching * Support MAC address auto-learning and aging * Simple and mini exquisite body * Support desktop and wall-mounting * Plug & play, and easy to use Feature and Function DS-3E0108D-E provides 8 x 10/100 Mbps Ethernet ports which support line speed forwarding. With simple and mini exquisite body, the switch is plug and play and easy to use, suitable for home, school, dormitory, office, small monitoring and other simple network environments. Model DS-3E0108D-E Network parameters Port number 8 Port type 10/100 Mbps RJ45 ports Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store and forward MAC address table 1 K Switching capacity 1.6 Gbps Packet forwarding rate 1.1904 Mpps General Shell ABS Weight 0.041 kg Dimensions (L x H x D) 124 x 59 x 23.2 mm Operating temperature 0°C~40°C Storage temperature -40°C~70°C Operating humidity 10%~90% RH non-condensing Storage humidity 5%~90% RH non-condensing Power supply ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-3E0109P-E(C)
DS-3E0109P-E/M(B) 100M PoE Switch * 8 x 100M PoE ports and 1 x 100M Ethernet port. * Supports IEEE802.3at/af. * Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x. * Supports high priority ports. * Supports 8-core power supply. * Up to 250 m transmission distance. * PoE port with 6 KV surge protection. * Supports PoE output power management. * 100M network access. * Wire-speed forwarding and non-blocking design. * Store-and-forward switching. * Solid high-strength metal shell. * Fan-free design with high reliability. Feature and Function DS-3E0109P-E/M(B) is a layer 2 100M PoE switch. Based on wire- speed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 250 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports. Model DS-3E0109P-E/M(B) Network parameters Port number 8 x 100M PoE ports, 1 x 100M Ethernet port. Port type RJ45 port, Full duplex, MDI/MDI-X adaptive Standard IEEE802.3, IEEE802.3u, IEEE802.3x Processing type Store-and-forward sw...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 101-500
DS-3E0109P-E/M(B)
DS-3E0109P-E/M(B) 100M PoE Switch * 8 x 100M PoE ports and 1 x 100M Ethernet port. * Supports IEEE802.3at/af. * Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x. * Supports high priority ports. * Supports 8-core power supply. * Up to 250 m transmission distance. * PoE port with 6 KV surge protection. * Supports PoE output power management. * 100M network access. * Wire-speed forwarding and non-blocking design. * Store-and-forward switching. * Solid high-strength metal shell. * Fan-free design with high reliability. Feature and Function DS-3E0109P-E/M(B) is a layer 2 100M PoE switch. Based on wire- speed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 250 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports. Model DS-3E0109P-E/M(B) Network parameters Port number 8 x 100M PoE ports, 1 x 100M Ethernet port. Port type RJ45 port, Full duplex, MDI/MDI-X adaptive Standard IEEE802.3, IEEE802.3u, IEEE802.3x Processing type Store-and-forward sw...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000

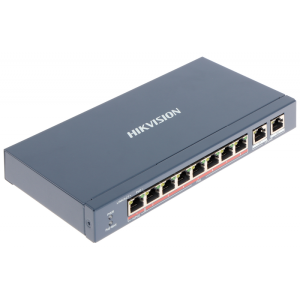

DS-3E0310HP-E
DS-3E0310HP-E 8-Port 100 Mbps Long-Range PoE Switch Feature and Function • 1 x 10/100 Mbps HiPoE port, 7 x 10/100 Mbps PoE ports, and 2 x 10/100/1000 Mbps RJ45 ports. • IEEE 802.3at/af/bt standard for HiPoE port (Max. 60 W port power). • IEEE 802.3at/af for PoE ports. • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z. • PoE port with 6 KV surge protection. • AF/AT camera can reach up to 250 m in extend mode. HiPoE camera can reach up to 150 m. • PoE output power management. • Dual uplink network design. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Fan-free design with high reliability. DS-3E0310HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 x 10/100 Mbps HiPoE port, 7 x 10/100 Mbps PoE ports, and 2 x 10/100/1000 Mbps RJ45 ports. The switches provide advanced HiPoE/PoE technology and supports extend mode with long-range access up to 250 m. Meanwhile, the 2 x 10/100/1000 Mbps RJ45 uplink ports guarantee applications of multiple network solutions. Specification Model DS-3E0310HP-E...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
DS-3E0318P-E
DS-3E0318P-E 16-ports 100Mbps Unmanaged PoE Switch IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant 16x10/100Mbps Auto-MDIX PoE ports Provides up to 30 watts per PoE port Supports PoE power up to 230W for all PoE ports 4 KV surge protection for PoE ports IEEE 802.3x flow control support Plug-and-play installation 7.2 Gbps switching fabric 2.75 Mbits RAM Data Buffer 4K MAC address entries Sturdy metal enclosure Limited lifetime warranty Features Overview DS-3E0318P-E is an 16 10/100Mbps ports unmanaged switch that requires no conguration and provides 16 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc. NO. Description 1 LEDs 2 Extend mode 3 PoE port 4 Uplink ports 5 SFP ports 1 2 5 4 3 Model DS-3E0318P-E Ports Network Ports 18...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 1-5
DS-3E0326P-E
DS-3E0326P-E 24-Port 100 Mbps Unmanaged PoE Switch • Optional 820 ft (250 m) Extended Transmission Mode • 24 x 10/100 Mbps Auto-MDIX Ports • IEEE 802.3at/af PoE Compliant • Up to 30 W per PoE Port, PoE Power Budget 370 W • 4 kV Surge Protection • IEEE 802.3x Flow Control Support • Plug-and-Play Installation • 8.8 Gbps Switching Fabric • 2.75 Mbits RAM Data Buffer • 4K MAC Address Entries • Sturdy Metal Enclosure DS-3E01318P-E is a 10/100 Mbps unmanaged switch that requires no configuration and provides 24 PoE (Power over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices. In these situations, electrical power is transmitted alongside data in one single cable, allowing network expansion where there are no power lines or outlets, for devices such as IP cameras, IP phones, etc. Available Models: DS-3E0326P-E Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • H...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-3E0326P-E/M(B)
DS-3E0326P-E/M(B) 24-Port 100 Mbps Long-Range Unmanaged PoE Switch DS-3E0326P-E/M(B) switch is a layer 2 long-range PoE switch, providing 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP fiber optical port. The switch provides advanced PoE technology and supports extend mode with long-range access up to 250 m. The prior and stable transmission of the important surveillance area videos can also be guaranteed when connected to the high priority ports. The switch is reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, it is applicable for access or aggregation and upload of small-scale LAN devices. Feature and Function • 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP fiber optical port. • IEEE 802.3at/af standard. • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. • High priority ports. • 8-core power supply. • Up to 250 m transmission distance. • 6 KV surge protection for PoE ports. • PoE power management. • 1000 Mbps network access. • Wire-speed forwarding and non-blocking design. • Store-and-forwa...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-3E0505-E
DS-3E0505-E 5-Port Gigabit Unmanaged Ethernet Switch DS-3E0505-E switch is a layer 2 Gigabit Ethernet switch, providing 5 x Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices. Feature and Function • 5 x Gigabit Ethernet ports. • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. • 1000 Mbps network access. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. Specification Model DS-3E0505-E Network parameters Port number 5 x Gigabit Ethernet ports Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store-and-forward switching MAC address table 2 K Switching capacity 10 Gbps Packet forwarding rate 7.44 Mpps Internal cach...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 6-10
DS-3E0505D-E
DS-3E0505D-E 10/100/1000 Mbps Ethernet Switch * DS-3E0505D-E: 5 x 10/100/1000 Mbps adaptive Ethernet ports * Support ADI/ADIX * Store-and-forward switching * Support MAC address auto-learning and aging * Simple and mini exquisite body * Support desktop and wall-mounting * Plug & play, and easy to use Feature and Function DS-3E0505D-E provides 5 x 10/100/1000 Mbps Ethernet ports which support line speed forwarding. With simple and mini exquisite body, the switch is plug and play and easy to use, suitable for home, school, dormitory, office, small monitoring and other simple network environments. Model DS-3E0505D-E Network parameters Port number 5 Port type 10/100/1000 Mbps RJ45 ports Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Forwarding mode Store and forward MAC address table 2 K Switching capacity 10 Gbps Packet forwarding rate 7.44 Mpps General Shell ABS Weight 0.03 kg Dimensions (L x H x D) 92.8 x 65.8 x 22.8 mm Operating temperature 0°C~40°C Storage temperature -40°C~70°C Operating humidity 10%~90% RH non-condensing Storage humidity ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000

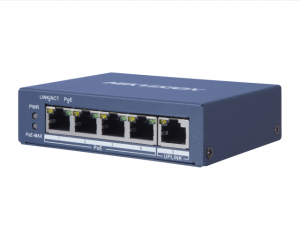

DS-3E0505HP-E
DS-3E0505HP-E 5-Port Gigabit Unmanaged Hi-PoE Switch Key Feature • 3 x gigabit PoE ports, 1 x gigabit Hi-PoE port and 1 x gigabit RJ45 port. • IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output). • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output). • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standard. • 6 KV surge protection for PoE ports. • Up to 300 m long-range transmission. • PoE watchdog to auto detect and restart the cameras that do not respond. • Port isolation to improve network security. • Gigabit network access design. • Wire-speed forwarding. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. DS-3E0505HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of high- performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function. Specification Model DS-3E0505HP-E Network parameters Port number 3 x gigabit PoE ports, 1 x gigabit Hi-PoE ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 501-1000
DS-3E0505P-E
DS-3E0505P-E 4-Port Gigabit Unmanaged PoE Switch Feature and Function • 4 x gigabit PoE ports, and 1 x gigabit RJ45 port. • IEEE 802.3at/af standard. • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard. • PoE port with 6 KV surge protection. • PoE output power management. • Gigabit network access. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Fan-free design with high reliability. DS-3E0505P-E switches are layer 2 gigabit unmanaged PoE switches, providing 4 gigabit PoE ports, and one 10/100/1000 Mbps RJ45 port. The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all gigabit ports guarantee stable transmission of data. Specification Model DS-3E0505P-E Network parameters Port number 4 x gigabit PoE ports, and 1 x gigabit RJ45 port Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z Forwarding mode Store-and-forward switching MAC address table 2 K Switching cap...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 101-500
