SFP-Module
HK-SFP-1.25G-1310-DF-MM
Single Power Supply 3.3V Small Form Factor Pluggable (SFP) MSA Compatible Duplex LC Connector Hot Pluggable Capability Compliant With ROHS Standard Cost effective SFP solution, enables higher port densities and greater bandwidth Support 1.25G Ethernet Features and Functions HK-SFP-1.25G Series SFP Module Item HK-SFP-1.25G-1310-DF-MM Fiber type MMF, duplex fiber, 62.5/125um Connector LC Date Rate 1250 Mbps Connector quantity 2 Distance 0~1km Wavelength Tx1310nm/Rx1310nm TX Power -9~-3dBm RX Sens(Max.) -20dBm Operating temperature 0~70˚C Storage temperature -40～85˚C Relative humidity 30～80% Power supply voltage DC 3.3V Specifications Typical applications Mechanical (mm)...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 501-1000
HK-SFP-1.25G-20-1310
1.25Gbps Single Mode BIDI SFP Transceiver HK-1.25G-20-1310 -1- Features a. Single Power Supply 3.3V b. Small Form Factor Pluggable (SFP) MSA Compatible c. Single Fiber Bi-Direc tion LC Connector d. Hot Pluggable Capability e. Compliant With ROHS Standard Applications a. Fiber Channel b. Gigabit Ethernet c. Switch to Switch Interface Absolute maximum ratings Parameter Symbol Min. Max. Unit Storage Temperature T S -40 +85 ℃ Supply Voltage V CC -0.5 +3.6 V Voltage at any Input Pin V IN 0 Vcc V Power supply current I CC - 300 mA Recommended Operating Conditions Parameter Symbol Min. Typ Max. Unit Operating Temperature T op1 0 - +70 ℃ T op2 -40 - +85 Supply Voltage V CC 3.1 3.3 3.5 V Data Rate - - 1250 - Mb/s Operating Conditions TransmitterT=25℃, V CC =3.1~3.5V) Parameter Symbol Min. Typ. Max. Unit Central Wavelength λ C 1280 1310 1360 nm 1480 1490 1500 1520 1550 1580 Spectral Width Δλ DFB@-20dB - - 1 nm ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

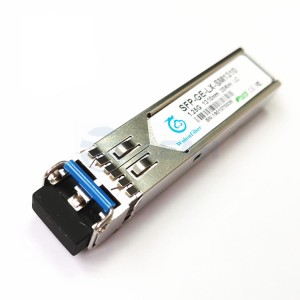

HK-SFP-1.25G-20-1310-DF
Single Power Supply 3.3V Small Form Factor Pluggable (SFP) MSA Compatible Duplex LC Connector Hot Pluggable Capability Compliant With ROHS Standard Cost effective SFP solution, enables higher port densities and greater bandwidth Support 1.25G Ethernet Features and Functions HK-SFP-1.25G Series SFP Module Item HK-SFP-1.25G-20-1310-DF Fiber type SMF, duplex fiber, 9/125um Connector LC Date Rate 1250 Mbps Connector quantity 2 Distance 0~20km Wavelength Tx1310nm/Rx1310nm TX Power -6~-1dBm RX Sens(Max.) -21dBm Operating temperature 0~70˚C Storage temperature -40～85˚C Relative humidity 30～80% Power supply voltage DC 3.3V Specifications Typical applications Mechanical (mm)...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 101-500
HK-SFP-1.25G-20-1550
1.25Gbps Single Mode BIDI SFP Transceiver HK-1.25G-20-1310 -1- Features a. Single Power Supply 3.3V b. Small Form Factor Pluggable (SFP) MSA Compatible c. Single Fiber Bi-Direc tion LC Connector d. Hot Pluggable Capability e. Compliant With ROHS Standard Applications a. Fiber Channel b. Gigabit Ethernet c. Switch to Switch Interface Absolute maximum ratings Parameter Symbol Min. Max. Unit Storage Temperature T S -40 +85 ℃ Supply Voltage V CC -0.5 +3.6 V Voltage at any Input Pin V IN 0 Vcc V Power supply current I CC - 300 mA Recommended Operating Conditions Parameter Symbol Min. Typ Max. Unit Operating Temperature T op1 0 - +70 ℃ T op2 -40 - +85 Supply Voltage V CC 3.1 3.3 3.5 V Data Rate - - 1250 - Mb/s Operating Conditions TransmitterT=25℃, V CC =3.1~3.5V) Parameter Symbol Min. Typ. Max. Unit Central Wavelength λ C 1280 1310 1360 nm 1480 1490 1500 1520 1550 1580 Spectral Width Δλ DFB@-20dB - - 1 nm ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
PFT3950
MULTI-MODE MODULE Optical modules complying with SFP (Small Form-factor Pluggable) standard are devices converting electrical signal to the optical form and optical signal to the electrical form. Usage media converters with the ability to exchange SFP modules is particularly preferred because of its versatility, for example if you change the network confguration rather than replace the entire unit or add new media converters simply select the appropriate SFP module. Modules complying with most of switches and routers with SFP socket. SPECIFICATION Transmission protocols : IEEE 802.3u 100Base-FX Fiber type : Multi-mode fber Maximal transmission range : 0.5 km Transfer rate : max. 1.25 Gb/s Number of used fbers : 2 Optical connectors : 2 x LC Light source / optica...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 1-5
PFT3960
Transmission - Accessory | SFP Modules us.dahuasecurity.com •Single-mode and Multi-mode LC Connectors •Maximum Transmission Distance of 20 km (12.43 miles) •Maximum Data Rate of 1.25 Gbps •Wide Operating Temperature Range: –40°C to 85°C (–40°F to 185°F) SFP Fiber Modules For Use with Network PoE Switches Technical Specification Model NumberData InterfaceData RateConnectorWavelengthMaximum Distance PFT3900 Ethernet 155 Mbps Multi-mode LC Transmit: 850 nm Receive: 850 nm 2 km (1.24 miles) PFT3910 Ethernet 155 Mbps ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
PFT3970
Transmission - Accessory | SFP Modules us.dahuasecurity.com •Single-mode and Multi-mode LC Connectors •Maximum Transmission Distance of 20 km (12.43 miles) •Maximum Data Rate of 1.25 Gbps •Wide Operating Temperature Range: –40°C to 85°C (–40°F to 185°F) SFP Fiber Modules For Use with Network PoE Switches Technical Specification Model NumberData InterfaceData RateConnectorWavelengthMaximum Distance PFT3900 Ethernet 155 Mbps Multi-mode LC Transmit: 850 nm Receive: 850 nm 2 km (1.24 miles) PFT3910 Ethernet 155 Mbps ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 1-5
