Medienkonverter

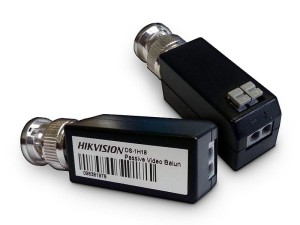

DS-1H18
DS-1H18 Series TVI Transmission Overview DS-1H18 is a passive high definition transmitter, small size and easy installation, transmission distance of color signal up to 200m, it is very suitable for middle distance video surveillance, such as office building, community, school and hospital etc. Available Models DS-1H18 Product Terminal and Dimension Introduction (1): VIDEO IN (2): VIDEO +(UTP Cable) (3): VIDEO - (UTP Cable) Product Installation Instructions ◆ Connect the video signal to BNC terminal of transmitter. ◆ Selected a pair of UTP Cable (must be same color) connect to the transmitter VIDEO +/- port and receiver VIDEO +/- port ◆ Connect the video signal of receiver to display device. Specifications Bandwidth DC0 to 60MHz Impedance 75Ω to 100Ω Differential Gain < 2% Differential Phase < 2° Connectors BNC to Spring compression wire terminals Temperature Operating: -25° to 70° C Humidity < 95%...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 11-50
DS-1H18S
DS-1H18 Series TVI Transmission Overview DS -1H18 is a passive high definition transmitter, small size and easy installation, transmission distance of color signal up to 200m, it is very suitable for middle distance video surveillance, such as office building, community, school and hospital etc. Available Models DS -1H18 Product Terminal and Dimension Introduction (1): VIDEO IN (2): VIDEO +(UTP Cable) (3): VIDEO - (UTP Cable) Product Installation Instructions ◆ Connect the video signal to BNC terminal of transmitter. ◆ Selected a pair of UTP Cable (must be same color) connect to the transmitter VIDEO +/- port and receiver VIDEO +/- port ◆ Connect the video signal of receiver to display device. Specifications Bandwidth DC0 to 60MHz Impedance 75 to 100 Differential Gain < 2% Differential Phase < 2 Connectors BNC to Spring compression wire terminals Temperature...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1H18S/E(B)
DS-1H18S/E(B) HD Video Balun Real-time transmission over UTP cat5e/6 Compatible with all HD-TVI/CVI/AHD/CVBS analog camera Low crosstalk and noise suppressions Male BNC connector Built-in solid state TVS (Transient Voltage Suppressor) for surge protection Wave Filter Design, Anti-Static Design Power and video signals transmit over one twist pair cable 60 dB crosstalk and noise immunity Exceptional interference rejection ABS engineering plastic housing Compatible with HD-TVI, HD-CVI, AHD and CVBS Features and Functions The DS-1H18S/E(B) video balun is a passive device that allows the transmission of real-time CCTV HD video signal and power via cost-effective Unshielded Twisted Paired (UTP) cable Model DS-1H18S/E(B) Transmission Signal 1 channel Category Type UTP CAT 5E/ 6 (R<100Ω/100M) Coaxial Video Connector BNC-M Twisted-pair Video Connector Tool-less push-pin terminal block Compatible Format HD-TVI/CVI/AHD/CVBS Resolution 720P/960P/1080P/3MP/4MP/5MP/8MP Ant-interference >60db 1a contact discharge electricity level3 1b air discharge electricity level3 Per: IEC61000-4...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1H18S/E(C)
DS - 1H18S / E(B) HD Video Balun Real-time transmission over UTP cat5e/6 Compatible with all HD-TVI/CVI/AHD/CVBS analog camera Low crosstalk and noise suppressions Male BNC connector Built-in solid state TVS (Transient Voltage Suppressor) for surge protection Wave Filter Design, Anti-Static Design Power and video signals transmit over one twist pair cable 60 dB crosstalk and noise immunity Exceptional interference rejection ABS engineering plastic housing Compatible with HD-TVI, HD-CVI, AHD and CVBS Features and Functions The DS-1H18S/E(B) video balun is a passive device that allows the transmission of real-time CCTV HD video signal and power via cost-effective Unshielded Twisted Paired (UTP) cable Model DS-1H18S/E(B) Transmission Signal 1 channel Category Type UTP CAT 5E/ 6 (R<100Ω/100M) Coaxial Video Connector BNC-M Twisted-pair Video Connector Tool-less push-pin terminal block Compatible Format HD-TVI/CVI/AHD/CVBS ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
DS-1H18S/E-E
DS-1H18S/E-E HD Video Balun Screw interface with cable and without cable Mini size for easy installation ABS outer shell for convenient to use in intensive project No power required, and simplified project wiring Plug and play, real-time transmit CCTV HD video signal, and high quality and stable video Compatible with HDTVI/HDCVI/AHD Transmission distance: non-POC Camera: Max. 200m. Superior anti-interference and lighting protection and ESD Features and Functions Model DS-1H18S/E-E Properties Transmission Signal 1 channel Transmission Distance Non-POC Camera: Max 200m Category Type UTP CAT 5E/ 6 (R<100Ω/100M) Video Transmission Properties and Port Coaxial Video Connector BNC-M Twisted-pair Video Connector Screw Interface Compatible Format HDTVI/HDCVI/AHD Resolution 720P/1080P/3MP/4MP/5MP Ant-interference >60db Protection ESD 1a contact discharge electricity level3 1b air discharge electricity level3 Per: IEC61000-4-2 Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5 UTP Cable Connector 2KV(different-code), ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
LR1002
LR1002 Product Overview LR1002 is designed to work as a type of converter from RJ45 to BNC port, which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port. The product is equipped with two transmission modes which are 100Mbps and 10Mbps. www.dahuasecurity.com Features · Supports IEEE802.3, IEEE802.3u standards · Port: 1*RJ45 10/100Mbps, 1*BNC · Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps · Supports MDI/MDIX self-adaption · Supports long range power supply transmission via coaxial cable LR1002 EoC Passive Converter Technical Specification ModelLR1002 Function Port 1*10/100 Mbps Base-TX 1*BNC Power Consumption<1W Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps PoE Protocol - (Based on the power input from the ePoE switch) Network StandardIEEE802.3, IEEE802.3u Lightning Protection Common Mode 6KV Differential Mode 2KV Operating Temperature-40°C-60°C Operating Humidity0%~95% Weight28.3g Dimension (WxDxH)56mmx27mmx21mm Cable Length (m) Communication Bandwidth (Mbps) PoE Max Load Capacity (...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 501-1000
PFM700-E
Video Extender Series | PFM700-E www.dahuasecurity.com PFM700-E HDMI Extender Features * Power supply: Input voltage DC5V, only supply for transmitter. * Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference. * Transmission distance: HDMI transmission distance 60m (max.196.85ft). * Infrared function: support to transmit one-way infrared remote control signal. * Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID. * Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities. * Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install. Video Extender Series | PFM700-E www.dahuasecurity.com Technical Specifications Model PFM700-E Properties Transmission Signal 1channel HDMI Transmission Distance 60m(max)(196.85ft) Video Transmission Properties Video Signal Input Interface HDMI interface Vi...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

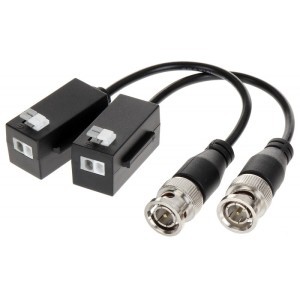

PFM800-4K
www.dahuasecurity.com Features · Real-time transmission over UTP CAT5E/6 cable; · Passive, no need for power supply; · Excellent anti-thunder, anti-static and anti-interference capabilities; · Compatible format: HDCVI/TVI/AHD/CVBS; · With female BNC connector, and pluggable screw terminal connections. HDCVI Accessory Series | DH-PFM800-4K DH-PFM800-4K 1-CH Passive Video Balun HDCVI Accessory Series | DH-PFM800-4K www.dahuasecurity.com Technical Specification ModelDH-PFM800-4K Properties Transmission Signal1-CH Network cable TypeUTP CAT5E/6 (material: CU) Transmission Properties HDCVI 720P : max.400m (1312.34ft) 1080P : max.250m (820.21ft) 4M/6M/4K : max.200m (656.17ft) TVI 720P : max.400m (1312.34ft) 1080P : max.250m (820.21ft) 4M/5M : max.200m (656.17ft) AHD 720P : max.400m (1312.34ft) 1080P : max.250m (820.21ft) 4M/5M : max.200m (656.17ft) Video Transmission Properties Coaxial Video ConnectorBNC-M Connection WayRJ45 Compatible FormatHDCVI/TVI/AHD/CVBS Resolution720P/1080P/4MP/5MP/4K Protection ESD 1a contact discharge electricity level 3 1b air discharge electricity...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
PFM800B-4K
www.dahuasecurity.com Features · Real-time transmission over UTP CAT5E/6 cable; · Passive, no need for power supply; · Excellent anti-thunder, anti-static and anti-interference capabilities; · Compatible format: HDCVI/TVI/AHD/CVBS; · With female BNC connector, and pluggable screw terminal connections. HDCVI Accessory Series | DH-PFM800B-4K DH-PFM800B-4K 1-CH Passive Video Balun HDCVI Accessory Series | DH-PFM800B-4K www.dahuasecurity.com Technical Specification ModelDH-PFM800B-4K Properties Transmission Signal1-CH Network cable TypeUTP CAT5E/6 (material: CU) Transmission Properties HDCVI 720P : max.400m (1312.34ft) 1080P : max.250m (820.21ft) 4M/6M/4K : max.200m (656.17ft) TVI 720P : max.400m (1312.34ft) 1080P : max.250m (820.21ft) 4M/5M : max.200m (656.17ft) AHD 720P : max.400m (1312.34ft) 1080P : max.250m (820.21ft) 4M/5M : max.200m (656.17ft) Video Transmission Properties Coaxial Video ConnectorBNC-M Connection WayRJ45 Compatible FormatHDCVI/TVI/AHD/CVBS Resolution720P/1080P/4MP/5MP/4K Protection ESD 1a contact discharge electricity level 3 1b air discharge el...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
PFM801-4MP
HDCVI Accessory Series | PFM801-4MP www.dahuasecurity.com PFM801-4MP 1 Channel Passive HDCVI Balun with Power Features * Power supply: Input voltage DC24-36V, can provide DC12V 8W(max) power supply to remote cameras, simplify engineering wiring. * Transmission effect: Real-time transmission video, no delay, strong anti-interference. * Transmission distance: 400m (max). * Main functions: Use single UTP (CAT-5E and CAT-6) real-time transmit 1-ch HD video signal and 1-ch DC power. * Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities. * Appearance structure: ABS engineering plastics shell, small size, use RJ45 standard interface connection mode. HDCVI Accessory Series | PFM801-4MP www.dahuasecurity.com Technical Specifications Model PFM801-4MP Properties Transmission Signal 1 channel Transmission Distance HDCVI: 720P: max.400m(1312.34ft); 1080P: max. 250m(820.21ft); 4MP: max. 200m(656.17ft) Power Supply Input Voltage Distance Output Power DC24 0-100m DC12V 8W 100-200m DC12V 6...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 11-50
PFM809-4MP
HDCVI Accessory Series | PFM809-4MP www.dahuasecurity.com PFM809-4MP 16-Channel Passive HDCVI Balun Features * Power supply: No need additional power supply; * Transmission effect: Real-time transmission HDCVI video signal without compression, video is clear and stable; * Transmission distance: 0~400m (with passive transmitter); * Main functions: Use 4 wires meanwhile to transmit 16-ch video signal; * Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities; * Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair cable interface. HDCVI Accessory Series | PFM809-4MP www.dahuasecurity.com Technical Specifications Model PFM809 Properties Transmission Signal 16-channel Transmission Distance HDCVI: 720P: max. 400m(1312.34ft) 1080P: max. 250m(820.21ft) 4MP: max. 200m(656.17ft) Category Type UTP CAT5E/6 Video Transmission Properties Coaxial Video Connector BNC Connection Way Spring loaded Compat...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 51-100
PV-BTA02
PV -BT A02 2018-08-15 Adapter złącza BNC na RJ45 do extenderów sieci Ethernet Strona w przygotowaniu. PDFCROWD.COM...
Garantie: 12 mon.
Datentabelle
Verfügbarkeit: 101-500
PV-EC904R
PV -EC904R 2018-08-15 Extender sieci Ethernet przez koncentryk, 4xBNC, dane i zasilanie w kablu Strona w przygotowaniu. PDFCROWD.COM...
Garantie: 12 mon.
Datentabelle
Verfügbarkeit: 101-500
PV-EC945
PV -EC945 2018-08-15 Extender sieci Ethernet przez koncentryk, 1xBNC, dane i zasilanie w kablu, wyjście PoE lub 12VDC Strona w przygotowaniu. PDFCROWD.COM...
Garantie: 12 mon.
Datentabelle
Verfügbarkeit: 101-500
