Kabel
DS-1LC1SCA-200B
DS-1LC1SCA-200B Coaxial Cable 200m RG59 coaxial cable Conductor material is OFC(Oxygen Free Copper) Braiding material is CCA(Copper-clad Aluminum) VW-1 flame retardant rating Excellent anti-interference performance Excellent anti-aging performance Features and Functions Model DS-1LC1SCA-200B Coaxial Cable Conductor Material OFC(Oxygen Free Copper) Wire Gauge 20AWG Diameter 0.81±0.01mm Insulation Material FPE Diameter 3.66±0.05mm Tape Material Shielding Aluminum Foil, 15mmwidth Thickness 0.04mm Braid Material CCA(Copper-clad Aluminum) Braiding Standard 8*16*0.12mm Braiding Density 95±1% Jacket Material PVC Average Thickness ≥0.65mm Diameter 6.10±0.2mm Impedance 75ohms General Length 200m Color Black Operating Temperature -40-80ºC Storage Temperature -20-70ºC Weight Dimensions (...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1LC1SCA2C-200B
DS-1LC1SCA2C-200B Coaxial Cable with power cable 200m RG59 coaxial cable with power cable Conductor material of Coaxial cable is OFC(Oxygen Free Copper) Braiding material of Coaxial cable is CCA(Copper-clad Aluminum) Conductor material of power cable is OFC(Oxygen Free Copper) VW-1 flame retardant rating Excellent anti-interference performance Excellent anti-aging performance Features and Functions Model DS-1LC1SCA2C-200B Coaxial Cable Conductor Material OFC(Oxygen Free Copper) Wire Gauge 20AWG Diameter 0.81±0.01mm Insulation Material FPE Diameter 3.66±0.05mm Tape Material Shielding Aluminum Foil, 15mmwidth Thickness 0.04mm Braid Material CCA(Copper-clad Aluminum) Braiding Standard 8*16*0.12mm Braiding Density 95±1% Jacket Material PVC Average Thickness ≥0.65mm Diameter 6.10±0.2mm Impedance 75ohms ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
DS-1LN5E-E/E
HIKVISION TECHNICAL DATA SHEET Form Edition：A/1 1 of 1 Effective Date of Form：2017-7-25 U/UTP 4Pairs cable-category5E-PVC Sheath P/N: HK-1191-C5E-003-01 Content of the Data Sheet HIKVISION E484059-Z CMX (UL) 4PR 24AWG 75℃ U/UTP CAT5E VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Customer Reference Category U/UTP CAT5E-4P- PVC-CMX Test Standard ISO/IEC11801、TIA-568-C.2 YD/T1019 Conductor Material Solid-Bare Copper Copper content 99.97% Nom.O.D.(mm) 0.450 up +0.005 down -0.005 Insulation Material HDPE Diameter 0.82±0.03mm Sheath Thickness 0.50±0.05 mm Technical Performance(100m): Frequency RL ATT NEXT Phase DELAY (MHz) ≥dB ≤dB ≥dB ≤ns 1 19.0 3.0 60.0 521 4.0 19.0 3.9 54.8 504 8.0 19.0 5.5 50.0 ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
DS-1LN5E-S
HIKVISION TECHNICAL DATA SHEET Form Edition：A/1 1 of 1 Effective Date of Form：2012-12-27 U/UTP 4Pairs cable-category5E-PVC Sheath P/N: HK-1191-C5E-001-03 Content of the Data Sheet HIKVISION E484059-Z CM (UL) 4PR 24AWG 75℃ U/UTP CAT5E VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Customer Reference Category U/UTP CAT5E-4P- PVC-CM Test Standard ISO/IEC11801、TIA-568-C.2 YD/T1019 Conductor Material Solid-Bare Copper Nom.O.D.(mm) 0.500 up +0.005 down -0.005 Insulation Material HDPE Diameter 0.88±0.03mm Sheath Thickness 0.50±0.05 mm Technical Performance(100m): Frequency RL ATT NEXT Phase DELAY (MHz) ≥dB ≤dB ≥dB ≤ns 1 20.0 2.0 65.3 570.00 4.0 23.0 4.1 56.3 552.00 8.0 24.5 5.8 51.8 546.73 10.0 25.0 6.5 50.3 545.38 16.0 25.0 8.2 47.2 543.00 20.0 25.0 9.3 45.8 542.05 25.0 24.3 10.4 44.3 541.20...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 51-100
DS-1LN6-UE-W
HIKVISION TECHNICAL DATA SHEET Form Edition：A/1 1 of 1 Effective Date of Form：2017-7-25 U/UTP 4Pairs cable-category 6- PVC Sheath P/N: HK-1191-C6-005-00 Content of the Data Sheet Sheath Printing HIKVISION E484059-Z (UL) CM 4PR 24AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Customer Reference Category U/UTP CAT6-4P-PVC-CM Test Standard ISO/IEC11801、TIA-568-C.2 、YD/T1019 Conductor Material SOLID-Bare Copper Copper content 99.97% Nom.O.D.(mm) 0.530 up +0.005 down -0.005 Insulation Material HDPE Diameter 0.95±0.03mm Sheath Thickness 0.55±0.05 mm Technical Performance (100m): Frequency RL ATT(20℃) NEXT PHASE DELAY (MHz) ≥dB ≤dB ≥dB ≤ns 1 20.0 2.03 74.3 570.00 4.0 23.0 3.78 65.3 552.00 8.0 24.5 5.32 60.8 546.73 10.0 25.0 5.95 59.3 545.38 16.0 25.0 7.55 56.2 543.00 20.0 25.0 8.47 ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 101-500
DS-1LN6-UU
HIKVISION TECHNICAL DATA SHEET Form Edition：A/1 1 of 1 Effective Date of Form：2012-12-27 U/UTP 4Pairs cable-category 6- PVC Sheath P/N: HK-1191-C6-001-01 Content of the Data Sheet Sheath Printing HIKVISION E484059-Z (UL) CM 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Customer Reference Category U/UTP CAT6-4P-PVC-CM Test Standard ISO/IEC11801、TIA-568-C.2 、YD/T1019 Conductor Material SOLID-Bare Copper Nom.O.D.(mm) 0.565 up +0.005 down -0.005 Insulation Material HDPE Diameter 1.02±0.03mm Sheath Thickness 0.55±0.05 mm Technical Performance (100m): Frequency RL ATT(20℃) NEXT PHASE DELAY (MHz) ≥dB ≤dB ≥dB ≤ns 1 20.0 2.03 74.3 570.00 4.0 23.0 3.78 65.3 552.00 8.0 24.5 5.32 60.8 546.73 10.0 25.0 5.95 59.3 545.38 16.0 25.0 7.55 56.2 543.00 20.0 25.0 8.47 54.8 542.05 25.0 24.3 9.51 53.3 5...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
KPL-040F-VI(green head)
KPL-040F-VI,12V3.33A Key Features 1. DC 12V/3A Power adapter (please order power plug and adapter together) 订货型号 适配器,KPL-040F-VI,桌面型,12V3.33A,40W,Φ2.1; KPL-040F-VI,12V3.33A Specifications Model KPL-040F-VI,12V3.33A General Power 12V 3.33A...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

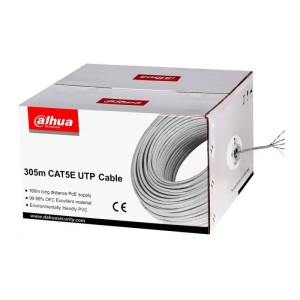

PFM920I-5EUN
Cable Series | DH-PFM920I-5EUN www.dahuasecurity.com DH-PFM920I-5EUN 305m UTP CAT5E Cable Features * 305m UTP CAT5E * Max.160m long distance PoE supply * 99.99% OFC(oxygen free copper) Excellent material * Environmentally friendly PVC Cable Series | DH-PFM920I-5EUN www.dahuasecurity.com Technical Specifications Model DH-PFM920I-5EUN Conductor Material OFC(oxygen free copper) Composition 1/0.45 Wire gauge 0.45*4P±0.005mm Insulation Material HDPE Min. average thickness 0.2mm Diameter 0.83mm±0.03mm Color(4 Pairs) Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown Lay of twisted conductors 140mm Jacket Material PVC Min. average thickness 0.5mm±0.05mm Diameter 4.7mm Color Orange and white are optional Length 305m (1000.66ft) Max. DC resistance of single conductor 12 Ω/100m Max. unbalance rate of line pairs’ direct current resistance 12% Min. insulation resistance 5000MΩ·km Max. mutual capacitance 5.6NF/100m Max. attenuati...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 501-1000

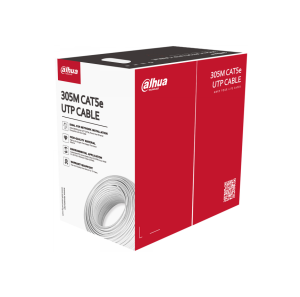

PFM920I-5EUN-C
Cable Series | DH-PFM920I-5EUN-C www.dahuasecurity.com DH-PFM920I-5EUN-C UTP CAT5e Cable Network cables are the most commonly used transmission mediums in generic cabling system. It is usually composed of 4 pairs of twisted wires, and is generally applied in system cabling within 100 meters. Features · 305.0 m (1000 ft)/carton UTP CAT5e, power over Ethernet, compatible with one cable · High-purity Oxygen-Free Copper conductor material · Customized PVC outer sheath; meet CE CPR Eca flame retardant class certified · 10-year warranty Cable Series | DH-PFM920I-5EUN-C Technical Specification Conductor Material Oxygen free copper (99.97% purity) Diameter 0.45 mm ± 0.01 mm Insulation MaterialHDPE Min. Average Thickness0.18 mm Diameter0.83 mm ± 0.06 mm Color (4 Pairs) Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown Rip Cord MaterialPolyester Specification500D Sheath MaterialPVC Min. Average Thickness0.5 mm Diameter5.0 mm ± 0.3 mm ColorWhite Electrical Max. DC Resistance of a Single Conductor12Ω/100 m Min. Insulation Resistance5000MΩ·km Max. DC Resistance Unbalance2% (pair intra), 4% (pairs inte...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

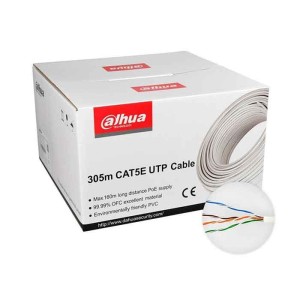

PFM920I-5EUN-C-V2
Cable Series | DH-PFM920I-5EUN www.dahuasecurity.com DH-PFM920I-5EUN 305m UTP CAT5E Cable Features * 305m UTP CAT5E * Max.160m long distance PoE supply * 99.99% OFC(oxygen free copper) Excellent material * Environmentally friendly PVC Cable Series | DH-PFM920I-5EUN www.dahuasecurity.com Technical Specifications Model DH-PFM920I-5EUN Conductor Material OFC(oxygen free copper) Composition 1/0.45 Wire gauge 0.45*4P±0.005mm Insulation Material HDPE Min. average thickness 0.2mm Diameter 0.83mm±0.03mm Color(4 Pairs) Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown Lay of twisted conductors 140mm Jacket Material PVC Min. average thickness 0.5mm±0.05mm Diameter 4.7mm Color Orange and white are optional Length 305m (1000.66ft) Max. DC resistance of single conductor 12 Ω/100m Max. unbalance rate of line pairs’ direct current resistance 12% Min. insulation resistance 5000MΩ·km Max. mutual capacitance 5.6NF/100m Max. attenuati...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

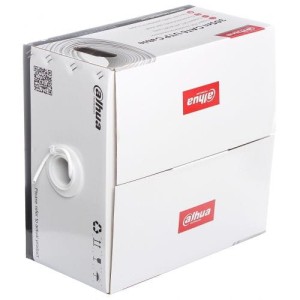

PFM923I-6UN-C
Cable Series | DH-PFM923I-6UN-C www.dahuasecurity.com DH-PFM923I-6UN-C 305m UTP CAT6 LSZH Cable Features * 305m UTP CAT6; * Support PoE long-distance transmission; * Excellent OFC with 99.97% OFC (oxygen free copper) purity; * Environmentally-friendly LSZH outer sheath, meet the CPR E class; * Top-notch quality guarantee for 10 years. Cable Series | DH-PFM923I-6UN-C www.dahuasecurity.com Technical Specifications Model DH-PFM923I-6UN-C Structure Conductor Material OFC(oxygen free copper) Structure 4P*0.53±0.01mm Insulation Material HDPE Min. average thickness 0.21mm Diameter 0.95mm±0.05mm Color(4 Pairs) White/Blue, Blue; White/Orange, Orange; White/Green, Green; White/Brown, Brown Rip Cord Yes Jacket Material LSZH, meet the requirement of CPR E class Min. average thickness 0.43mm Diameter 6.0±0.5mm surface Smooth, full and tight Color White General Length 305m(1000.66ft) Packaging dimension 412mmx412mmx215mm (16.22”x16.22”x8.46”) Weight (with packaging) 12.5kg(27.56lb...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: >1000
