Jumper und elektrische Streiks
DS-K4E100
DS-K4E100 Intelligent Electric Lock Key Feature • Works cooperatively with video intercom system and access control system • Lock status detection • Installs on the left opening door, right opening door, interior door, exterior door and other doors • The door will be automatically locked without people entering after 9 seconds • Working voltage: 12 VDC to 18 VDC, working current < 350 mA, standby current < 25 mA, unlock time 1 s • Working temperature: -20 °C to 60 °C (-4 °F to 122 °F) • Life expectancy (≥ 500,000 times), high switch sensitivity, low power consumption • Lock and unlock testing of intelligent lock 1Unlocked status: the lock tongue does not come out; NC and COM connected, NO and COM disconnected 2Locked status: NC and COM connected, NO and COM disconnected 3Door contact detection: when door is open, the door contact remainly open; when door is closed, the door contact remainly close Specifications ModelDS-K4E100 Dimension (W x H x D)130 mm x 100 mm x 61.25 mm (5.12" x 3.94" x 2.41") Power supplyDC 12V ± 10% Electric current 350 mA (working current) 25 mA (standby current) Working temperature-20 °C to 50 °C (-4 °F to 122 °F) Length of the lock tong...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 0
DS-K4G100
DS-K4G100 Electric Strike Lock The electric strike lock is designed for wooden door, metal door, and PVC door. It can work depending on the thrust or pull producing by the electromagnetism. Available Model DS-K4G100 Key Feature • Fail-secure and fail-safe selectable • Material of latch: US304 stainless steel Material of plate: wire-drawing on the surface • The magnetic lock supports static linear thrust of 800 kg (1764 lb) • 100,000 times usage of the electromagnetic coil when powering on • Depth of the latch groove: 15 mm • Strong suction which protects the door from forced opening when the door is locked • Double insulation Specifications ModelDS-K4G100 Dimension of lock body (L x W x H)165 mm x 43.7 mm x 35 mm (6.5" x 1.7" x 1.4") Material of latchStainless steel Maximum thrust800 kg (1764 lb) Input voltage12 VDC, 320 mA/24 VDC, 160 mA ± 15% Signal Output Dry contact signal output; NO output while locking and NC output while unlocking Suitable doorWooden door, metal door, PVC door Working temperature-10 °C to 55 °C (14 °F to 131 °F) Working humidity0 to 95% (non-condensing) Weight0.4 kg (0.9 lb) Dimension Circuit B...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 0
DS-K4H250D
Spec of DS-K4H250D Double-door Magnetic Lock www.hikvision.com 1 The DS-K4H250D Double-door magnetic lock is designed for wooden door, glass door, and steel door with the opening angle of 90°. The maximum thrust of the lock is 600kg. It can be used for controlling door opening/closing, and the indicator shows the door status. It supports signal output of door lock output status testing. DS-K4H250D The magnetic lock supports static linear thrust of 600kg; The power supply can be customized to be 12VDC or 24VDC, and the default voltage is 12VDC; It is equipped with internal voltage dependent resistor (MOV); It is applied to wooden door, glass door, metal door and fireproof door; LED indicator displays the status of door lock; Signal output of door lock status (NO\NC\COM) Anti-residual magnetism design Abrasion-proof materials; The shell is made up of aldural and is hard anodizing electroplated; No mechanical failure, and the magnetic lock works by electromagnetism force; Model DS-K4H250D Dimension of Lo...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 0
DS-K4H250S
Spec of DS-K4H250SSingle-doorMagnetic Lock www.hikvision.com 1 The DS-K4H250SSingle-door magnetic lock is designed for wooden door, glass door, and steel door with the opening angle of 90°. The maximum thrust of the lock is300kg. It can be used for controlling door opening/closing, and the indicator shows the door status. It supports signal output of door lock output status testing. DS-K4H250S The magnetic lock supports static linear thrust of 300kg; The power supply can be customized to be 12VDC or 24VDC, and the default voltage is 12VDC; It is equipped with internal voltage dependent resistor (MOV); It is applied to wooden door, glass door, metal door and fireproof door; LED indicator displays the status of door lock; Signal output of door lock status (NO\NC\COM); Anti-residual magnetism design; Abrasion-proof materials; The shell is made up ofaldural and is hard anodizing electroplated; No mechanical failure, and the magnetic lock works by electromagnetism force; Model DS-K4H250S Dimension of Lock Body (LxWxH) 240x49x25.5mm (9.45x1.93x...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 51-100
DS-K4H258D
Spec of DS-K4H258D Two-Door Magnetic Lock www.hikvision.com 1 The DS-K4H280D two-door magnetic lock is designed for wooden door, glass door, and steel door with the opening angle of 90°. The maximum thrust of the lock is 280kg(550Lbs)x2. It can be used for controlling door opening/closing, and the indicator shows the door status. DS-K4H258D The magnetic lock supports static linear thrust of 280kg(550Lbs)x2; Default voltage is 12VDC; It is equipped with internal voltage dependent resistor (MOV); It is applied to wooden door, glass door, metal door and fireproof door; LED indicator displays the status of door lock; Anti-residual magnetism design Abrasion-proof materials; The shell is made up of aldural and is hard anodizing electroplated; No mechanical failure, and the magnetic lock works by electromagnetism force; Model DS-K4H258D Dimension of Lock Body (LxWxH) 500x45x25mm (19.7x1.8x1.0") Dimension of Armature Plate (LxWxH) 182x38x12.5mm (7.2x1.5x0.5") Unlock Method Cu...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 0

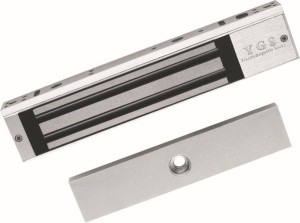

DS-K4H258S
Spec of DS-K4H258-LZ Bracket of Magnetic Lock www.hikvision.com 1 DS-K4H258-LZ LZ-Bracket of Magnetic Lock Adopts aldural material Hard anodizing electroplating operated L-bracket is used for fixing the lock body; Z-bracket is used for fixing the armature plate Suitable for wooden door, and metal door Model DS-K4H258-LZ L-bracket Dimension (LxWxH) 238x30x47mm (9.4x1.2x1.9") Z-bracket Dimension (LxWxH) 185x44x100mm (7.3x1.7x3.9") Suitable Door Wooden Door, and Metal Door Shell Performance Hard Anodizing Electroplated Weight 0.77kg DS-K4H258-LZ MAIN FEATURES SPECIFICATION S Accessary of Magnetic Lock AVAILABLE MODEL INSTALLATION Spec of DS-K4H258-LZ Bracket of Magnetic Lock www.hikvision.com 2...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 501-1000
DS-K4H450D
Spec of DS-K4H450D Double-door Magnetic Lock www.hikvision.com 1 The DS-K4H450D double-door magnetic lock is designed for wooden door, glass door, metal door, and fireproof door. The maximum thrust of the lock is 500 kg. It can be used for controlling door opening/closing, and the indicator shows the door status. It supports signal output of door lock output status testing. DS-K4H450D The magnetic lock supports static linear thrust of 500kg The power supply can be 12VDC or 24VDC + 10% Applies to wooden door, glass door, metal door and fireproof door LED indicator displays the status of door lock Signal output of door lock status DS-K4H450D MAIN FEATURES Double-door Magnetic Lock AVAILABLE MODEL Spec of DS-K4H450D Double-door Magnetic Lock www.hikvision.com 2 Model DS-K4H450D Dimension of Lock Body (L x W x H) 530 mm x 71.8 mm x ...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 0
DS-K4H450S
Spec of DS-K4H450S Single-door Magnetic Lock www.hikvision.com 1 The DS-K4H450S single-door magnetic lock is designed for wooden door, glass door, metal door, and fireproof door. The maximum thrust of the lock is 500 kg. It can be used for controlling door opening/closing, and the indicator shows the door status. It supports signal output of door lock output status testing. DS-K4H450S The magnetic lock supports static linear thrust of 500kg The power supply can be 12VDC or 24VDC + 10% Applies to wooden door, glass door, metal door and fireproof door LED indicator displays the status of door lock Signal output of door lock status DS-K4H450S MAIN FEATURES Single-door Magnetic Lock AVAILABLE MODEL Spec of DS-K4H450S Single-door Magnetic Lock www.hikvision.com 2 Model DS-K4H450S Dimension of Lock Body (L x W x H) 265 mm x 71.8 mm x 38.8...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 0
DS-K4T100
Spec of DS-K4T100-UX Series Accessories of Electric Bolt www.hikvision.com 1 The bracket is made up of aluminum alloy It is suitable for fully frameless glass door; The door opens both sides at the angle of 180°; The thickness of the glass is 10~15mm (0.39~0.59"); The weight of the product is 0.27kg (0.60lb) DS-K4T100-UX Series DS-K4T100-U1 Lower U-bracket of Electric Bolt, for Using with DS-K4T100 Accessories of Electric Bolt DS-K4T100-U1 Installation and Dimension Spec of DS-K4T100-UX Series Accessories of Electric Bolt www.hikvision.com 2 The bracket is made up of aluminum alloy; The dimension (LxWxH) of the bracket is: 205x58x46mm (8.07x2.28x1.81") It is suitable for fully frameless glass door; The door opens both sides at angle of 180°; The thickness of the glass is 10~15mm (0.39~0.59"); The weight of the product is 1.3kg.(2.87lb) DS-K4T100-U2 Upper and lower U-bracket of Elect...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 0
DS-K4T108
Spec of DS-K4T108 Electric Bolt www.hikvision.com 1 DS-K4T108 electric bolt is designed for wooden door, glass door, and metal door with the opening angle of 180°. It can be used for controlling door opening/closing. It supports signal output of lock output status testing. DS-K4T108 Auto-Locking if the induction module is detected Suitable for wooden door, glass door, and metal door Equipped with internal voltage dependent resistor (MOV) Signal output of door lock status (NO\NC\COM)) Abrasion-proof materials The shell is made up of aldural and is hard anodizing electroplated Covert installation Model DS-K4T108 Dimension of Body (LxWxH) 205x34x42mm (8.1x1.3x1.7") Unlock Method Current Interruption Input Voltage 12VDC Working Current ≤1.2A (Startup Current) 0.2A (Standby) Signal Output Dry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking; ...
Garantie: 24 mon.
Datentabelle
Verfügbarkeit: 0
FZ4M
FORTECA ul. Lubliniecka 64, 42-772 Łagiewniki Małe http://www.systemforteca.pl tel. (032)739-01-36, e-mail: biuro@systemforteca.pl FZ4M zamek elektro-mechaniczny Zamek zintegrowany do stosowania za zewnątrz i wewnątrz obiektów, bardzo trwała konstrukcja. Zamek projektowany specjalnie dla obiektów penitencjarnych. Napędem zamka jest bez przekładniowy przemysłowy silnik krokowy, dzięki temu mechanizm jest bardzo długowieczny i odporny na długotrwałe przeciążenia mechaniczne. Sterowanie mikroprocesorowe, pozwala na analizę obciążenia i dostosowanie pracy napędu do aktualnych warunków. Zamek sterowany z poziomu modułów systemu FORTECA lub DC. Zaawansowana elektronika pozwala na minimalne zużycie energii. Złącze zamka przewiduje podłączenie zewnętrznego sygnalizatora, dodatkowego zabezpieczenia w postaci np. zwory elektromagnetycznej, oraz posiada linię parametryczną przeznaczoną do obsługi przycisku zgłoszenia, lub dodatkowej linii alarmowej. Zamek posiada możliwość zamontowania typowej wkładki patentowej 41/41 zgodnej z normą PN-EN 1303: 2015-07. Materiał: Rygle wysokogatunkowa stal nierdzewna fi 20mm Pozos...
Garantie: 60 mon.
Datentabelle
Verfügbarkeit: 51-100
