Linsen
PFL0550-E6D

Lens Series | DH-PFL0550-E6D www.dahuasecurity.com DH-PFL0550-E6D 6 MegaPixel 5-50mm Lens Lens | DH-PFL0550-E6D www.dahuasecurity.com Technical Specifications Model DH-PFL0550-E6D Parameter Image format 1/2.7” Focal length 5-50mm Lens pixel 6MP Aperture F1.6 Mount CS Field Angle (D*H*V) 1/2.7” W: 65.7°x49.6°x36.9° T: 5.2°x7°x5.2° 1/2.9”(3:2) W: 58.1°x47°x33.2° T: 8.1°x6.6°x4.7° 1/4’’ W: 42°x33°x25° T: 5.9°x4.7°x3.6° Lens Control Focus Manual Zoom Manual Iris DC-iris IR Correction Yes M.O.D. 0.5m(1.64ft) Dimension ɸ44x85.7mm(ɸ1.73”x3.37”) Weight 0.2kg(0.44lb) Operating temperature -30℃~+70℃(-22℉~158℉) Humidity <90% RH Order Information Type Part Number Description Lens DH-PFL0550-E6D 6 MegaPixel 5-50mm Lens _Dahua brand PFL0550-E6D 6 MegaPixel 5-50mm Lens _Neutral, no brand Lens | DH-PFL0550-E6D Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
PFL1575-A12D

Lens Series | DH-PFL1575-A12D www.dahuasecurity.com DH-PFL1575-A12D 12MP 1/1.7” 15-75mm Vari-focal Lens Lens | DH-PFL1575-A12D www.dahuasecurity.com Technical Specifications Model DH-PFL1575-A12D Parameter Image Format 1/1.7” Focal Length 15-75mm Lens Pixel 12MP Aperture F1.5 Mount C Field Angle (D*H*V) 1/1.7”(4:3) W: 33°(D)x26°(H)x19.2°(V) T: 7.8°(D)x6.3°(H)x4.7°(V) 1/1.7”(17:9) W: 30.6°(D)x26.8°(H)x13.8°(V) T: 7.3°(D)x6.5°(H)x3.4°(V) 1/2’’ W: 28°(D)x22.2°(H)x16.5°(V) T: 6.7°(D)x5.4°(H)x4°(V) Lens Control Focus Manual Zoom Manual Iris DC-Iris IR Correction Yes M.O.D. 1.5m (4.92ft) Dimension ɸ58mmx116mm (ɸ2.28”x4.57”) Weight 465g (1.03lb) Operating Temperature -30℃~+70℃ (-22℉~+158℉) Humidity <90% RH Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 Part 15 Subpart B) Order Information Type Part Number Description Lens DH-PFL1575-A12D 12MP 1/1.7” 15-75mm vari-focal lens PFL1575-A12D 12MP 1/1.7” 15-75mm vari-focal lens
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 51-100
PFL25-K10M

Lens Series | DH-PFL25-K10M www.dahuasecurity.com DH-PFL25-K10M 10 MP 1’’ 25mm Fixed Lens Lens Series | DH-PFL25-K10M www.dahuasecurity.com Technical Specifications Model DH-PFL25-K10M Parameter Image format 1” Focal length 25mm Lens pixel 10MP Aperture F1.4 Mount C Field Angle (D*H*V) 1” 36.7°x32.5°x17.2° 1/1.1” 31.2°x26.9°x15.9° Lens Control Manual IR Correction No M.O.D. 1m(3.28ft) Dimension ɸ43.7x62.8mm(ɸ1.72”x2.47”) Weight 0.188kg(0.41lb) Operating temperature -30℃~+70℃(-22℉~158℉) Humidity <90% RH Order Information Type Model Description Lens DH-PFL25-K10M 10 MP 25mm Lens PFL25-K10M 10 MP 25mm Lens Lens Series | DH-PFL25-K10M Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com Dimensions(mm/inch) Package Information 10 MP 1’’ 25mm Fixed Lens DH-PFL25-K10M *1...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 51-100
PFL35-K10M

Lens Series | DH-PFL35-K10M www.dahuasecurity.com DH-PFL35-K10M 10 MP 1’’ 35mm Fixed Lens Lens Series | DH-PFL35-K10M www.dahuasecurity.com Technical Specifications Model DH-PFL25-K10M Parameter Image format 1” Focal length 25mm Lens pixel 10MP Aperture F1.4 Mount C Field Angle (D*H*V) 1” 25.6°x22.6°x12° 1/1.1” 21.8°x18.8°x11.1° Lens Control Manual IR Correction No M.O.D. 2m(6.56ft) Dimension ɸ45.0x48.9mm(ɸ1.77”x1.92”) Weight 0.163kg(0.36lb) Operating temperature -30℃~+70℃(-22℉~158℉) Humidity <90% RH Order Information Type Model Description Lens DH-PFL35-K10M 10 MP 35mm Lens PFL35-K10M 10 MP 35mm Lens Lens Series | DH-PFL35-K10M Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com Dimensions(mm/inch) Package Information 10 MP 1’’ 35mm Fixed Lens DH-PFL35-K10M *1...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 101-500
PLF2050-M

Field Angle (D*H*V) 1’’ 53.6°x 43.6°x 33.0° 3/4’’ 40.9°x 33.0°x 24.9° 2/3’’ 37.7°x 30.3°x 22.8° Lens Control Focus Manual Zoom Manual Iris Manual IR Correction No M.O.D. 0.5m Filter Size M40.5x0.5 Dimension ɸ46x75mm Weight 180g Operating temperature -30℃~+70℃ Humidity <90% RH Model PLF2050-M Parameter Image format 1” Focal length 16mm Lens pixel 5MP Aperture F1.4-16 Mount C 5 MegaPixel Lens Technical Specification PLF2050-M PLF2050-M Dimensions...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
PLZ20C0-D

www.dahuasecurity.com Lens Series | PLZ20C0-D PLZ20C0-D 12 MP 1/1.7” 3.7-16mm Vari-focal Lens Lens Series | PLZ20C0-D www.dahuasecurity.com Technical Specification ModelPLZ20C0-D Prameter Image Format1/1.7” Focal Length3.7-16mm Lens Pixel12MP ApertureF1.5 MountCS Field Angle (D*H*V) 1/1.7” W:145°(D)x109°(H)x79°(V)~T: 35.6°(D)x28.5°(H)x21.4°(V) Lens Control FocusManual ZoomManual IrisDC-Iris IR CorrectionYes M.O.D.0.5m (1.64ft) Dimension ɸ54mmx82.8mm (ɸ2.12”x3.26”) Weight0.27kg (0.6lb) Operating Temperature-30℃~+70℃ (-22℉~+158℉) Humidity<90% RH Certifications Certifications CE (EN55022, EN55024, EN50130-4) FCC (ANSI C63.4, FCC Part 15 Subpart B) Ordering Information TypePart NumberDescription Lens DH-PLZ20C0-D 12MP 1/1.7" 3.7-16mm vari-focal lens PLZ20C0-D 12MP 1/1.7" 3.7-16mm vari-focal lens Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. Lens Series | PLZ20C0-D www.dahuasecurity.com Dimensions (mm/inch) Package Information · 12MP 1/1.7" 3.7-16mm vari-focal lens PLZ20C0-D *1...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 101-500
PLZ20C0-L

DH -PLZ20 C0 -L 12 MegaPixel large aperture Lens Specifications Model DH -PLZ20 C0-L Parameter Image format 1/1.7 ” Focal length 7-34 mm Aperture F0.9 Field Angle 1/1.7”(4:3) W: 66.5°x53.6°x40.5° T: 20.5°x16.7°x12.4° 1/1.9” W: 60.2°x52.0°x29.4° T: 19.0°x16.0°x9.1° M.O.D. 0.5m TV Distortion 1/1.7” <-6.5% (wide) IR Correction No Lens Control Focus Manual Zoom Manual Iris DC-Iris Mount CS Dimension ɸ66x109mm Weight 545 g Operating temperature -30 ℃~ +70 ℃ DH -PLZ20 C0 -L Dimensions (mm) Dahua Technology Co., Ltd. 11 99 BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com www.dahuasecurity.com *Design and specifications are subject to change without notice. © 2016 Dahua Technology Co., Ltd....
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 11-50
PLZ20C0-P

DH -PLZ20 C0 -P 12 MegaPixel P-Iris Lens Specifications Model DH -PLZ20 C0-P Parameter Image format 1/1.7 ” (max. image format>ɸ9.33) Focal length 3.7-16 mm Aperture F1.5±10% Field Angle(FOV) W: 145 °x 109 °x 79 ° T: 35.6°x 28.5 °x 21.4° M.O.D. 0.5m TV Distortion -30%(Wide) IR Correction Yes Lens Control Focus Manual Zoom Manual Iris P-Iris Mount CS Dimension ∅54x82.8 mm Weight 270g Operating temperature -30 ℃~ +70 ℃ DH -PLZ20 C0 -P Dimensions (mm) Dahua Technology Co., Ltd. 11 99 BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com www.dahuasecurity.com *Design and specifications are subject to change without notice. © 2014 Dahua Technology Co., Ltd....
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 1-5
PLZ21C0-D

www.dahuasecurity.com Lens Series | PLZ21C0-D PL Z21C0 -D 12 MP 1/1.7” 10.5-42mm Vari-focal Lens Lens Series | PLZ21C0-D www.dahuasecurity.com Technical Specification ModelPLZ21C0-D Prameter Image Format1/1.7” Focal Length10.5-42mm Lens Pixel12MP ApertureF1.5 MountCS Field Angle (D*H*V) 1/1.7” W: 46.9°(D)x37.2°(H)x27.6°(V)~T: 14.2°(D)x11.2°(H)x8.4°(V) Lens Control FocusManual ZoomManual IrisDC-Iris TV Distortion-3%(Wide) IR CorrectionYes M.O.D.0.3m (0.98ft) Dimension ɸ52mmx90.5mm (ɸ2.05”x3.56”) Weight0.32kg (0.71lb) Operating Temperature-30℃~+70℃ (-22℉~+158℉) Humidity<90% RH Certifications Certifications CE (EN55022, EN55024, EN50130-4) FCC (ANSI C63.4, FCC Part 15 Subpart B) Ordering Information TypePart NumberDescription Lens DH-PLZ21C0-D 12 MP 1/1.7” 10.5-42mm vari-focal lens PLZ21C0-D 12 MP 1/1.7” 10.5-42mm vari-focal lens ...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 51-100
PLZ21C0-P

DH-PLZ21C0-P 12 MegaPixel P-Iris Lens Specifications Model DH-PLZ21C0-P Parameter Image format 1/1.7” (max. image format>ɸ9.33) Focal length 10.5-42mm Aperture F1.5±10% Field Angle W: 46.9°x 37.2°x 27.6° T: 14.2°x 11.2°x 8.4° M.O.D. 0.3m TV Distortion -3%(Wide) IR Correction Yes Lens Control Focus Manual Zoom Manual Iris P-Iris Mount CS Dimension ∅52x90.5mm Weight 320g Operating temperature -30℃~+70℃ DH-PLZ21C0-P Dimensions (mm) Dahua Technology Co., Ltd. 1199 BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com www.dahuasecurity.com *Design and specifications are subject to change without notice. © 2014 Dahua Technology Co., Ltd....
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0

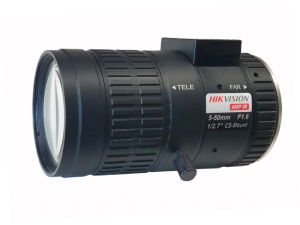

TV0550D-MPIR

Specification Vari-focal Auto Iris DC Drive 3MP IR ASPHERICAL Mount CS-Mount Flange Back Length 12.5mm M.O.D 0.3m Iris Dimension Φ43*76.71 Focus Weight 102g Zoom Operating Temperature -10~50℃ D 61.2°~6.8° 49.6°~5.5° H 49.6°~5.5° 40.0°~4.5° V 37.6°~4.2° 30.2°~3.4° Lens Picture Max. Image formatΦ6.5mm(1/2.7") Control DC Auto Iris Manual Manual Field of View 1/3" 1/4" Dimension F number F1.7-C CCTV LENS SPEC Model NO. TV0550D-MPIR Focallength 5-50mm...
Garantie: 36 mon.
Datentabelle
Verfügbarkeit: 0
