Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Interactive LCD Display | ADP100

www.dahuasecurity.com
· Intel Skylake i5 CPU, 4G RAM, 128GB SSD
· Abundant I/O interfaces, including six USB 3.0, one Display
port, one HDMI video port with up to 3840*2160 resolution
· Supports software client installation according to the
requirement
· Low-power consumption design, small and elegant

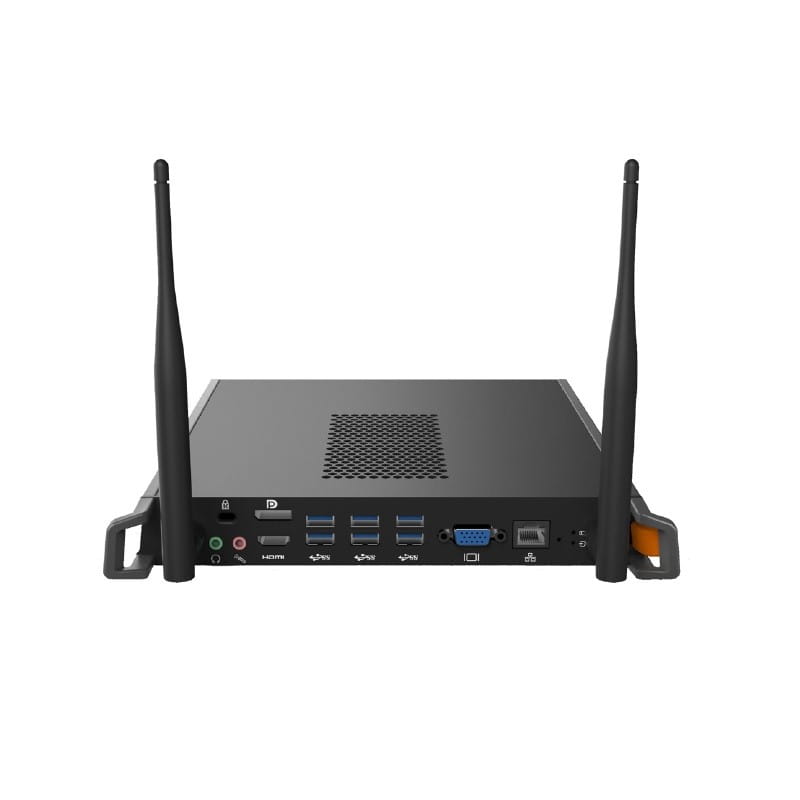

ADP100
Detachable PC Module

Technical Specifications
TypeDetachable PC module
CPUIntel® Core™ i5
RAMDDR4 4G
HDD128G SSD
GraphicsIntegrated Intel® HD Graphics
ChipsetIntel H110 Express
Sound cardIntegrated High Definition Audio Stereo
WiFi 802.11ac (2.4GHz/5GHz)
BluetoothBluetooth4.2
Operation systemWindows 7 and above
Inputs1 x Audio
Outputs1 x HDMI, 1 x VGA, 1 x Audio
USB6 x USB3.0
Network interfaces1 x RJ45 10/100/1000M self-adaptive network port
Transmission protocols
IPv4, TCP/IP, RTP, SRTP, RTCP, HTTP, DNS,
NTP and DHCP

Ordering Information
TypePart NumberDescription
PC Module ADP100Detachable PC Module
© 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice. Rev 001.001
