BL104
product unavailable
zur Wunschliste hinzufügenBeschreibung
BL104 Dahua Technology Co., Ltd. 1199BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571 -87688883 Fax: +86-571-87688815 Email:overseas@dahuatech.com www.dahuasecurity.com Mechanical desk monitor bracket Product Features Solid aluminum die cast construction, quick to install, easy to use Fits most monitors and check for mounting holes on back of monitors Pitching and horizontal angle adjustable Technical Specifications Model BL104 Fit screen size 10 -24 ” Max screen number 4 VESA size 100x100mm,75x75mm Loading capacity 0-8kg Tilt angle -5~+15 ° Swivel angle -5~+15 ° Rotation - Max height 560mm Max extension 315 mm Desk thinness 15 -55 mm Installation type Clamp, grommet Material aluminum Color Silver Additional features - *Design and specifications are subject to change without notice. ...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
BL104
Dahua Technology Co., Ltd.
1199BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571 -87688883
Fax: +86-571-87688815 Email:overseas@dahuatech.com www.dahuasecurity.com

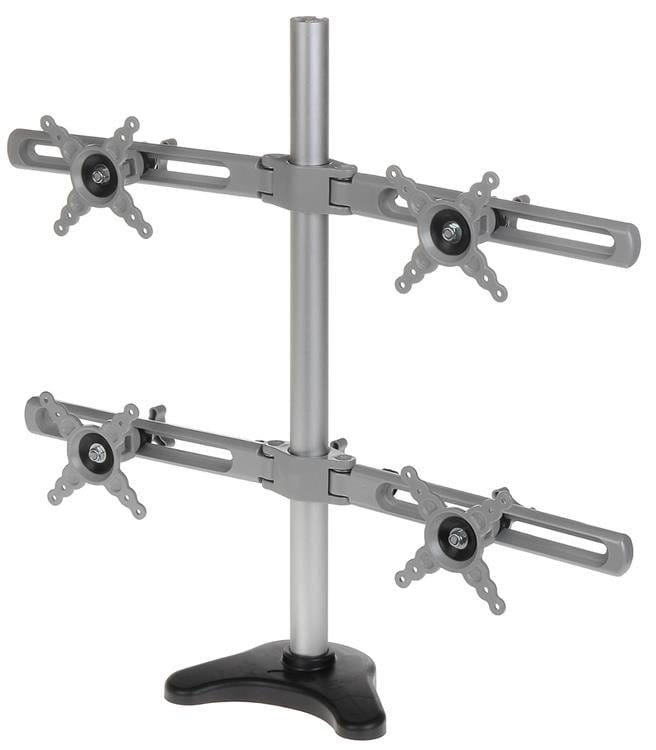

Mechanical desk monitor bracket
Product Features
Solid aluminum die cast construction, quick to install, easy to use
Fits most monitors and check for mounting holes on back of monitors
Pitching and horizontal angle adjustable
Technical Specifications
Model BL104
Fit screen size 10 -24 ”
Max screen number 4
VESA size 100x100mm,75x75mm
Loading capacity 0-8kg
Tilt angle -5~+15 °
Swivel angle -5~+15 °
Rotation -
Max height 560mm
Max extension 315 mm
Desk thinness 15 -55 mm
Installation type Clamp, grommet
Material aluminum
Color Silver
Additional features -
*Design and specifications are subject to change without notice.
BL104
Dahua Technology Co., Ltd.
1199BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571 -87688883
Fax: +86-571-87688815 Email:overseas@dahuatech.com www.dahuasecurity.com
Dimensions(mm)
