BL304-G

BL304-G  Dahua Technology Co., Ltd.  1199BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571 -87688883  Fax: +86-571-87688815 Email:overseas@dahuatech.com www.dahuasecurity.com    Gas spring desk monitor bracket    Product Features   Aircraft-grade aluminum arm, 360º horizontal free rotation   Gas Spring Designed Monitor Arm, Elevation of monitor can be adjusted easily   Built in 2 port USB 3.0 Hub, convenient for connecting keyboards, mouses, or USB  flash drives   Fits most monitors- check for mounting holes on back of monitors  Technical Specifications  Model BL304-G  Fit screen size 10 -27 ”  Max screen number 4  VESA size 100x100mm,75x75mm  Loading capacity 2-9kg  Tilt angle -85~ +15 ℃  Swivel angle +/-90 ℃  Rotation +/-180 ℃  Max height 812 mm  Max extension 1074 mm  Desk thinness 20-120mm  Installation type Clamp, grommet  Material aluminum  Color black         ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

BL304-G
Dahua Technology Co., Ltd.
1199BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571 -87688883
Fax: +86-571-87688815 Email:overseas@dahuatech.com www.dahuasecurity.com

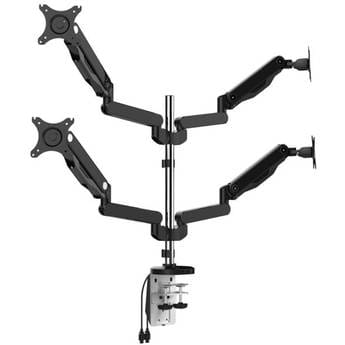

Gas spring desk monitor bracket

Product Features
 Aircraft-grade aluminum arm, 360º horizontal free rotation
 Gas Spring Designed Monitor Arm, Elevation of monitor can be adjusted easily
 Built in 2 port USB 3.0 Hub, convenient for connecting keyboards, mouses, or USB
flash drives
 Fits most monitors- check for mounting holes on back of monitors
Technical Specifications
Model BL304-G
Fit screen size 10 -27 ”
Max screen number 4
VESA size 100x100mm,75x75mm
Loading capacity 2-9kg
Tilt angle -85~ +15 ℃
Swivel angle +/-90 ℃
Rotation +/-180 ℃
Max height 812 mm
Max extension 1074 mm
Desk thinness 20-120mm
Installation type Clamp, grommet
Material aluminum
Color black




BL304-G
Dahua Technology Co., Ltd.
1199BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571 -87688883
Fax: +86-571-87688815 Email:overseas@dahuatech.com www.dahuasecurity.com

Additional features USB port
*Design and specifications are subject to change without notice.
Dimensions(mm)
