© 2014 by HIKVISION. All rights reserved.

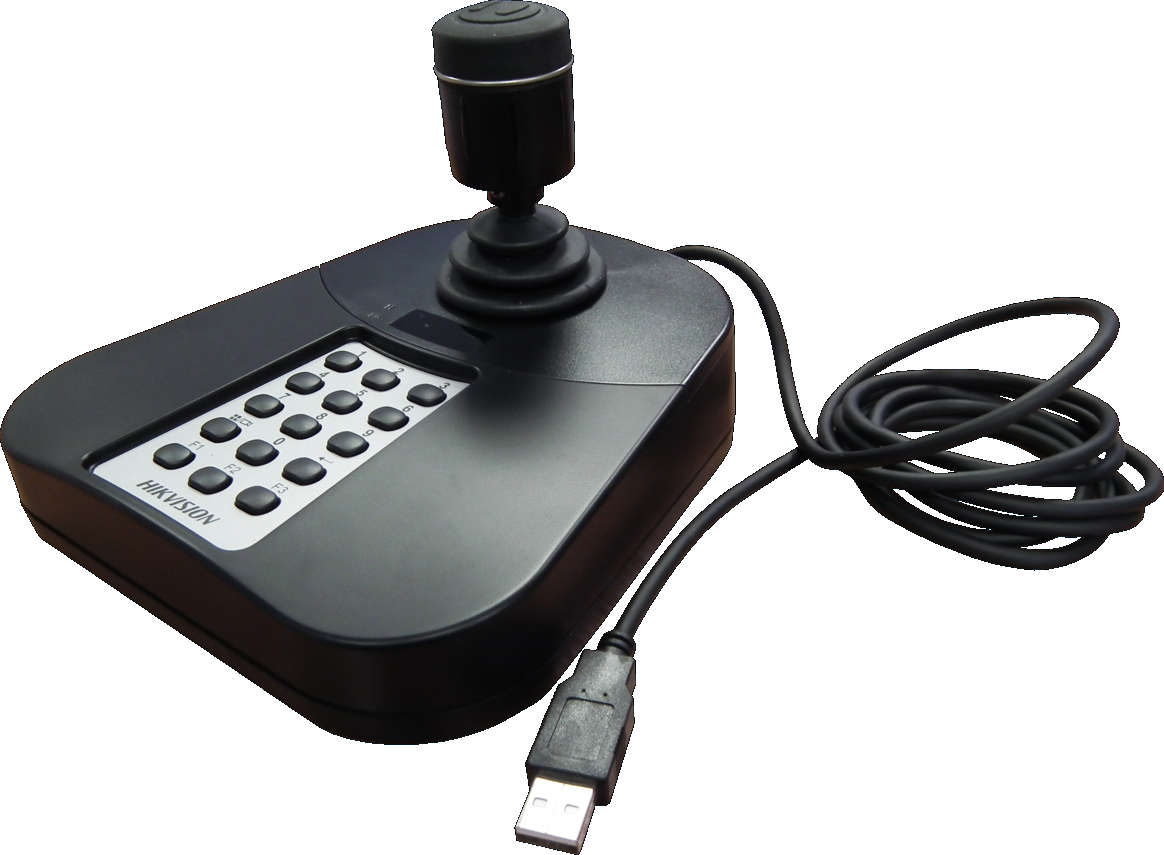

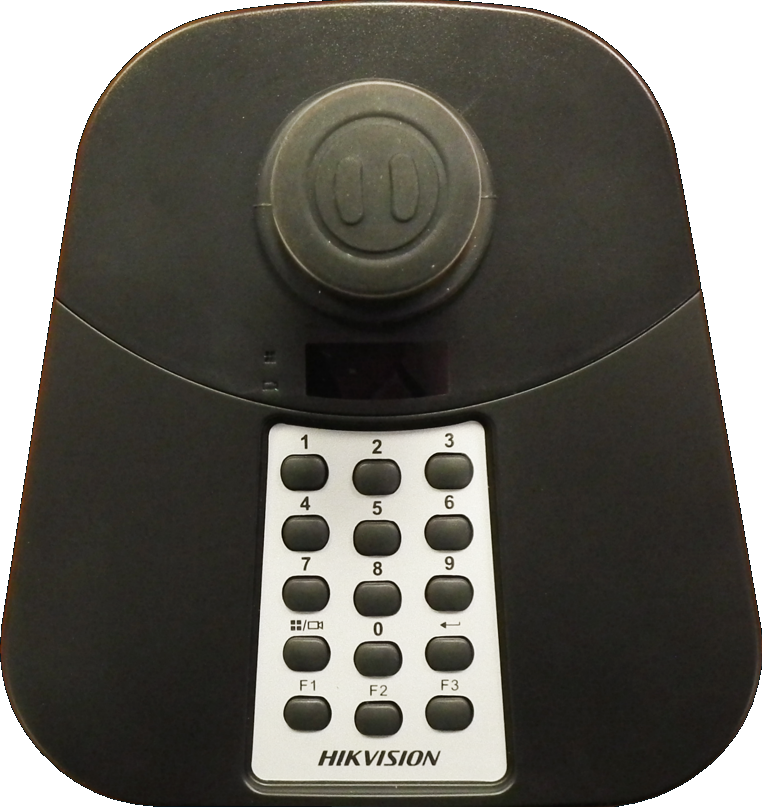

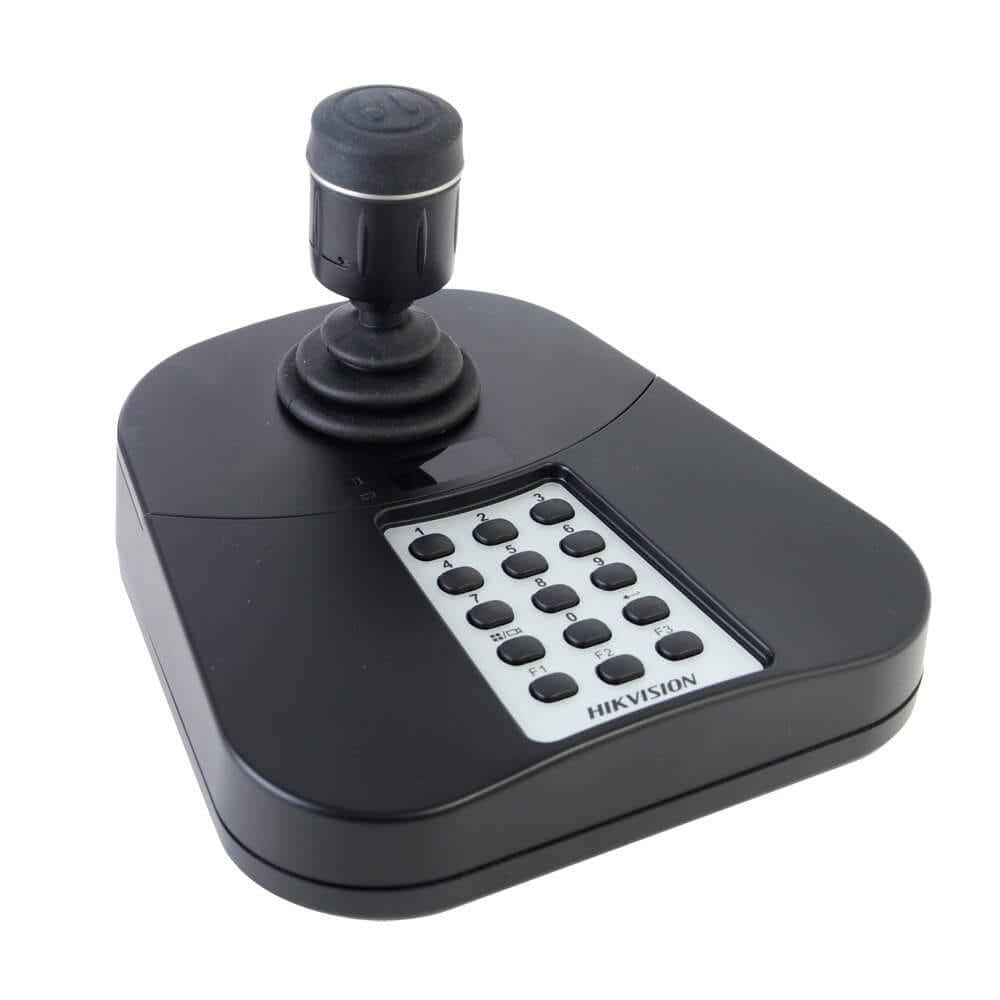

DS-1005KI USB Keyboard

Overview
DS-1005KI is a USB keyboard independently developed by
Hikvision and it can be accessed directly by the client software,
platform software of iVMS series, DVR and PC-DVR, and can
realize functions such as windows switching, PTZ control, picture
capture, recording and etc..
DS-1005KI is compatible with the USB joystick via USB
HID protocol, and can access to the third-party platform software.
It provides amply programmable buttons for setting custom
function and has the advantage of simple interface and easy
operation. The product can be widely applied in fields such as
finance, transportation, telecommunication, education, water
conservancy, and public security and so on.
Available Models
DS-1005KI
Key Features
 Power supply and communication by USB port directly.
 3D PTZ control and 2 joystick control buttons.
 Up to 15 programmable buttons are available.
 Support digital tube to display the input content.
 Support indicators to show the operation status of keyboard.
 Compatible with a various kinds of client software and
platform software.
 Support USB HID protocol.
Typical Application
IPC

Network
Line in

USB

PC-DVR
USB

DVR

Client Software or
Platform Software
IP Dome
Decoding Device


DS-1005KI


Specifications
Model DS-1005KI
Compatible System Window XP/7/8/8.1
Interface Type USB 2.0, DirectX
Control Joystick (3-axis control, rotating zoom)
Dimensions 167*177.5*116(mm)
Operating Temperature -10 ºC ~+55 ºC
Operating Humidity 10% ~ 90% (Non-condensing)
Power Supply 5V DC via USB
Consumption ≤ 5W
