DS-1214ZJ-AC(OS)

DS-1214ZJ-AC(OS)  Horizontal Pole Mount    Feature   Stainless steel with anti-corrosion surface spray treatment (excluding clamps)   Adjustable pan angle from 0° to 90°, and tilt angle from 0° to 120°   Applies to anti-corrosion bullet camera  Dimension  194  mm  (7  .64  ")  122.6 mm  (4.83")  30 mm  (1.81")  96 mm (3.78")  6  .5  mm  (0  .26  ")  127  .5  mm  (5  .02  ")  40.6 mm  (1.60")  Ø80 mm to 200 mm  (Ø3.15" to 7.87")  227  mm  (8  .94  ")      Available Model  DS-1214ZJ-AC(OS)  Parameter  Model    Parameters  DS-1214ZJ-AC(OS)  Horizontal Pole Mount  Appearance Silver moon grey  Material Stainless steel  Dimension 122.6 mm x 194 mm x 227 mm (4.83" x 7.64" x 8.94")  Weight 2.14 kg (4.72 lb.)  Note   The mount should be installed on the flat surface.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.   The mount’s maximum load capacity is 6 kg (13.23 lb.).    01000020200512...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1214ZJ-AC(OS)

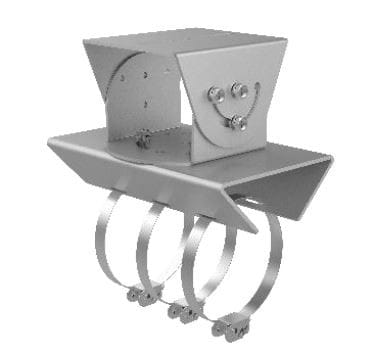

Horizontal Pole Mount

Feature
 Stainless steel with anti-corrosion surface spray treatment (excluding clamps)
 Adjustable pan angle from 0° to 90°, and tilt angle from 0° to 120°
 Applies to anti-corrosion bullet camera
Dimension
194
mm
(7
.64
")
122.6 mm
(4.83")
30 mm
(1.81")
96 mm (3.78")
6
.5
mm
(0
.26
")
127
.5
mm
(5
.02
")
40.6 mm
(1.60")
Ø80 mm to 200 mm
(Ø3.15" to 7.87")
227
mm
(8
.94
")


Available Model
DS-1214ZJ-AC(OS)
Parameter
Model

Parameters
DS-1214ZJ-AC(OS)
Horizontal Pole Mount
Appearance Silver moon grey
Material Stainless steel
Dimension 122.6 mm x 194 mm x 227 mm (4.83" x 7.64" x 8.94")
Weight 2.14 kg (4.72 lb.)
Note
 The mount should be installed on the flat surface.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
 The mount’s maximum load capacity is 6 kg (13.23 lb.).

01000020200512
