DS-1214ZJ-T

DS-1214ZJ-T  Horizontal Pole Mount    Feature   Steel and stainless steel with surface spray treatment   Adjustable tilt angle from -90° to 90°, and pan angle from 0° to 90°  Dimension  194  mm  (7.64  " )  117 mm (4.61" )138  .5  mm  (5.45  " )  30  .2  mm  (1.19  " )  22  .8  mm  (0.90  " )  70 mm to 127 mm  (2.7" to 5" )  Ø 10.2 mm  (0.40" )  28.8 mm  (1.13" )  24.2 mm  (0.95" )      Available Model  DS-1214ZJ-T  Parameter  Model    Parameters  DS-1214ZJ-T  PT Joint  Appearance Hikvision White  Material Steel and Stainless Steel  Dimension 194 mm x 117 mm x 138.5 mm (7.64" x 4.61" x 5.45")  Weight 1900 g (4.19 lb.)  Note   The waterproof rubber is necessary for the outdoor application.   The pole must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.   The joint’s maximum load capacity is 6 kg (13.2 lb.).    0100001080201...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1214ZJ-T

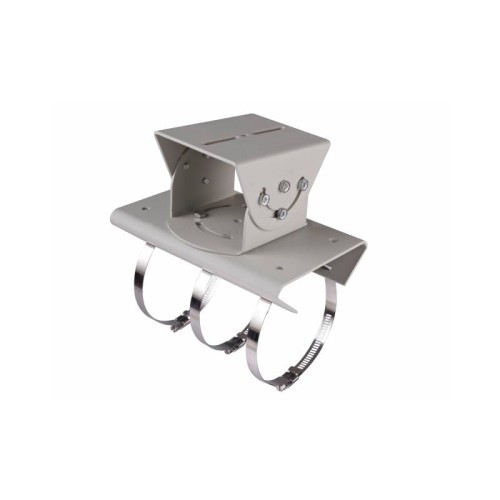

Horizontal Pole Mount

Feature
 Steel and stainless steel with surface spray treatment
 Adjustable tilt angle from -90° to 90°, and pan angle from 0° to 90°
Dimension
194
mm
(7.64
" )
117 mm (4.61" )138
.5
mm
(5.45
" )
30
.2
mm
(1.19
" )
22
.8
mm
(0.90
" )
70 mm to 127 mm
(2.7" to 5" )
Ø 10.2 mm
(0.40" )
28.8 mm
(1.13" )
24.2 mm
(0.95" )


Available Model
DS-1214ZJ-T
Parameter
Model

Parameters
DS-1214ZJ-T
PT Joint
Appearance Hikvision White
Material Steel and Stainless Steel
Dimension 194 mm x 117 mm x 138.5 mm (7.64" x 4.61" x 5.45")
Weight 1900 g (4.19 lb.)
Note
 The waterproof rubber is necessary for the outdoor application.
 The pole must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
 The joint’s maximum load capacity is 6 kg (13.2 lb.).

0100001080201
