DS-1214ZJ

DS-1214ZJ  Horizontal Pole Mount        Features:   For horizontal pole mounting   The clasp is made of stainless steel   Mounting board is made of aluminum die-casting alloy  Dimension:      Order Model:  DS-1214ZJ  Parameter:  Model  Parameter  DS-1214ZJ  Horizontal Pole Mount Bracket  Appearance Hikvision White  Material Aluminum Alloy & Steel  Dimension 117x226x194mm  Weight 1895g  Notice:   The site of screw hole should be noticed when using with  housing   Load capacity of pole should be more than 3 times the  weight of camera and bracket   Load capacity of clamp is 6 KG          Note: The actual bracket may vary from the picture above....

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

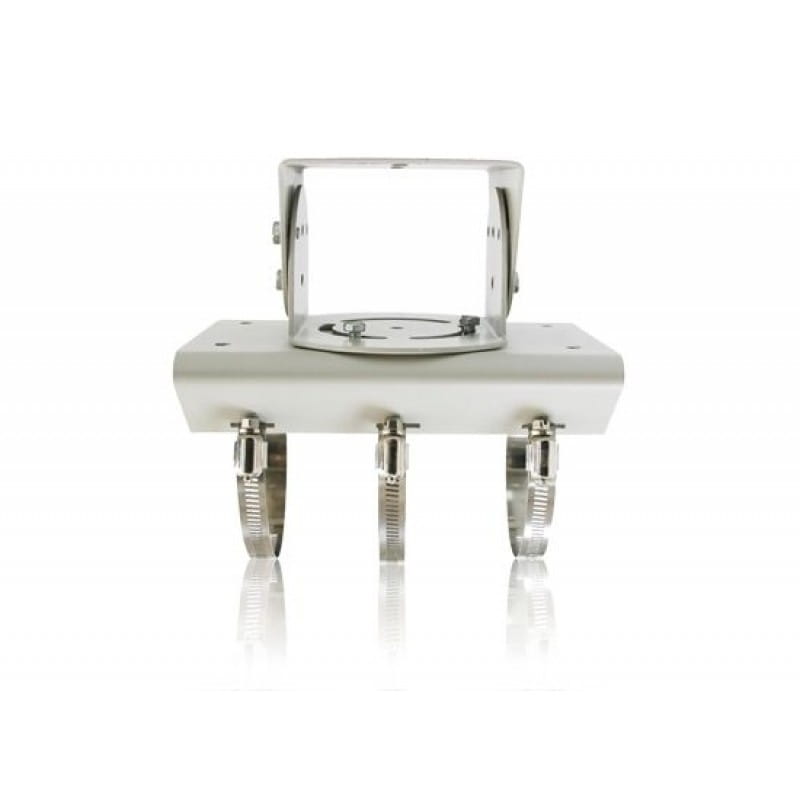

DS-1214ZJ
Horizontal Pole Mount



Features:
 For horizontal pole mounting
 The clasp is made of stainless steel
 Mounting board is made of aluminum die-casting alloy
Dimension:


Order Model:
DS-1214ZJ
Parameter:
Model
Parameter
DS-1214ZJ
Horizontal Pole Mount Bracket
Appearance Hikvision White
Material Aluminum Alloy & Steel
Dimension 117x226x194mm
Weight 1895g
Notice:
 The site of screw hole should be noticed when using with
housing
 Load capacity of pole should be more than 3 times the
weight of camera and bracket
 Load capacity of clamp is 6 KG




Note: The actual bracket may vary from the picture above.
