DS-1227ZJ-DM32

DS - 1227ZJ-DM32  In-Ceiling Mounting Bracket for Dome Camera      Features   Steel and plastic material with surface spray treatment   Magnet ic design facilitates dome camera installation   In- ceiling mounting saves installation space    Dimension    Φ 222 mm  (8.74")   93.02 mm  (3.66")   89.78 mm  (3.53")    98.07 mm (3.86")  Φ 224.95 mm  (8.86")    * Φ 222 mm (Φ 8.86") is the diameter for the cable hole on the ceiling.  Available Model  DS-12 27 ZJ -DM32  Parameters  Model  Parameters    DS-1227ZJ-DM32  In-Ceiling Mounting Bracket for Dome Camera  Appearance Hikvision White  Material Steel and Plastic  Dimension Φ 224.95 mm x 98.07 mm (Φ 8.86" x 3.86")  Weight 660 g (1.46 lb.)  otes   The bracket should be installed on the flat ceiling .   The ceiling must be capable of supporting over 3 times as much as the total weight of the camera and the  brack et...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS - 1227ZJ-DM32

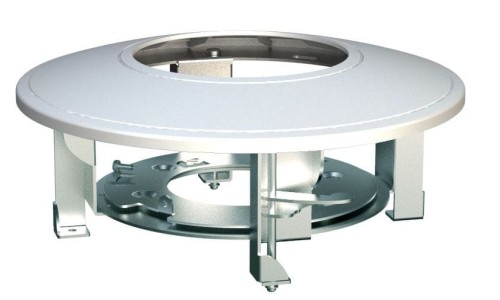

In-Ceiling Mounting Bracket for Dome Camera


Features
 Steel and plastic material with surface spray treatment
 Magnet ic design facilitates dome camera installation
 In- ceiling mounting saves installation space

Dimension

Φ 222 mm
(8.74")
93.02 mm
(3.66")
89.78 mm
(3.53")

98.07 mm (3.86")
Φ 224.95 mm
(8.86")

* Φ 222 mm (Φ 8.86") is the diameter for the cable hole on the ceiling.
Available Model
DS-12 27 ZJ -DM32
Parameters
Model
Parameters

DS-1227ZJ-DM32
In-Ceiling Mounting Bracket for Dome Camera
Appearance Hikvision White
Material Steel and Plastic
Dimension Φ 224.95 mm x 98.07 mm (Φ 8.86" x 3.86")
Weight 660 g (1.46 lb.)
otes
 The bracket should be installed on the flat ceiling .
 The ceiling must be capable of supporting over 3 times as much as the total weight of the camera and the
brack et .
 The bracket’s maximum load capacity is 3 Kg (6.6 lb.).
