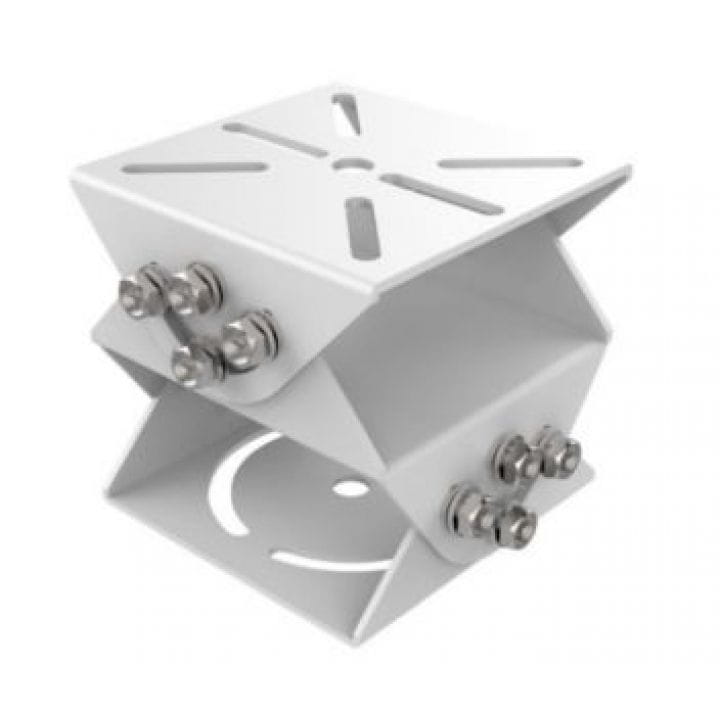

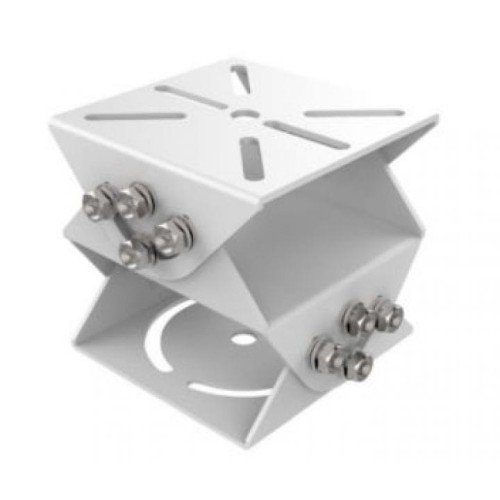

DS-1232ZJ

DS-1232ZJ  Cardan Joint      Feature   Enables the angle adjustment from -60° to 60°   Applied to both indoor and outdoor conditions  Dimension  Φ 6.5 mm  (0.26")  30  mm  (  1  .18  ")  96  mm  (  3  .78  ")  126  mm  (  4  .96  ")   6.5 mm  (0.26")   103.5 mm (4.07")  83  mm  (  3  .27  ")  Φ 70 mm  (2.76")  Φ 6.6 mm  (0.26")      Available Model  DS-1232ZJ  Parameter  Model    Parameters  DS-1232ZJ  Cardan Joint  Appearance Hikvision White  Material Steel  Dimension 126 mm x 103.5 mm x 83 mm (4.96" x 4.07" x 3.27")  Weight Approx. 760 g (1.68 lb.)  Note   The cardan joint should be installed on a flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the cardan joint.   The maximum load capacity of the cardan joint is 6 kg (13.23 lb.)....

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1232ZJ
Cardan Joint


Feature
 Enables the angle adjustment from -60° to 60°
 Applied to both indoor and outdoor conditions
Dimension
Φ 6.5 mm
(0.26")
30
mm
(
1
.18
")
96
mm
(
3
.78
")
126
mm
(
4
.96
")
6.5 mm
(0.26")
103.5 mm (4.07")
83
mm
(
3
.27
")
Φ 70 mm
(2.76")
Φ 6.6 mm
(0.26")


Available Model
DS-1232ZJ
Parameter
Model

Parameters
DS-1232ZJ
Cardan Joint
Appearance Hikvision White
Material Steel
Dimension 126 mm x 103.5 mm x 83 mm (4.96" x 4.07" x 3.27")
Weight Approx. 760 g (1.68 lb.)
Note
 The cardan joint should be installed on a flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the cardan joint.
 The maximum load capacity of the cardan joint is 6 kg (13.23 lb.).
