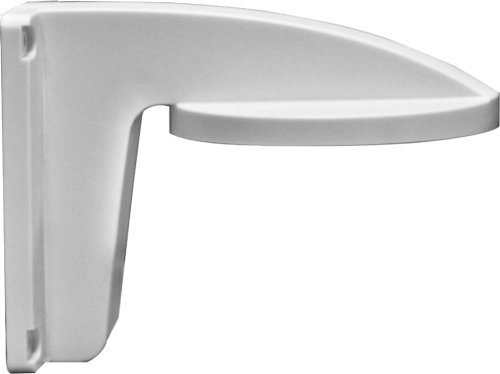

DS-1258ZJ(Black)

DS-1258ZJ  Wall mount for indoor cameras  Features:   Good toughness and strength   Beautiful design with wire outlet hole   Coordination with small and nice appearance  Dimension:      Order model:  DS-1258ZJ  Parameters  Model  Parameters  DS-1258ZJ  Indoor wall mount  Color Hik white  Feature Suitable for mini dome or dome camera  Material ABS+PC  Dimension 111x120x161.5mm()  Weight 200g  Notice:   Pay attention to the application range when select bracket   Pay attention to the color matching when select bracket   The bracket should be installed on flat wall   The wall must be capable of supporting more than 3 times the total load of  the camera and the mount.   The maximum load capacity of the mount is 2.0KG  Installation steps:  ① Select suitable wall to install the bracket ⑥ Loosen the tightening screw and take down ⑥ Install the dome core to the gang box,  and wire. the housing. ...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1258ZJ
Wall mount for indoor cameras
Features:
 Good toughness and strength
 Beautiful design with wire outlet hole
 Coordination with small and nice appearance
Dimension:


Order model:
DS-1258ZJ
Parameters
Model
Parameters
DS-1258ZJ
Indoor wall mount
Color Hik white
Feature Suitable for mini dome or dome camera
Material ABS+PC
Dimension 111x120x161.5mm()
Weight 200g
Notice:
 Pay attention to the application range when select bracket
 Pay attention to the color matching when select bracket
 The bracket should be installed on flat wall
 The wall must be capable of supporting more than 3 times the total load of
the camera and the mount.
 The maximum load capacity of the mount is 2.0KG
Installation steps:
① Select suitable wall to install the bracket ⑥ Loosen the tightening screw and take down ⑥ Install the dome core to the gang box,
and wire. the housing. wire and lock the screw.

Notice: “A” stands for the lock screw
② Adjust the angle through the 3-axis adjustment ⑥ Install the housing and lock the screws. ⑦Finish the installation.
structure.

Remark: Appearance of Installation steps is for reference only
