DS-1271ZJ-PT10

DS -1271 ZJ-PT10  Pendant Mount  Feature  Aluminum alloy and plastic with surface spray treatment  The cap facilitates the installation  Dimension 532 mm (20.9" )  121.2 mm (4.77" )  121.2 mm (4.77" )  Ø 160.6 mm  (6.32" )  Ø 150 mm  (5.91" )  4-Ø 8.5 mm  (0.33" )      Available Model  DS -1271ZJ-PT10  Parameter  Model  Parameters    DS -1271ZJ-PT10  Pendant Mount  Appearance Hikvision White  Material Aluminum A lloy and Plastic  Dimension Ø 160.6 mm x 532 mm (6.32" x 20.9 ")  Weight 1300 g (2.87 lb.)  No te  The mount should be installed on the flat surface.   The waterproof rubber is necessary for the outdoor application.  The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.  The mount ’s maximum load capacity is 3 kg (6.61 lb.)....

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS -1271 ZJ-PT10

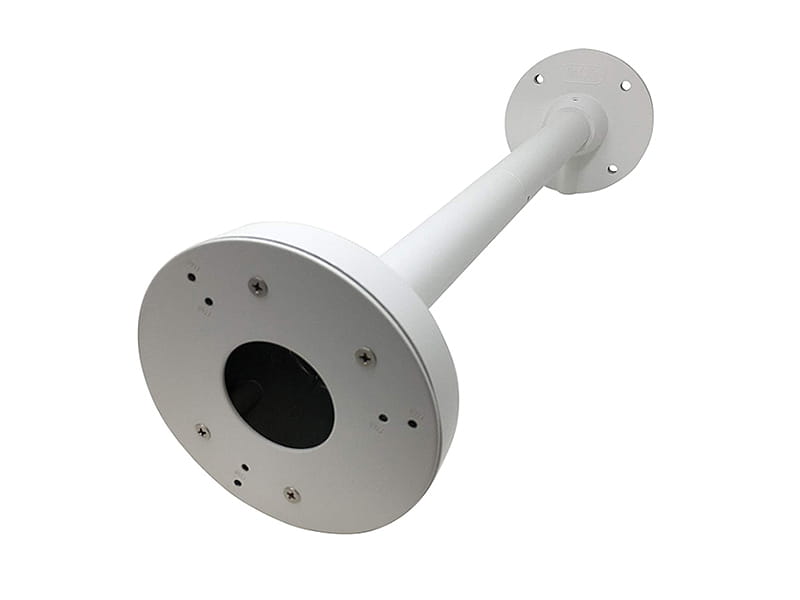

Pendant Mount
Feature
Aluminum alloy and plastic with surface spray treatment
The cap facilitates the installation
Dimension 532 mm (20.9" )
121.2 mm (4.77" )
121.2 mm (4.77" )
Ø 160.6 mm
(6.32" )
Ø 150 mm
(5.91" )
4-Ø 8.5 mm
(0.33" )


Available Model
DS -1271ZJ-PT10
Parameter
Model
Parameters

DS -1271ZJ-PT10
Pendant Mount
Appearance Hikvision White
Material Aluminum A lloy and Plastic
Dimension Ø 160.6 mm x 532 mm (6.32" x 20.9 ")
Weight 1300 g (2.87 lb.)
No te
The mount should be installed on the flat surface.
 The waterproof rubber is necessary for the outdoor application.
The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
The mount ’s maximum load capacity is 3 kg (6.61 lb.).
