DS-1272ZJ-110-TRS

DS-1272ZJ-110-TRS      Wall Mounting Bracket for 55X2 Series  Mini Dome Camera    Features:   Aluminum alloy material with surface spray  treatment   Good feature with the hole of cable entrance   Better water proof design   Convenient installation with the design of cap  Dimension:    Order Model:  DS-1272ZJ-110-TRS  Parameter:  Model    Parameters  DS-1272ZJ-110-TRS  Wall Mounting Bracket for  Dome Camera  Appearance Hik White  Range of  Application  55X2 Series Mini Dome Camera  Material Aluminum Alloy  Dimension 110x120x120mm  Weight 545g  Notice:   Pay attention to the color matching when select bracket   The bracket should be installed on flat wall   The wall must be capable of supporting over 3 times as much as  the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG   The bracket includes gang box  Model Suitable:  DS-2CC55X2P(N)-IR, DS-2CE55X2P(N), DS-2CC5132P(N)-IRP    Unit：mm  8.5...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

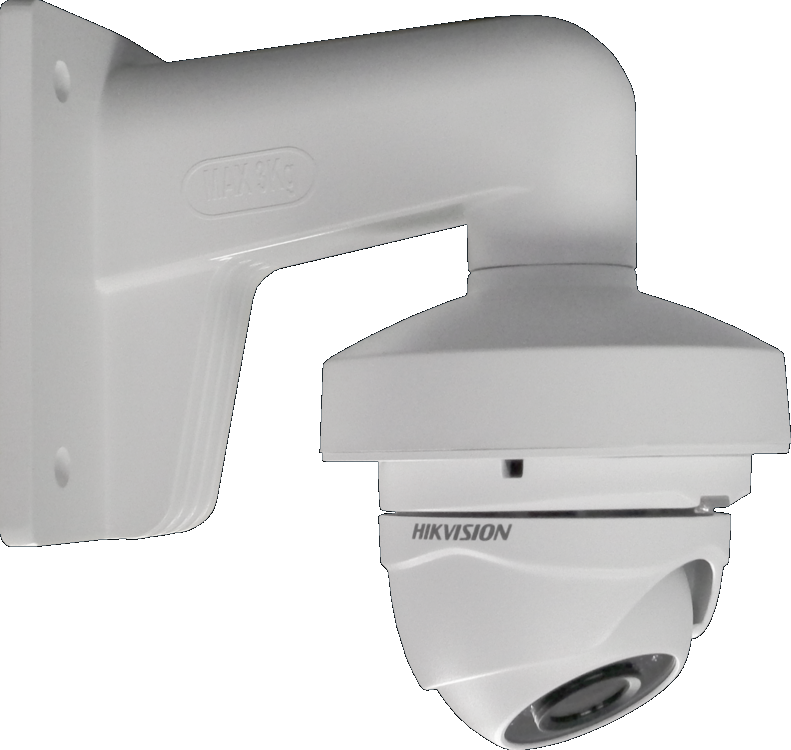

DS-1272ZJ-110-TRS


Wall Mounting Bracket for 55X2 Series
Mini Dome Camera

Features:
 Aluminum alloy material with surface spray
treatment
 Good feature with the hole of cable entrance
 Better water proof design
 Convenient installation with the design of cap
Dimension:

Order Model:
DS-1272ZJ-110-TRS
Parameter:
Model

Parameters
DS-1272ZJ-110-TRS
Wall Mounting Bracket for
Dome Camera
Appearance Hik White
Range of
Application
55X2 Series Mini Dome Camera
Material Aluminum Alloy
Dimension 110x120x120mm
Weight 545g
Notice:
 Pay attention to the color matching when select bracket
 The bracket should be installed on flat wall
 The wall must be capable of supporting over 3 times as much as
the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG
 The bracket includes gang box
Model Suitable:
DS-2CC55X2P(N)-IR, DS-2CE55X2P(N), DS-2CC5132P(N)-IRP

Unit：mm
8.5
