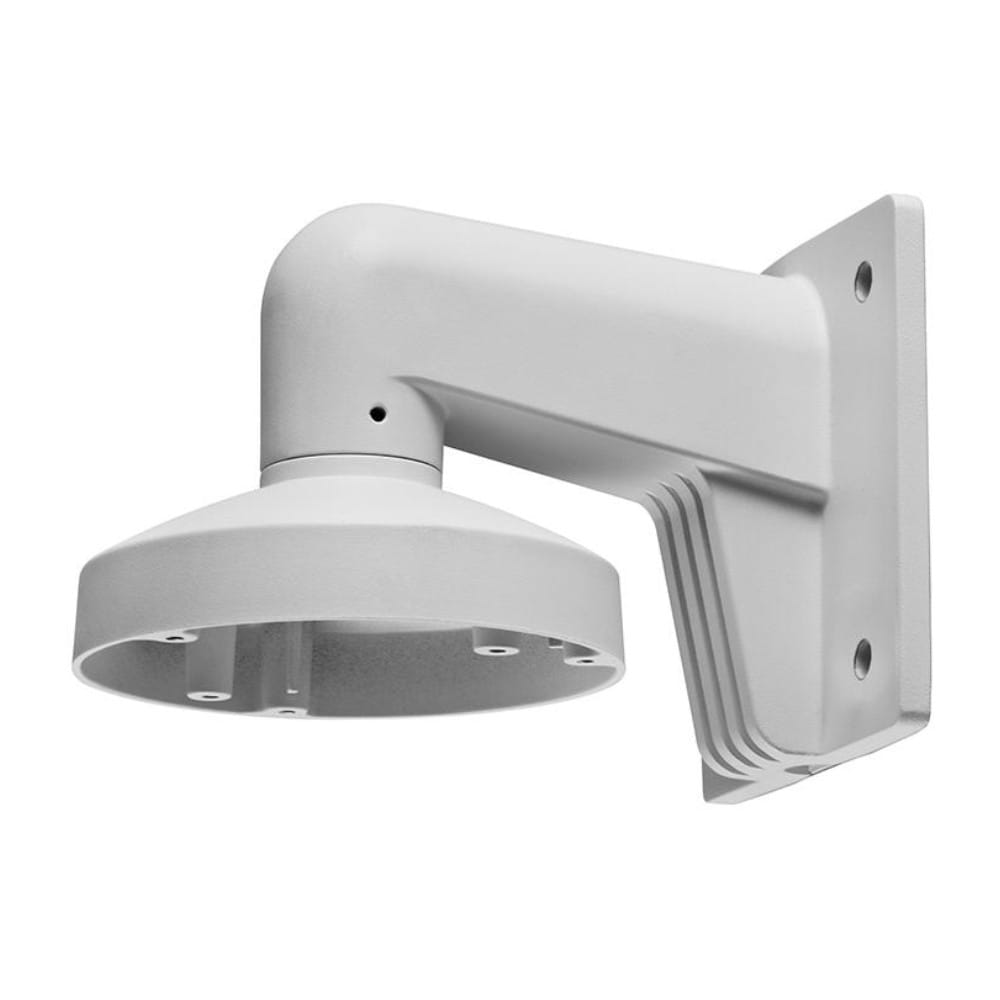

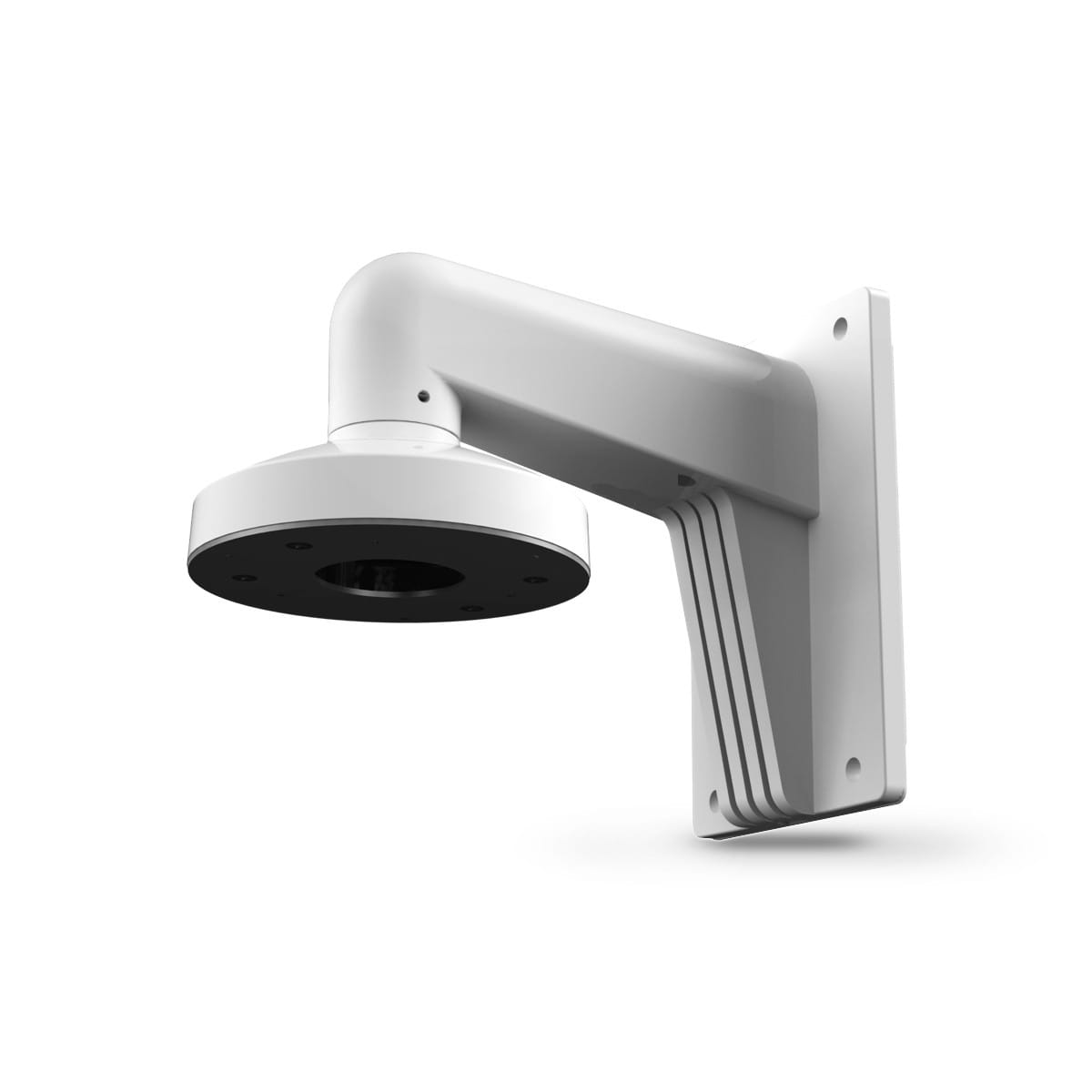

DS-1273ZJ-135B


Wall Mounting Bracket for
Dome Camera (with Junction Box)
Features:
 Aluminum alloy material with surface spray
treatment
 Design of cable entrance hole
 Better water proof design
 Junction box with waterproof stopper
Dimension:

Order Model:
DS-1273ZJ-135B
Parameter:
Model

Parameters
DS-1273ZJ-135B
Wall Mounting Bracket for
Dome Camera (with Junction Box)
Appearance Hik White
Range of
Application
Suitable for dome camera wall mounting
Material Aluminum Alloy
Dimension 136x243x290mm
Weight 1490g
Notice:
 The bracket should be installed on flat wall
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CD2712F-I(S),DS-2CD2732F-I(S),DS-2CC52X1P(N)-VP,
DS-2CC52X1P(N)-AVPIR2
Installation Step:
① Choose appropriate wall
to install the bracket and
thread the cable through
waterproof stopper
② Fix bracket to junction box
thread the cable and screw up
③ Fix adaptor cap to bracket
with tightening screw
④ Take off lower dome
and lining













A: Fastening screw

⑤ Install dome camera to
adaptor cap and fix with
screw
⑥ Install lining to dome camera
and adjust the angle of view

⑦ Install lower dome to
dome camera and screw
up
⑧ Installation complete









Note: The actual bracket may vary from the picture above.
