DS-1273ZJ-135B(Black)

DS-1273ZJ-135B  Wall Mount    Feature   Aluminum alloy with surface spray treatment   The cable hole design facilitates the cable routing   The cap design facilitates the installation  Dimension  83.5 mm  (3.29'')  46 mm (1.81'')  83  .5  mm  (3  .29  ''  )  9-M4 depth 8 mm  (0.31'')  290 mm (11.42'')  209  mm  (8  .23  ''  )  220  mm  (8  .66  ''  )  242  .92  mm  (9  .56  ''  )  85.7 mm (3.37'')  123.09 mm (4.84'')      Available Model  DS-1273ZJ-135B  Parameter  Model    Parameters  DS-1273ZJ-135B  Wall Mount  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ 136 mm x 242.92 mm x 290 mm (5.35" x 9.56" x 11.42")  Weight 1639 g (3.61 lb.)  Note   The mount should be installed on the flat wall.   The waterproof rubber is necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.   The mount’s maximum load capacity is 3 kg (6.6 lb.)....

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

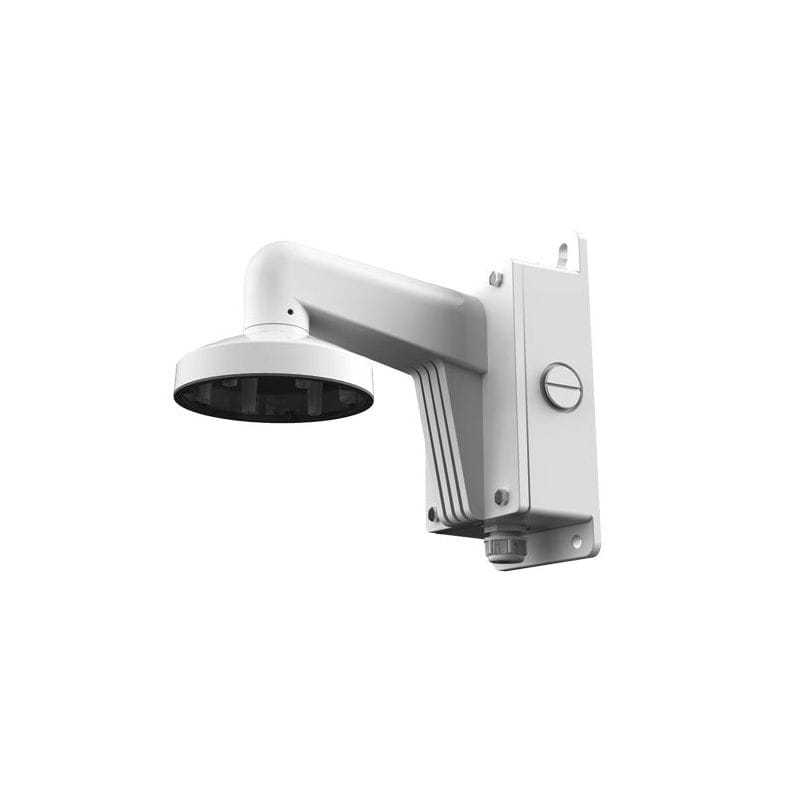

DS-1273ZJ-135B
Wall Mount

Feature
 Aluminum alloy with surface spray treatment
 The cable hole design facilitates the cable routing
 The cap design facilitates the installation
Dimension
83.5 mm
(3.29'')
46 mm (1.81'')
83
.5
mm
(3
.29
''
)
9-M4 depth 8 mm
(0.31'')
290 mm (11.42'')
209
mm
(8
.23
''
)
220
mm
(8
.66
''
)
242
.92
mm
(9
.56
''
)
85.7 mm (3.37'')
123.09 mm (4.84'')


Available Model
DS-1273ZJ-135B
Parameter
Model

Parameters
DS-1273ZJ-135B
Wall Mount
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ 136 mm x 242.92 mm x 290 mm (5.35" x 9.56" x 11.42")
Weight 1639 g (3.61 lb.)
Note
 The mount should be installed on the flat wall.
 The waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
 The mount’s maximum load capacity is 3 kg (6.6 lb.).
