DS-1273ZJ-140

DS-1273ZJ-140      DS-2CC51xxP(N) Wall Mounting Bracket for  Dome Camera  Features:   Aluminum alloy material with surface spray  treatment   The outlet hole makes the feature looks better   Better water proof design   Convenient installation coordinating with lower  bowl  Dimension:      Order Model:  DS-1273ZJ-140  Parameter:  Model    Parameters  DS-1273ZJ-140  DS-2CC51xxP(N) Wall Mounting Bracket for  Dome Camera  Appearance Hik White  Range of  Application  Suitable for DS-2CC51xxP(N) dome camera wall  mounting  Material Aluminum Alloy  Dimension 140x182x120mm  Weight 703g  Notice:   The bracket is for DS-2CC51xxP(N)-VF dome camera   Pay attention to the color matching when select bracket   The bracket should be installed on flat wall   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount   The maximum load capacity of the bracket is 4.5KG  Model Suitable:  DS-2CC51xxP(N)-VP  DS-2CC51xxP(N)-...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1273ZJ-140

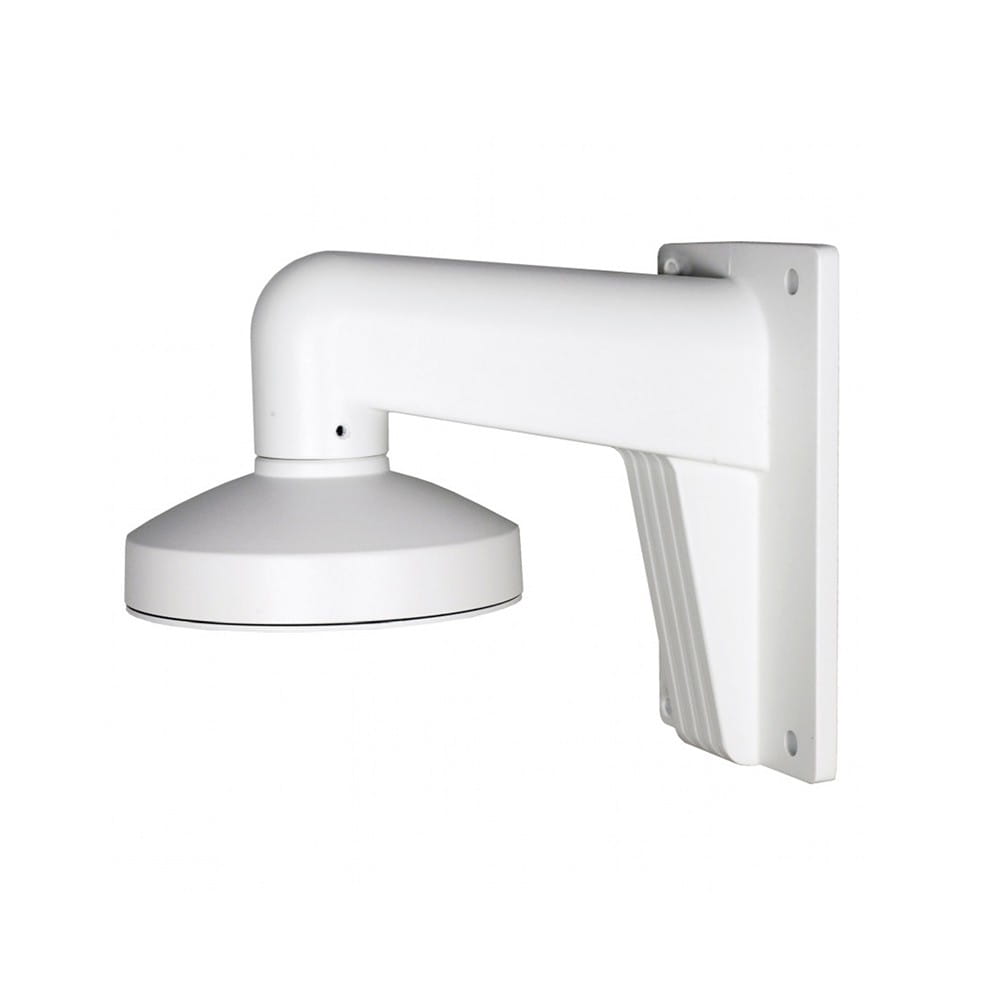

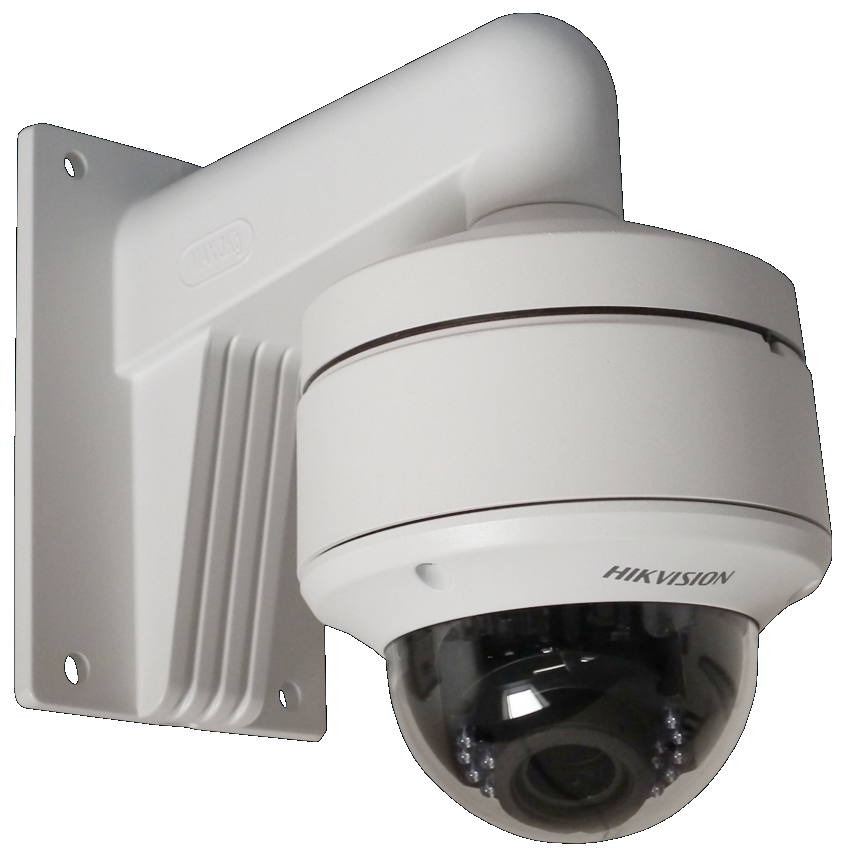

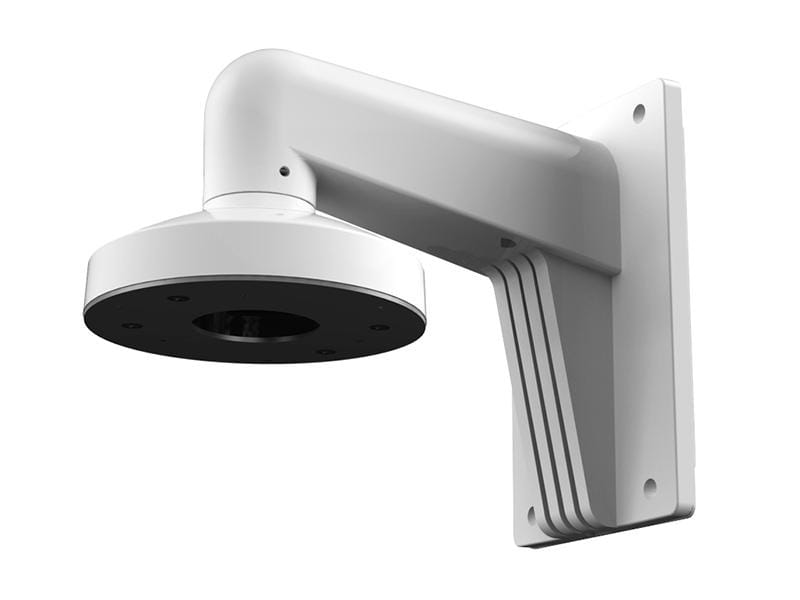

DS-2CC51xxP(N) Wall Mounting Bracket for
Dome Camera
Features:
 Aluminum alloy material with surface spray
treatment
 The outlet hole makes the feature looks better
 Better water proof design
 Convenient installation coordinating with lower
bowl
Dimension:


Order Model:
DS-1273ZJ-140
Parameter:
Model

Parameters
DS-1273ZJ-140
DS-2CC51xxP(N) Wall Mounting Bracket for
Dome Camera
Appearance Hik White
Range of
Application
Suitable for DS-2CC51xxP(N) dome camera wall
mounting
Material Aluminum Alloy
Dimension 140x182x120mm
Weight 703g
Notice:
 The bracket is for DS-2CC51xxP(N)-VF dome camera
 Pay attention to the color matching when select bracket
 The bracket should be installed on flat wall
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount
 The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CC51xxP(N)-VP
DS-2CC51xxP(N)-VPIR
DS-2CC51xxP(N)-VPIRH

Unit：mm
6-M4深8
232
158183.5
85.7
46
83.5
83.5
4-φ8.5
φ140
