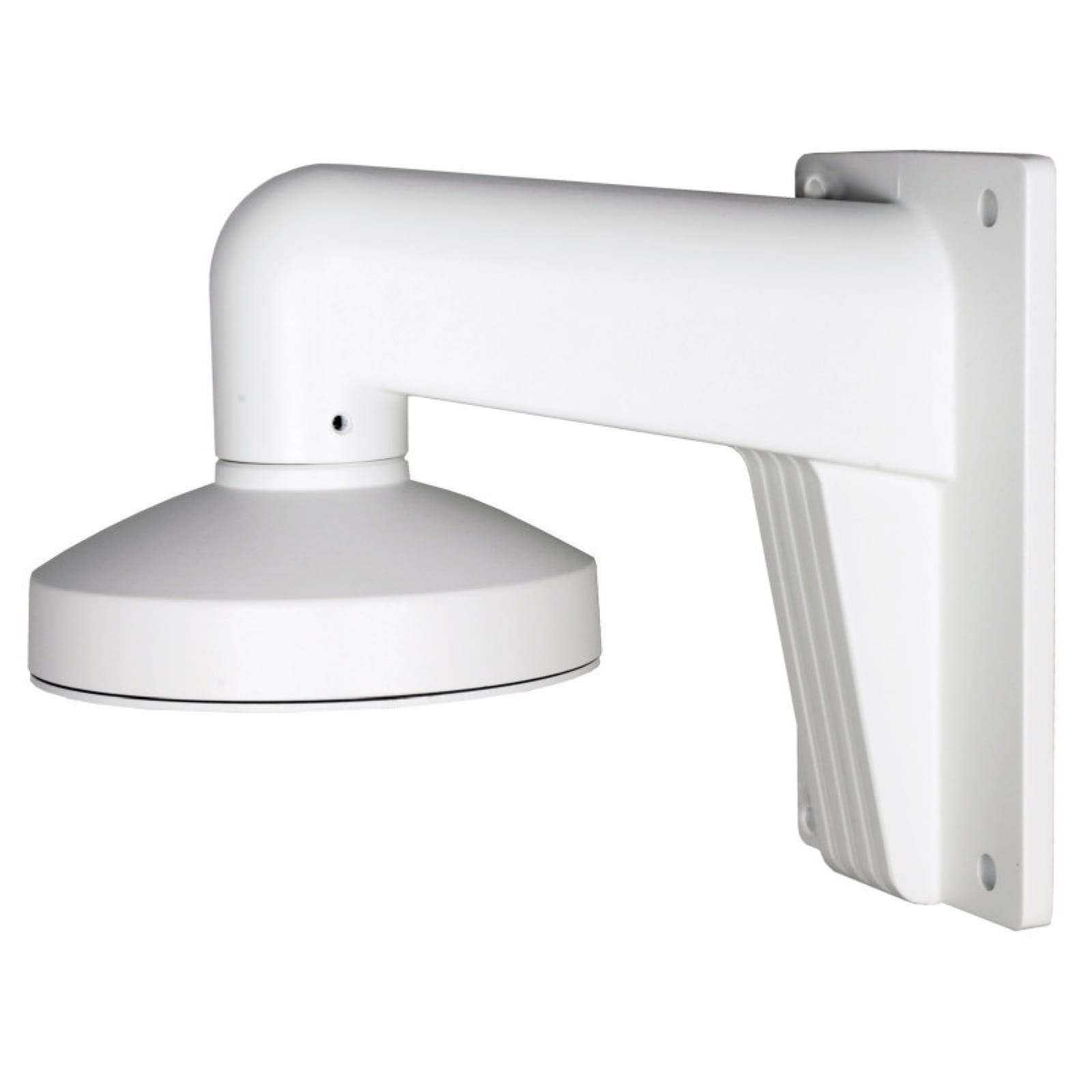

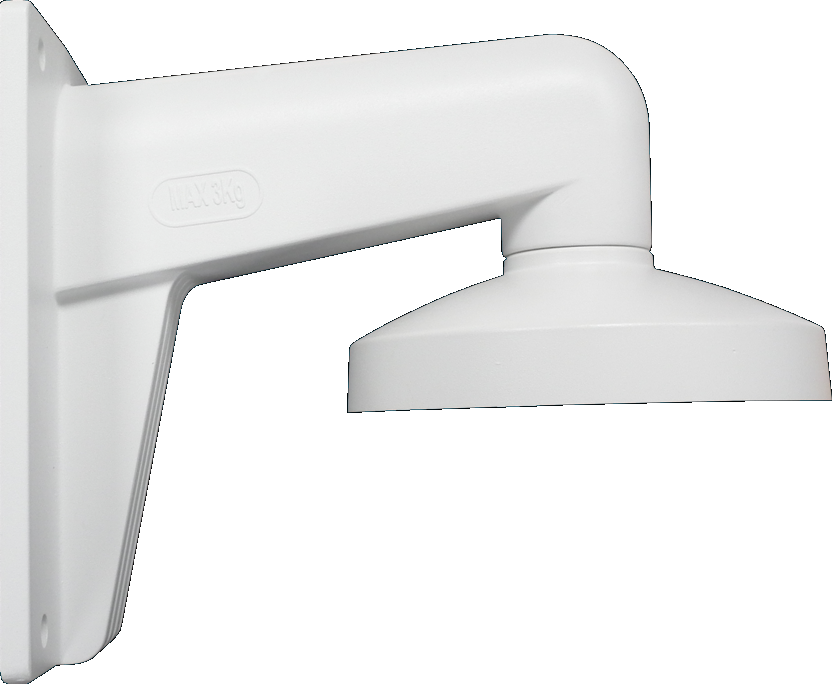

DS-1273ZJ-135      Wall Mounting Bracket for Dome Camera  Features:   Aluminum alloy material with surface spray  treatment   Design of cable entrance hole   Better water proof design   Convenient installation coordinating with adaptor  cap  Dimension:    Order Model:  DS-1273ZJ-135  Parameter:  Model    Parameters  DS-1273ZJ-135  Wall Mounting Bracket for  Dome Camera  Appearance Hikvision White  Range of  Application  Suitable for dome camera wall mounting  Material Aluminum Alloy  Dimension Φ136x183.5x230mm  Weight 704g  Notice:   The bracket should be installed on flat wall   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG  Model Suitable:  DS-2CC52X1P(N)-VP, DS-2CC52X1P(N)-AVPIR2,  DS-2CD2712F-I(S), DS-2CD2732F-I(S)  Installation Step:  ① Choose appropriate wall  to install the bracket and  thread the cable  ② Fix adaptor to bracket and  thread the cable  ③ Screw up and complete  the fixation...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-1473ZJ-155

Ersatzproduktcode: 302701859

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1273ZJ-135


Wall Mounting Bracket for Dome Camera
Features:
 Aluminum alloy material with surface spray
treatment
 Design of cable entrance hole
 Better water proof design
 Convenient installation coordinating with adaptor
cap
Dimension:

Order Model:
DS-1273ZJ-135
Parameter:
Model

Parameters
DS-1273ZJ-135
Wall Mounting Bracket for
Dome Camera
Appearance Hikvision White
Range of
Application
Suitable for dome camera wall mounting
Material Aluminum Alloy
Dimension Φ136x183.5x230mm
Weight 704g
Notice:
 The bracket should be installed on flat wall
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CC52X1P(N)-VP, DS-2CC52X1P(N)-AVPIR2,
DS-2CD2712F-I(S), DS-2CD2732F-I(S)
Installation Step:
① Choose appropriate wall
to install the bracket and
thread the cable
② Fix adaptor to bracket and
thread the cable
③ Screw up and complete
the fixation of adaptor
④ Take off lower dome
and lining





A: Cable entry hole

B: Fastening screw







⑤ Install dome module to
adaptor cap and fix with
screw
⑥ Install lining to inner module
and adjust view of angle

⑦ Install lower dome to
module and screw up
⑧ Installation complete









Note: The actual bracket may vary from the picture above.
