DS-1280ZJ-BQ30

DS-1280ZJ-BQ30  Junction Box for Dome Camera    Features   Aluminum alloy material with surface spray treatment   Side outlet and bottom outlet   The bottom waterproof cover and the side gland nut are interchangeable   Waterproof design  Dimension  7x M4  Depth: 10 mm (0.4")  83.5 mm (3.3")46 mm (1.8")  83  .5  mm  (3  .3  ")  42 mm (1.7")  162  .5  mm  (6  .4  ")  46  mm  (1  .8  ")  Φ137 mm (5.4")  Φ116 mm (4.6")    Available Model  DS-1280ZJ-PT6  Parameter  Model    Parameters  DS-1280ZJ-PT6  Wall Mounting for Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ137 mm x 42 mm (5.4" x 1.7")  Weight 280 g (0.62 lb.)  Notes   The Junction box should be installed on the flat surface.   Waterproof rubber is necessary for outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mounting  bracket.   The maximum load capacity of the bracket is 4.5KG (9.9 lb.)....

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1280ZJ-BQ30

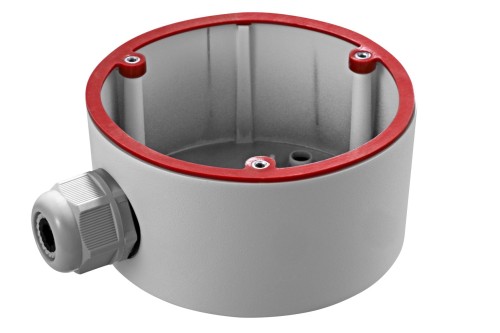

Junction Box for Dome Camera

Features
 Aluminum alloy material with surface spray treatment
 Side outlet and bottom outlet
 The bottom waterproof cover and the side gland nut are interchangeable
 Waterproof design
Dimension
7x M4
Depth: 10 mm (0.4")
83.5 mm (3.3")46 mm (1.8")
83
.5
mm
(3
.3
")
42 mm (1.7")
162
.5
mm
(6
.4
")
46
mm
(1
.8
")
Φ137 mm (5.4")
Φ116 mm (4.6")

Available Model
DS-1280ZJ-PT6
Parameter
Model

Parameters
DS-1280ZJ-PT6
Wall Mounting for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ137 mm x 42 mm (5.4" x 1.7")
Weight 280 g (0.62 lb.)
Notes
 The Junction box should be installed on the flat surface.
 Waterproof rubber is necessary for outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mounting
bracket.
 The maximum load capacity of the bracket is 4.5KG (9.9 lb.).
