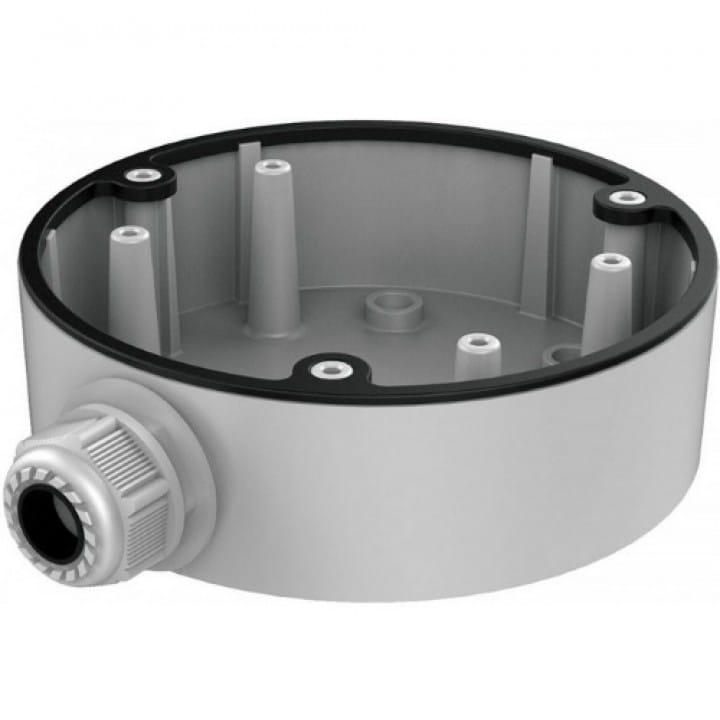

DS-1280ZJ-DM46(BLACK)

DS-1280ZJ-DM46   Junction Box      Feature   Aluminum alloy material with surface spray treatment   Supports bottom outlet, and side outlet   Applies to both indoor conditions, and outdoor conditions    Dimension  37.22 mm  (1.47")  150  .74  mm  (5  .93  "  )  120  °Ø 83.5 mm  (Ø 3.29")      Available Model  DS-1280ZJ-DM46  Parameter  Model    Parameters  DS-1280ZJ-DM46  Junction Box  Appearance Hikvision White  Material Aluminum Alloy  Dimension Ø 120 mm x 37.2 mm (Ø 4.72" x 1.46")  Weight 250 g (0.55 lb.)  Note   The junction box should be installed on the flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the junction box.   The junction box’s maximum load capacity is 4.5 kg (9.92 lb.)....

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1280ZJ-DM46
Junction Box


Feature
 Aluminum alloy material with surface spray treatment
 Supports bottom outlet, and side outlet
 Applies to both indoor conditions, and outdoor conditions

Dimension
37.22 mm
(1.47")
150
.74
mm
(5
.93
"
)
120
°Ø 83.5 mm
(Ø 3.29")


Available Model
DS-1280ZJ-DM46
Parameter
Model

Parameters
DS-1280ZJ-DM46
Junction Box
Appearance Hikvision White
Material Aluminum Alloy
Dimension Ø 120 mm x 37.2 mm (Ø 4.72" x 1.46")
Weight 250 g (0.55 lb.)
Note
 The junction box should be installed on the flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the junction box.
 The junction box’s maximum load capacity is 4.5 kg (9.92 lb.).
