DS-1280ZJ-DM55(BLACK)

DS-1280ZJ-DM55-Black  Junction Box      Features   Aluminum alloy with surface spray treatment   With cable outlet(s)   Applied to both indoor conditions, and outdoor conditions  Dimension  Φ 83.5 mm ± 0.1 mm  (3.29'' ± 0.004'')  46  mm ±  0  .1  mm  (1  .81  ''  ±  0  .004  '')  35 mm  (1.38'')  46 mm ± 0.1 mm  (1.81'' ± 0.004'')  Φ  83  .5  mm ±  0  .1  mm  (3  .29  ''  ±  0  .004  '')      Available Model  DS-1280ZJ-DM55-Black  Parameter  Model    Parameters  DS-1280ZJ-DM55-Black  Junction Box  Appearance Hikvision Black  Material Alloy  Dimension Φ 155.02 mm x 35 mm (Φ 6.10" x 1.38")  Weight Approx. 300 g (0.66 lb.)  Notes   The mount should be installed on a flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the  junction box.   The maximum load capacity of the junction box is 2 kg (4.4 lb.)....

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

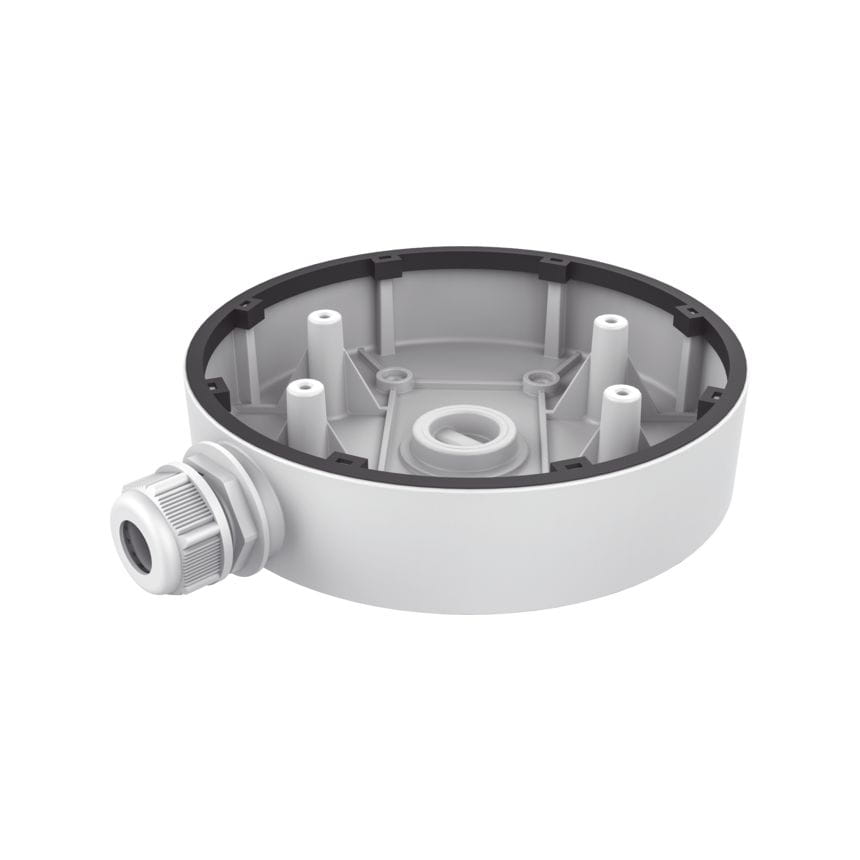

DS-1280ZJ-DM55-Black
Junction Box


Features
 Aluminum alloy with surface spray treatment
 With cable outlet(s)
 Applied to both indoor conditions, and outdoor conditions
Dimension
Φ 83.5 mm ± 0.1 mm
(3.29'' ± 0.004'')
46
mm ±
0
.1
mm
(1
.81
''
±
0
.004
'')
35 mm
(1.38'')
46 mm ± 0.1 mm
(1.81'' ± 0.004'')
Φ
83
.5
mm ±
0
.1
mm
(3
.29
''
±
0
.004
'')


Available Model
DS-1280ZJ-DM55-Black
Parameter
Model

Parameters
DS-1280ZJ-DM55-Black
Junction Box
Appearance Hikvision Black
Material Alloy
Dimension Φ 155.02 mm x 35 mm (Φ 6.10" x 1.38")
Weight Approx. 300 g (0.66 lb.)
Notes
 The mount should be installed on a flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the
junction box.
 The maximum load capacity of the junction box is 2 kg (4.4 lb.).
