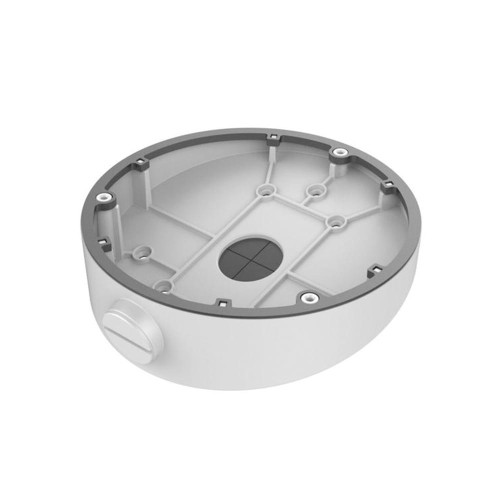

DS-1281ZJ-DM27
Inclined Ceiling Mount Bracket for
Dome Camera

Features:
 Enhanced plastic material
 Inclined ceiling mount bracket for dome
camera.
 Cable hole on bracket makes the feature
better
Dimension:




Order Model:
DS-1281ZJ-DM27
Parameter:
Model

Parameters
DS-1281ZJ-DM27
Inclined Ceiling Mount Bracket for
Dome Camera
Appearance Hikvision White
Material Plastic
Dimension 111.8x40.5x108.3mm
Weight 45.8g
Notice:
 The bracket should be installed on flat wall
 Waterproof rubber is necessary for outdoor application
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG


Note: The actual bracket may vary from the picture above.
*G3/ 4
underport
?24.5±0.001
15°±0°
?108.3±0.001
?24.106±0.00156±0.001
*80.6±0.001
26.002±0.001
3-R39.5±0.001
*0.95±0.001
*1.75±0.001
（6.849±0.001）
1±0.001
1.7±0.001
