DS-1281ZJ-DM45

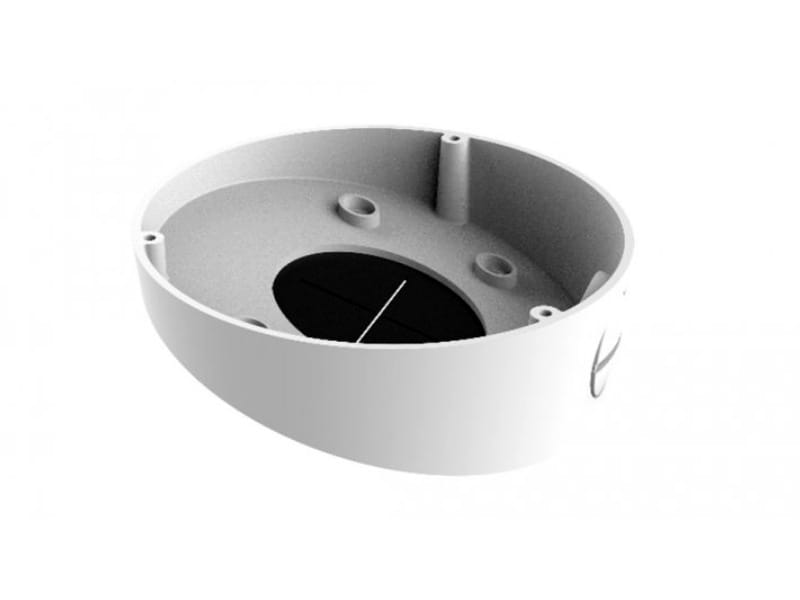

Inclined Ceiling Mount


Features
 Aluminum alloy with surface spray treatment
 Side inlet, and bottom inlet
 Applies to both indoor conditions, and outdoor conditions
Dimension
Ø 130 mm
(5.12" )
46
mm
(1
.81
)
Ø
139
.67
mm
(5
.50
)
Ø 48.26 mm
(1.90 )
3-M4
Depth: 8 mm
(0.31")
83.6 mm (3.29 )


Available Model
DS-1281ZJ-DM45
Parameter
Model

Parameters
DS-1281ZJ-DM45
Inclined Ceiling Mount
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ139.67 mm x 48.26 mm (5.50" x 1.90")
Weight Approx.: 190 g (0.46 lb.)
Notes
 The mount should be installed on the flat surface.
 The waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the
mount.
 The maximum load capacity of the mount is 3 kg (6.6 lb.).


0100001080511
