DS-1473ZJ-155

DS -14 73 ZJ-155  Wall Mount for Dome Camera  Feature  Aluminum alloy with surface spray treatment  The cap facilitates the installation  Waterproof design  Dimension 240 mm (9.45")  83.5 mm (3.29")  46 mm  (1.81")  120 mm (4.72")  85.7 mm  (3.37")  183.5 mm (7.22")  158 mm  (6.22")  Ø 155 mm (6.1")  83.5 mm  (3.29")  6-M4 Depth: 8 mm  (0.31")  4-Ø 8.5 mm  (0.33")    Available Model  DS -14 73 ZJ-155  Parameter  Model  Parameters    DS -14 73 ZJ-155  Wall Mount for Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension Ø155 mm x 183.5 mm x 240 mm (6.1" x 7.2 2" x 9.45 ")  Weight 650 g (1.4 lb.)  No te  The mount should be installed on the flat surface.  The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mount.  The mount ’s maximum load capacity is 3 Kg (6.6 lb.)....

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

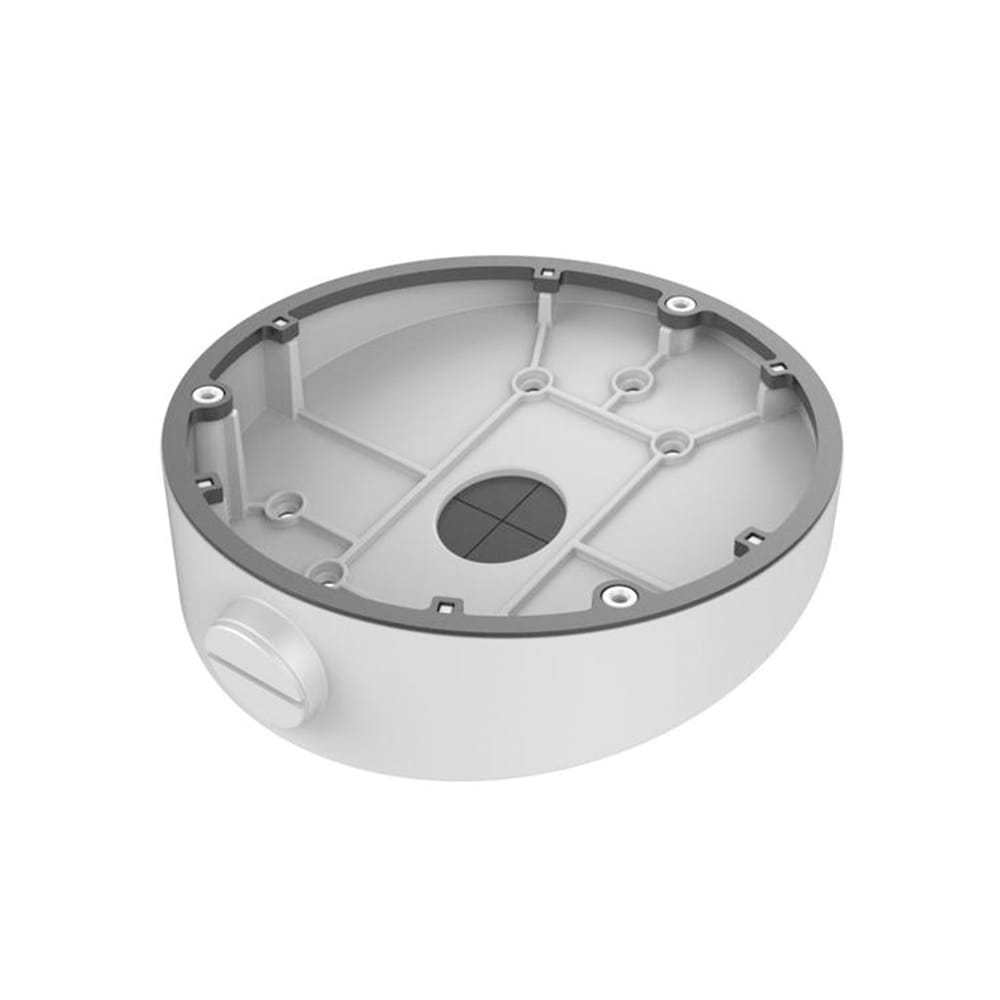

DS -14 73 ZJ-155
Wall Mount for Dome Camera
Feature
Aluminum alloy with surface spray treatment
The cap facilitates the installation
Waterproof design
Dimension 240 mm (9.45")
83.5 mm (3.29")
46 mm
(1.81")
120 mm (4.72")
85.7 mm
(3.37")
183.5 mm (7.22")
158 mm
(6.22")
Ø 155 mm (6.1")
83.5 mm
(3.29")
6-M4 Depth: 8 mm
(0.31")
4-Ø 8.5 mm
(0.33")

Available Model
DS -14 73 ZJ-155
Parameter
Model
Parameters

DS -14 73 ZJ-155
Wall Mount for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Ø155 mm x 183.5 mm x 240 mm (6.1" x 7.2 2" x 9.45 ")
Weight 650 g (1.4 lb.)
No te
The mount should be installed on the flat surface.
The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mount.
The mount ’s maximum load capacity is 3 Kg (6.6 lb.).
