DS-1603ZJ-Corner-P

‘    DS-1603ZJ-Corner-P  Corner Mount    Feature   Aluminum alloy and steel with surface spray treatment   The hook for safety rope facilitates camera’s installation   Applies to both indoor conditions, and outdoor conditions  Dimension  176.1 mm (6.93" )  194  mm  (7.64  " )  143  mm  (5.63  " )  4-Ø 9 mm (0.35" )  473.1 mm (18.63" )  364.1 mm (14.33" )  10  mm  (0.39  " )  112  mm  (4.4" )  90°      Available Model  DS-1603ZJ-Corner-P  Parameter  Model    Parameters  DS-1603ZJ-Corner-P  Corner Mount  Appearance Platinum Gray  Material Aluminum alloy, and Steel  Dimension 473.1 mm x 194 mm x 176.1 mm (18.63" x 7.64" x 6.93")  Weight 2920 g (6.44 lb.)  Note   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.   The mount’s maximum load capacity is 20 kg (44 lb.).    0100001080427...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

‘

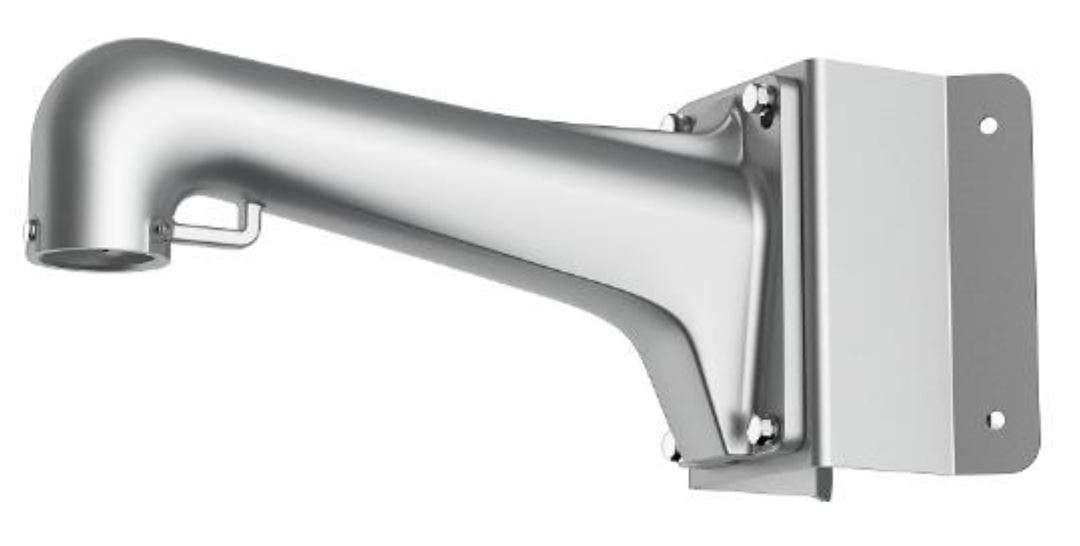

DS-1603ZJ-Corner-P
Corner Mount

Feature
 Aluminum alloy and steel with surface spray treatment
 The hook for safety rope facilitates camera’s installation
 Applies to both indoor conditions, and outdoor conditions
Dimension
176.1 mm (6.93" )
194
mm
(7.64
" )
143
mm
(5.63
" )
4-Ø 9 mm (0.35" )
473.1 mm (18.63" )
364.1 mm (14.33" )
10
mm
(0.39
" )
112
mm
(4.4" )
90°


Available Model
DS-1603ZJ-Corner-P
Parameter
Model

Parameters
DS-1603ZJ-Corner-P
Corner Mount
Appearance Platinum Gray
Material Aluminum alloy, and Steel
Dimension 473.1 mm x 194 mm x 176.1 mm (18.63" x 7.64" x 6.93")
Weight 2920 g (6.44 lb.)
Note
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
 The mount’s maximum load capacity is 20 kg (44 lb.).

0100001080427
