DS-1603ZJ-P

DS - 1603ZJ- P  Wall Mount for Pano Vu    Feature   Aluminum alloy with surface spray treatment   The hook for safety rope facilitates camera ’ s installation   Waterproof design  Dimension        364.1 mm (14.3")  182 mm (7.2")  160 mm (6.3")  98 mm (3.9")  75 mm (3.0")  10 mm (0.39")  10 mm (0.39")  2-Φ 9 mm  (0.35")  2-Φ 9 mm  (0.35")  2-Φ 12  mm (0.47")    Available Model  DS- 1 603 ZJ - P  Parameter  Model    Parameters    DS- 1 603ZJ- P  Wall Mount for Pano Vu  Appearance Hikvision Gray  Material Aluminum Alloy  Dimension 364.1 mm x 182.0 mm (14.3" x 7.2")  Weight 1400 g (3.09 lb.)  No te   The mount should be installed on the flat surface .   The waterproof rubber is necessary for the outdoor application .   The wall must be ca...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

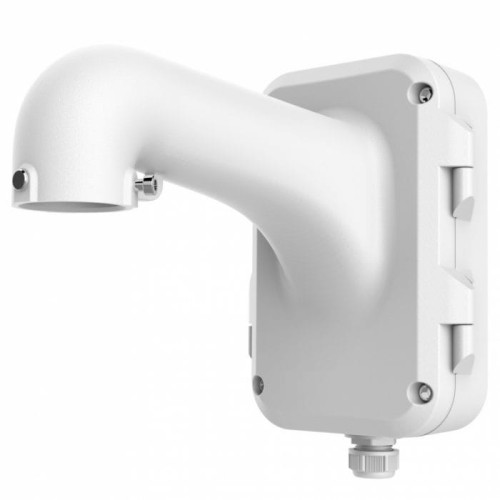

DS - 1603ZJ- P
Wall Mount for Pano Vu

Feature
 Aluminum alloy with surface spray treatment
 The hook for safety rope facilitates camera ’ s installation
 Waterproof design
Dimension



364.1 mm (14.3")
182 mm (7.2")
160 mm (6.3")
98 mm (3.9")
75 mm (3.0")
10 mm (0.39")
10 mm (0.39")
2-Φ 9 mm
(0.35")
2-Φ 9 mm
(0.35")
2-Φ 12
mm (0.47")

Available Model
DS- 1 603 ZJ - P
Parameter
Model

Parameters

DS- 1 603ZJ- P
Wall Mount for Pano Vu
Appearance Hikvision Gray
Material Aluminum Alloy
Dimension 364.1 mm x 182.0 mm (14.3" x 7.2")
Weight 1400 g (3.09 lb.)
No te
 The mount should be installed on the flat surface .
 The waterproof rubber is necessary for the outdoor application .
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mount .
 The mount ’ s maximum load capacity is 20 K g ( 44 lb.).
