DS-1604ZJ-BOX-POLE  Vertical Pole Mount for Speed Dome    Feature   Vertical pole mount with the junction box   Aluminum alloy and steel with surface spray treatment   Adjustable diameter from 100 mm to 200 mm   Bottom outlet, and back outlet   Able to place the power adapter (AC 24 V, 3 A) in the junction box   The hook for safety rope facilitates speed dome’s installation  Dimension  456.5 mm (17.97" )  393.5 mm (15.50" )  3  1  4    m  m    (  1  2  .  3  6  "    )  1  9  4  .  9    m  m    (  7  .  6  7  "    )  100 mm to 200 mm  (3.94" to 7.87" )  8  4  .  3    m  m    (  3  .  3  2  "    )  9  0  °    1  0    m  m    (  0  .  3  9  "    )      Available Model  DS-1604ZJ-BOX-POLE  Parameter  Model    Parameters  DS-1604ZJ-BOX-POLE  Vertical Pole Mount for Speed Dome  Appearance Hikvision White  Material Aluminum Alloy and Steel  Dimension 456.5 mm x 314 mm x 194.9 mm (17.97" x 12.36" x 7.67")  Weight 5.7 kg (12.57 lb.)  Note   The mount should...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-1602ZJ-BOX-POLE

Ersatzproduktcode: 302700813

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1604ZJ-BOX-POLE

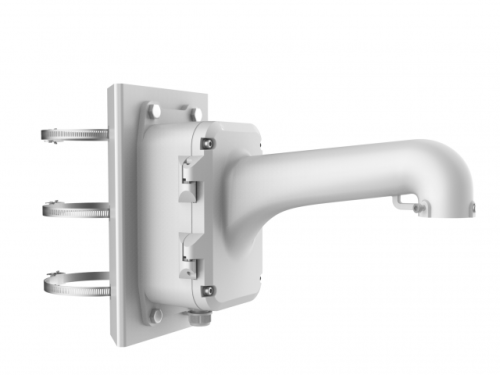

Vertical Pole Mount for Speed Dome

Feature
 Vertical pole mount with the junction box
 Aluminum alloy and steel with surface spray treatment
 Adjustable diameter from 100 mm to 200 mm
 Bottom outlet, and back outlet
 Able to place the power adapter (AC 24 V, 3 A) in the junction box
 The hook for safety rope facilitates speed dome’s installation
Dimension
456.5 mm (17.97" )
393.5 mm (15.50" )
3
1
4

m
m

(
1
2
.
3
6
"

)
1
9
4
.
9

m
m

(
7
.
6
7
"

)
100 mm to 200 mm
(3.94" to 7.87" )
8
4
.
3

m
m

(
3
.
3
2
"

)
9
0
°

1
0

m
m

(
0
.
3
9
"

)


Available Model
DS-1604ZJ-BOX-POLE
Parameter
Model

Parameters
DS-1604ZJ-BOX-POLE
Vertical Pole Mount for Speed Dome
Appearance Hikvision White
Material Aluminum Alloy and Steel
Dimension 456.5 mm x 314 mm x 194.9 mm (17.97" x 12.36" x 7.67")
Weight 5.7 kg (12.57 lb.)
Note
 The mount should be installed on the flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome, and the mount.
 The mount’s maximum load capacity is 10 kg (22 lb.).
