DS - 1604ZJ-BOX

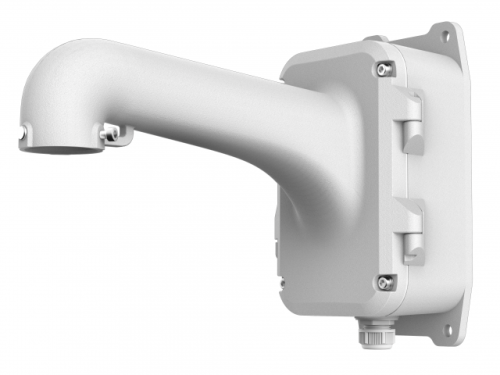

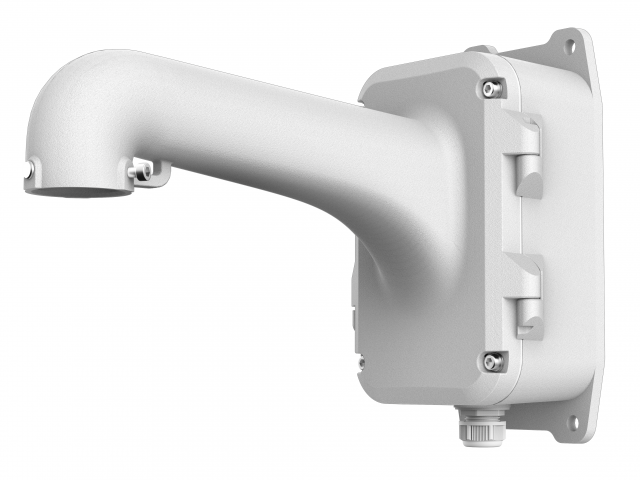

Wall Mounting Bracket for Speed Dome

Feature
 Wall mounting bracket with the junction b ox
 Aluminum alloy material with surface spray treatment
 Supports bottom outlet and back outlet
 Able to place the power adapter (AC 24 V, 3 A) in the junction box
 The hook for safety rope facilitates speed dome ’ s installation
Dimension

395.5 mm (15.6")

10 mm (0.39")

281.2 mm (11.07")

278.8 mm (10.98")

170.7 mm (6.72")

94 mm (3.7")

252 mm (9.92
"
)

4-Φ11 mm
(0.43")

Available Model
DS- 1 604 ZJ -BOX
Parameter
Model

Parameters

DS- 1 604ZJ-BOX
Wall Mounting Bracket for Speed Dome
Appearance Hikvision White
Material Aluminum Alloy
Dimension 395.5 mm x 2 81. 2 mm x 170.7 mm ( 15.6 " x 11.07 " x 6.7 2")
Weight 2.15 Kg (4.74 lb.)
No te
 The bracket should be installed on the flat surface .
 Waterproof rubber is necessary for the outdoor application .
 The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the bracket.
 The bracket’s maximum load capacity is 10 Kg (22 lb.).
