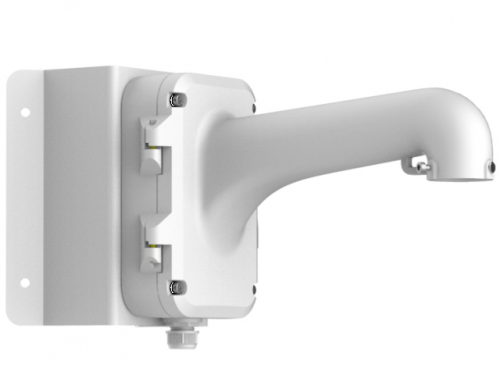

DS-1604ZJ-Corner

DS - 1604ZJ-Corner  Corner Mounting Bracket for Speed Dome    Feature   Corner mounting bracket with the junction b ox   Aluminum alloy and steel material with surface spray treatment   Waterproof design   Supports bottom outlet and back outlet   The hook for safety rope facilitates speed dome ’ s installation  Dimension    109.5 mm (4.31")    465 mm (18.31")    240 mm (9.45  "  )    261.8 mm (10.31  "  )    10 mm (0.39  "  )    206.8 mm (8.14")    90  °      150 mm (5.91  "  )    4-Φ 9 mm  (0.35")      DS- 1 604 ZJ -Corner  Parameter  Model    Parameters    DS-1604ZJ-Corner  Corner Mounting Bracket for Speed Dome  Appearance Hikvision White  Material Aluminum Alloy ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-1602ZJ-Corner

Ersatzproduktcode: 302700683

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS - 1604ZJ-Corner
Corner Mounting Bracket for Speed Dome

Feature
 Corner mounting bracket with the junction b ox
 Aluminum alloy and steel material with surface spray treatment
 Waterproof design
 Supports bottom outlet and back outlet
 The hook for safety rope facilitates speed dome ’ s installation
Dimension

109.5 mm (4.31")

465 mm (18.31")

240 mm (9.45
"
)

261.8 mm (10.31
"
)

10 mm (0.39
"
)

206.8 mm (8.14")

90
°


150 mm (5.91
"
)

4-Φ 9 mm
(0.35")


DS- 1 604 ZJ -Corner
Parameter
Model

Parameters

DS-1604ZJ-Corner
Corner Mounting Bracket for Speed Dome
Appearance Hikvision White
Material Aluminum Alloy and Steel
Dimension 465 mm x 206.8 mm x 261.8 mm (18.31" x 8.14" x 10.31")
Weight 4.3 Kg (9.48 lb.)
No te
 The bracket should be installed on the flat surface .
 Waterproof rubber is necessary for the outdoor application .
 The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the bracket.
 The bracket’s maximum load capacity is 10 Kg (22 lb.).
