DS - 1604ZJ-Pole

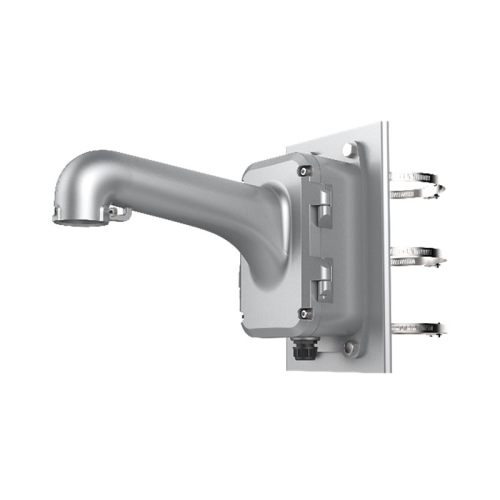

Vertical Pole Mounting Bracket for Speed Dome

Feature
 Vertical pole mounting bracket with the junction b ox
 Aluminum alloy and steel material with surface spray treatment
 Adjustable diameter from 67 mm to 127 mm
 Supports bottom outlet and back outlet
 The hook for safety rope facilitates speed dome ’ s installation
Dimension

355.5 mm (14.0")

170.7 mm (6.72")

157 mm (6.18")
261.8 mm (10.31")
240 mm (9.45")
43.4 mm
(1.71")
67 mm to 127 mm
(2.64" to 5")
75.8 mm
(2.98")
90°
10 mm (0.39")

Available Model
DS- 1 604 ZJ -Pole
Parameter
Model

Parameters

DS-1604ZJ-Pole
Vertical Pole Mounting Bracket for Speed Dome
Appearance Hikvision White
Material Aluminum Alloy and Steel
Dimension 355.5 mm x 261.8 mm x 170.7 mm (14" x 10.31" x 6.72")
Weight 3.8 Kg (8.38 lb.)
No te
 The bracket should be installed on the flat surface .
 Waterproof rubber is necessary for the outdoor application .
 The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the bracket.
 The bracket’s maximum load capacity is 10 Kg (22 lb.).
