DS-1662ZJ

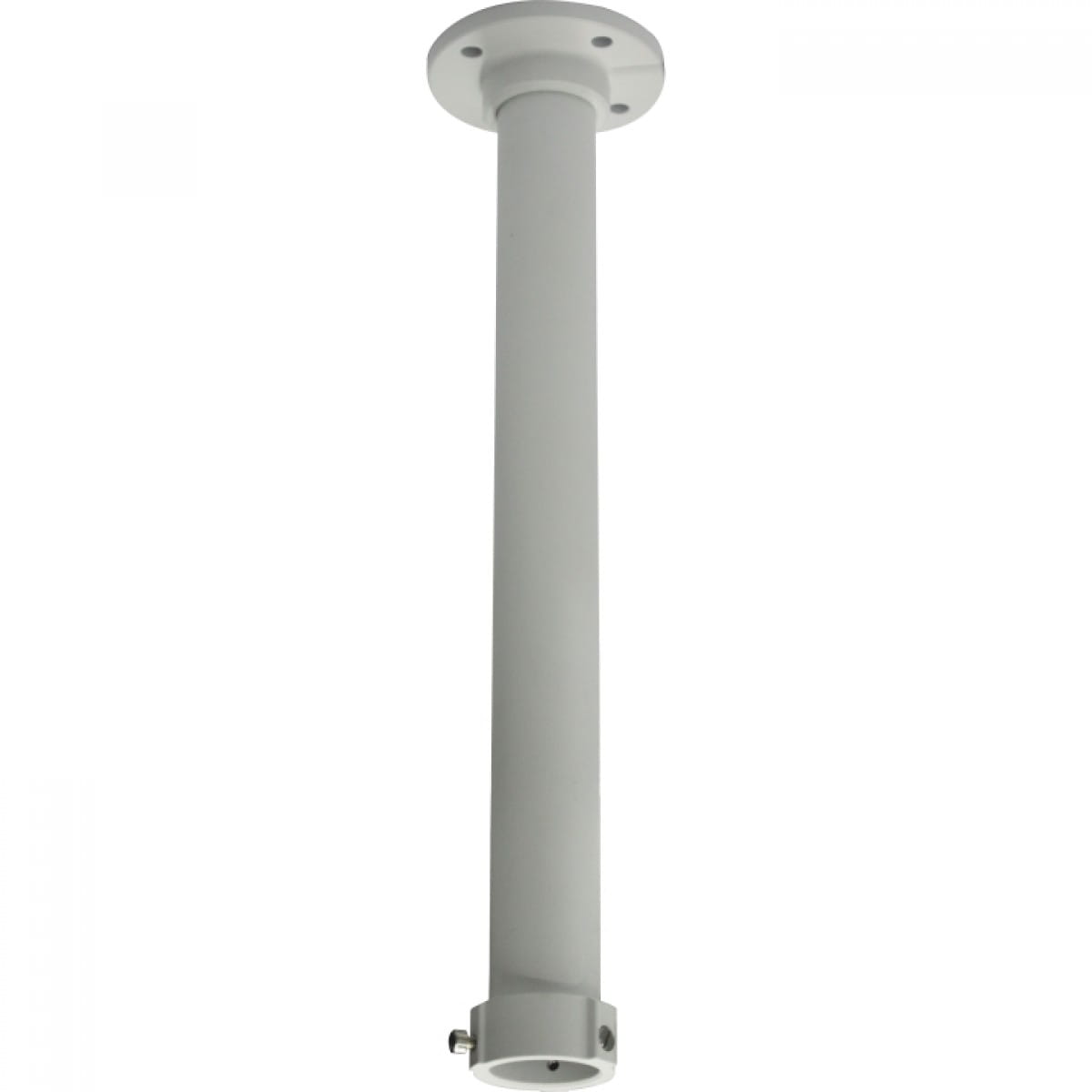

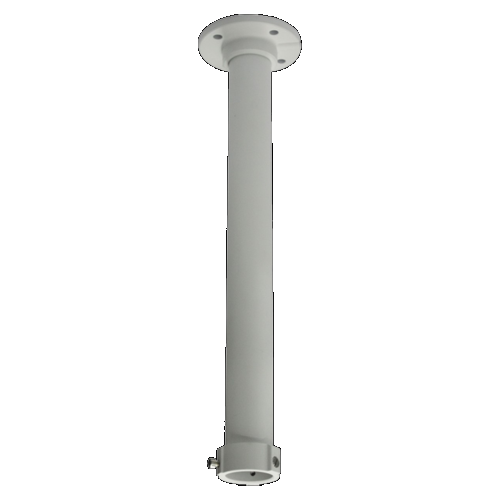

Pendent Mount Bracket
Features:
 Aluminum alloy material with surface spray
treatment
 General design for indoor/outdoor
 Design of cable entrance hole
 Better water proof with rubber pad design
 With safety rope, the assembling is safer and more
convenient
Dimension:





Order model:
DS-1662ZJ
Parameters:
Model
Parameter
DS-1662ZJ
Pendent Mount (50cm)
Color Hik white
Feature Suit for 500mm pendent mount
Material Aluminum alloy
Dimension 116.5x500mm
Weight 960g
Notice:
 Pay attention to the color matching when select bracket
 The bracket should be installed on the flat surface of a
wall
 The wall must be capable of supporting more than 3
times the total load of the camera and the mount.
The maximum load capacity of the mount is 30KG
Installation steps:
① Choose the appropriate wall to mount the ceiling, ② Twist and fix the screwed pipe after threading
and rubber blanket should be added when assembling outdoors

Note A: Waterproof rubber blanket Note B: Screw hole
③ Fasten the safety rope, thread the line and assemble the ④ Fasten the snap joint fixing screw
speed dome

C: Safety rope hook D: Safety rope E :Snap joint fixing screw.

Note: The figure of Speed Dome in “Installation Step” is only for your reference; please adhere to our real products.
Indoor
Outdoor
A
B
G1
1
2

D
C
E
