DS-1663ZJ

DS-1663ZJ  Ceiling Mounting Bracket Indoor/Outdoor  Features:   Aluminum alloy material with surface spray treatment   General design for indoor/outdoor   Design of cable entrance hole   Complementary rubber blanket pad for waterproofness  Dimension:  Order model:  DS-1663ZJ  Parameters:  Model  Parameter  DS-1663ZJ  Pendent Mounting Bracket In/Outdoor  Color Hik white  Feature  Suitable for speed dome ceiling mount  (not suitable for DS-2AE-714）  Material Aluminum alloy  Dimension 116.5x57mm  Weight 380g  Notice:   The bracket should be installed on the flat surface of a  wall   The wall must be capable of supporting more than 3  times the total load of the camera and the mount.   The maximum load capacity of the mount is 30KG  Installation steps:  ① Choose the appropriate wall to mount the ceiling plate, ② Fix adaptor to ceiling plate  and rubber blanket should be used when assembling outdoors    A: Waterproof rubber pad ...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1663ZJ

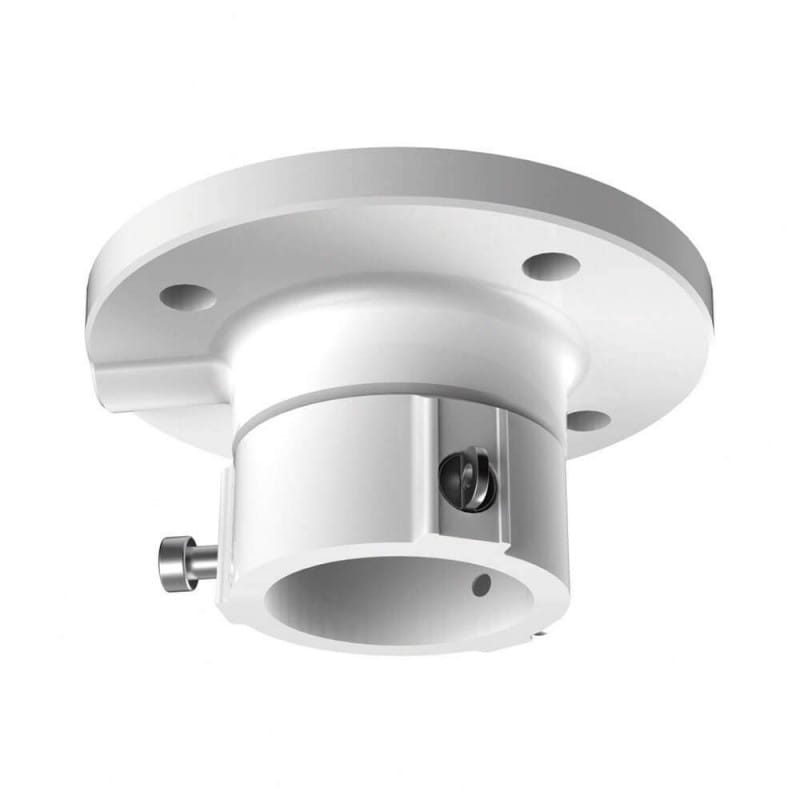

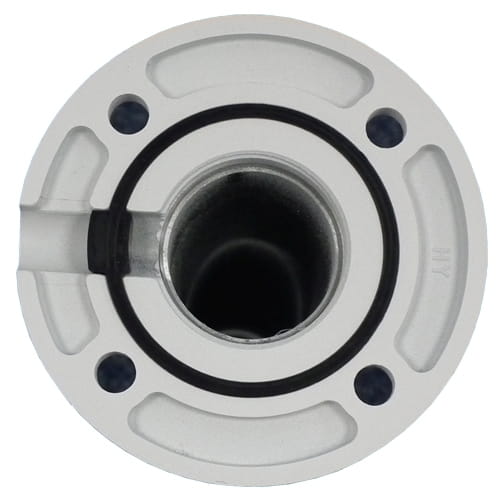

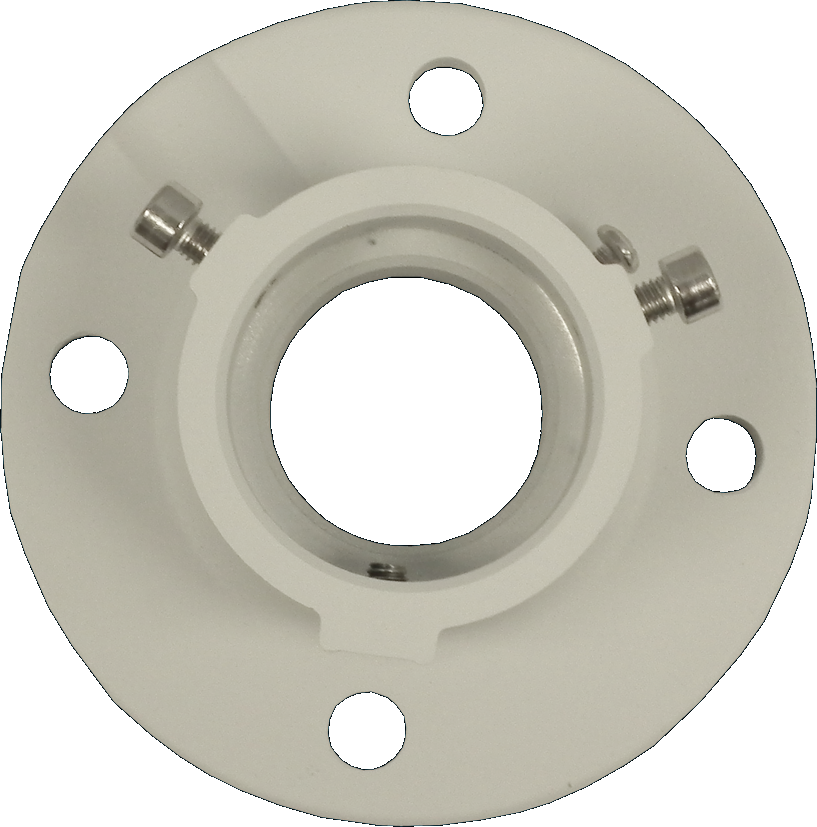

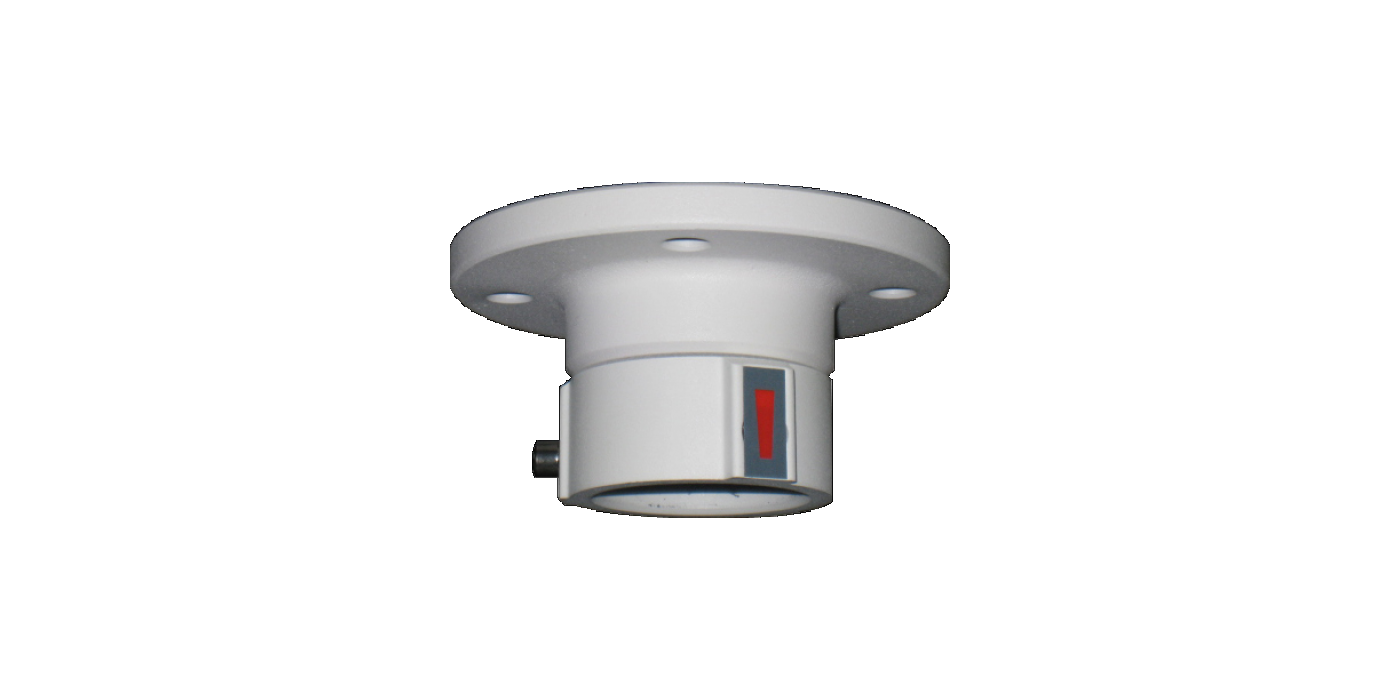

Ceiling Mounting Bracket Indoor/Outdoor
Features:
 Aluminum alloy material with surface spray treatment
 General design for indoor/outdoor
 Design of cable entrance hole
 Complementary rubber blanket pad for waterproofness
Dimension:
Order model:
DS-1663ZJ
Parameters:
Model
Parameter
DS-1663ZJ
Pendent Mounting Bracket In/Outdoor
Color Hik white
Feature
Suitable for speed dome ceiling mount
(not suitable for DS-2AE-714）
Material Aluminum alloy
Dimension 116.5x57mm
Weight 380g
Notice:
 The bracket should be installed on the flat surface of a
wall
 The wall must be capable of supporting more than 3
times the total load of the camera and the mount.
 The maximum load capacity of the mount is 30KG
Installation steps:
① Choose the appropriate wall to mount the ceiling plate, ② Fix adaptor to ceiling plate
and rubber blanket should be used when assembling outdoors

A: Waterproof rubber pad B: Tightening screw C: Adaptor
③ Fix with tightening screw, thread the cable and ④ Tighten up the set screw and complete the installation
Install the speed dome








D: Set screw

Note: The actual bracket may vary from the picture above.
Indoor
Outdoor
A


B
C


D
