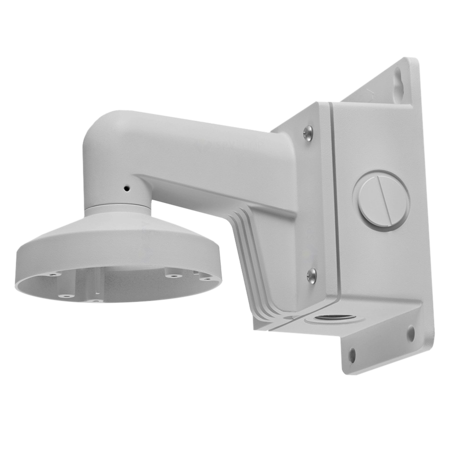

DS-1674ZJ

DS-1674ZJ  Power Box      Features   Aluminum alloy with surface spray treatment   With cable outlet(s)   Applies to both indoor conditions, and outdoor conditions  Dimension  21 mm  (0.83'')11  mm  (0  .43  '')  75 mm  (2.95'')  177.12 mm (6.78'')  209 mm (8.23'')  4-M8 16 depth  14  mm  (0  .55  '')  158  mm  (6  .22  '')  238  .8  mm  (9  .40  '')  280  mm  (11  .02  '')  310  mm  (12  .20  '')  89 mm  (3.50'')      Available Model  DS-1674ZJ  Parameter  Model    Parameters  DS-1674ZJ  Power Box  Appearance Hikvision White  Material Aluminum Alloy  Dimension 310 mm x 208.9 mm x 89 mm (12.20" x 8.22" x 3.50")  Weight 2380 g (5.25 lb.)  Notes   The power box should be installed on the flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the power  box.   The maximum load capacity of the power box is 10 kg (22.05 lb.)....

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-1674ZJ
Power Box


Features
 Aluminum alloy with surface spray treatment
 With cable outlet(s)
 Applies to both indoor conditions, and outdoor conditions
Dimension
21 mm
(0.83'')11
mm
(0
.43
'')
75 mm
(2.95'')
177.12 mm (6.78'')
209 mm (8.23'')
4-M8 16 depth
14
mm
(0
.55
'')
158
mm
(6
.22
'')
238
.8
mm
(9
.40
'')
280
mm
(11
.02
'')
310
mm
(12
.20
'')
89 mm
(3.50'')


Available Model
DS-1674ZJ
Parameter
Model

Parameters
DS-1674ZJ
Power Box
Appearance Hikvision White
Material Aluminum Alloy
Dimension 310 mm x 208.9 mm x 89 mm (12.20" x 8.22" x 3.50")
Weight 2380 g (5.25 lb.)
Notes
 The power box should be installed on the flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the power
box.
 The maximum load capacity of the power box is 10 kg (22.05 lb.).
