DS-1696ZJ-Y
product unavailable
zur Wunschliste hinzufügen
Beschreibung
DS-1696ZJ-Y Pendant Mount Feature Stainless steel with anti-corrosion spray treatment With cable outlet(s) Dimension Φ 12 mm (0.47'') 85 mm ( 3 .35 '' ) 85 mm (3.35'') 331 mm (13.03'') 3-M6 10 mm ( 0 .39 '' )Φ 53 mm (2.09'') Φ 63 mm (2.48'') Φ 47.6 mm (1.87'') Depth 20 mm (0.79'') Available Model DS-1696ZJ-Y Parameter Model Parameters DS-1696ZJ-Y Pendant Mount Appearance Silver Material Stainless Steel Dimension 160 mm x 160 mm x 331 mm (6.30’’ x 6.30’’ x 13.03’’) Weight Approx. 1892 g (4.17 lb.) Note The mount should be installed on a flat surface. Waterproof rubber is necessary for the outdoor application. The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the mount is 15 kg (33.07 lb.)....
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:

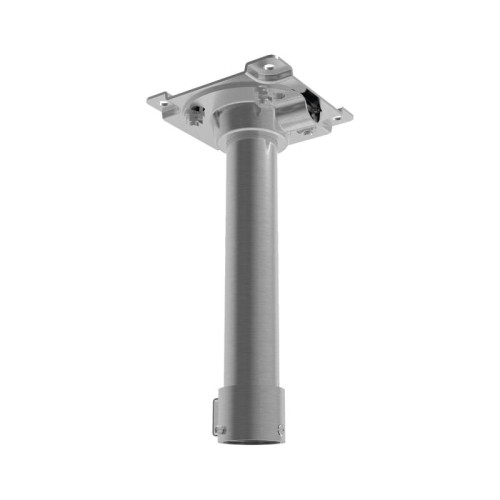

DS-1696ZJ-Y
Pendant Mount
Feature
Stainless steel with anti-corrosion spray treatment
With cable outlet(s)
Dimension
Φ 12 mm
(0.47'')
85
mm
(
3
.35
''
)
85 mm
(3.35'')
331 mm (13.03'')
3-M6
10
mm
(
0
.39
''
)Φ 53 mm
(2.09'')
Φ 63 mm
(2.48'')
Φ 47.6 mm (1.87'')
Depth 20 mm (0.79'')
Available Model
DS-1696ZJ-Y
Parameter
Model
Parameters
DS-1696ZJ-Y
Pendant Mount
Appearance Silver
Material Stainless Steel
Dimension 160 mm x 160 mm x 331 mm (6.30’’ x 6.30’’ x 13.03’’)
Weight Approx. 1892 g (4.17 lb.)
Note
The mount should be installed on a flat surface.
Waterproof rubber is necessary for the outdoor application.
The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the mount.
The maximum load capacity of the mount is 15 kg (33.07 lb.).
