DS-1697ZJ-Y

DS -1697ZJ -Y  Wall Mount    Feature   Anti -corrosion design for adverse environments   The safety rope enables convenient installation  Dimension 328  .4  mm  (12  .93  '')  126 mm (4.96'')  A  120  mm  (4  .72  '')  11 mm  (0.43'')  Φ 6.5 mm  (0.26'')  Φ 13.5 mm  (0.53'')  79  mm  (3  .11  '')  Φ 8 mm  (0.31'')  Φ 13.5 mm  (0.53'')  A  100 mm (3.94'')  328.4 mm (12.93'')  3-M6  Φ 47.6 mm  (1.87'')53 mm  (2.09'')  Φ 63 mm (2.48'')  10  mm  (0  .39  '')  222  mm  (8  .74  '')      Available Model  DS -1697ZJ-Y  Parameter  Model    Parameters    DS -1697ZJ-Y  Wall Mount  Appearance Silver  Material SUS316L  Dimension 126 mm x 222 mm x 328 mm (4.96 " x 8.74 " x 12.93 ")  Weight Approx. 2307 g (5.09 lb.)  No te   The mount should be installed on a flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.   The maximum load capacity of the mount is 8 kg (17.64 lb.)....

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

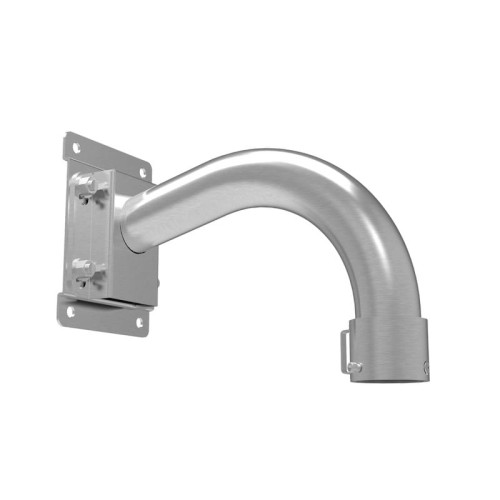

DS -1697ZJ -Y
Wall Mount

Feature
 Anti -corrosion design for adverse environments
 The safety rope enables convenient installation
Dimension 328
.4
mm
(12
.93
'')
126 mm (4.96'')
A
120
mm
(4
.72
'')
11 mm
(0.43'')
Φ 6.5 mm
(0.26'')
Φ 13.5 mm
(0.53'')
79
mm
(3
.11
'')
Φ 8 mm
(0.31'')
Φ 13.5 mm
(0.53'')
A
100 mm (3.94'')
328.4 mm (12.93'')
3-M6
Φ 47.6 mm
(1.87'')53 mm
(2.09'')
Φ 63 mm (2.48'')
10
mm
(0
.39
'')
222
mm
(8
.74
'')


Available Model
DS -1697ZJ-Y
Parameter
Model

Parameters

DS -1697ZJ-Y
Wall Mount
Appearance Silver
Material SUS316L
Dimension 126 mm x 222 mm x 328 mm (4.96 " x 8.74 " x 12.93 ")
Weight Approx. 2307 g (5.09 lb.)
No te
 The mount should be installed on a flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
 The maximum load capacity of the mount is 8 kg (17.64 lb.).
