DS-1H18S/E-E

DS-1H18S/E-E HD Video Balun       Screw interface with cable and without cable   Mini size for easy installation   ABS outer shell for convenient to use in intensive project   No power required, and simplified project wiring   Plug and play, real-time transmit CCTV HD video signal, and high quality and stable video   Compatible with HDTVI/HDCVI/AHD   Transmission distance: non-POC Camera: Max. 200m.   Superior anti-interference and lighting protection and ESD    Features and Functions                Model DS-1H18S/E-E  Properties  Transmission Signal 1 channel  Transmission Distance Non-POC Camera: Max 200m  Category Type UTP CAT 5E/ 6 (R<100Ω/100M)  Video  Transmission  Properties and  Port  Coaxial Video Connector BNC-M  Twisted-pair Video  Connector  Screw Interface  Compatible Format HDTVI/HDCVI/AHD  Resolution 720P/1080P/3MP/4MP/5MP  Ant-interference >60db  Protection  ESD  1a contact discharge electricity level3  1b air discharge electricity level3  Per: IEC61000-4-2  Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5  UTP Cable Connector  2KV(different-code), ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

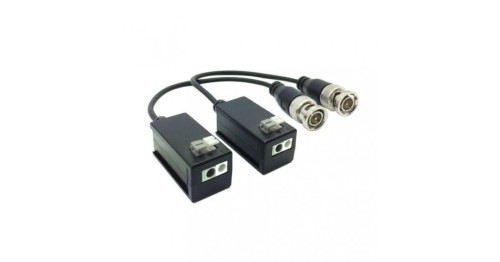

DS-1H18S/E-E HD Video Balun


 Screw interface with cable and without cable
 Mini size for easy installation
 ABS outer shell for convenient to use in intensive project
 No power required, and simplified project wiring
 Plug and play, real-time transmit CCTV HD video signal, and high quality and stable video
 Compatible with HDTVI/HDCVI/AHD
 Transmission distance: non-POC Camera: Max. 200m.
 Superior anti-interference and lighting protection and ESD

Features and Functions







Model DS-1H18S/E-E
Properties
Transmission Signal 1 channel
Transmission Distance Non-POC Camera: Max 200m
Category Type UTP CAT 5E/ 6 (R<100Ω/100M)
Video
Transmission
Properties and
Port
Coaxial Video Connector BNC-M
Twisted-pair Video
Connector
Screw Interface
Compatible Format HDTVI/HDCVI/AHD
Resolution 720P/1080P/3MP/4MP/5MP
Ant-interference >60db
Protection
ESD
1a contact discharge electricity level3
1b air discharge electricity level3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector
2KV(different-code),
2KV(common-code)
Per:IEC61000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical
Properties
Shell ABS
Color Black
Dimensions
( L x W x H )
147mm x 14.5mmx 17mm
45mm x 14.5mmx 17mm
Weight 31.2 g
Stability MTBF >10000 h
Environmental
Operating Temperature -10-55ºC
Storage Temperature -20-70ºC
Humidity 0-95% (non-condensing)

Specifications




Typical Application



Available Model
DS-1H18S/E-E
