DS-1H18S/E(B)

DS-1H18S/E(B) HD Video Balun   Real-time transmission over UTP cat5e/6   Compatible with all HD-TVI/CVI/AHD/CVBS analog camera   Low crosstalk and noise suppressions   Male BNC connector   Built-in solid state TVS (Transient Voltage Suppressor) for surge protection   Wave Filter Design, Anti-Static Design   Power and video signals transmit over one twist pair cable   60 dB crosstalk and noise immunity   Exceptional interference rejection   ABS engineering plastic housing   Compatible with HD-TVI, HD-CVI, AHD and CVBS    Features and Functions  The DS-1H18S/E(B) video balun is a passive device that  allows the transmission of real-time CCTV HD video signal  and power via cost-effective Unshielded Twisted Paired  (UTP) cable            Model DS-1H18S/E(B)  Transmission Signal 1 channel  Category Type UTP CAT 5E/ 6 (R<100Ω/100M)  Coaxial Video Connector BNC-M  Twisted-pair Video  Connector  Tool-less push-pin terminal block  Compatible Format HD-TVI/CVI/AHD/CVBS  Resolution 720P/960P/1080P/3MP/4MP/5MP/8MP  Ant-interference >60db  1a contact discharge electricity level3  1b air discharge electricity level3  Per: IEC61000-4...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

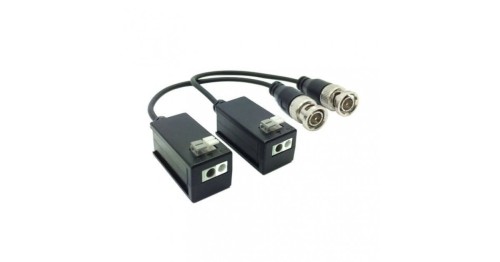

DS-1H18S/E(B) HD Video Balun
 Real-time transmission over UTP cat5e/6
 Compatible with all HD-TVI/CVI/AHD/CVBS analog camera
 Low crosstalk and noise suppressions
 Male BNC connector
 Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
 Wave Filter Design, Anti-Static Design
 Power and video signals transmit over one twist pair cable
 60 dB crosstalk and noise immunity
 Exceptional interference rejection
 ABS engineering plastic housing
 Compatible with HD-TVI, HD-CVI, AHD and CVBS

Features and Functions
The DS-1H18S/E(B) video balun is a passive device that
allows the transmission of real-time CCTV HD video signal
and power via cost-effective Unshielded Twisted Paired
(UTP) cable





Model DS-1H18S/E(B)
Transmission Signal 1 channel
Category Type UTP CAT 5E/ 6 (R<100Ω/100M)
Coaxial Video Connector BNC-M
Twisted-pair Video
Connector
Tool-less push-pin terminal block
Compatible Format HD-TVI/CVI/AHD/CVBS
Resolution 720P/960P/1080P/3MP/4MP/5MP/8MP
Ant-interference >60db
1a contact discharge electricity level3
1b air discharge electricity level3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV (common-code) Per: IEC61000-4-5
BNC Male 75 ohms
UTP Cable 100 ohms
Shell ABS engineering plastic
Color Black
Dimensions
38.4*18.6*19.5mm (BNC connector & cable excluded)
Specifications


( L x W x H )
Weight 22g
Stability MTBF >10000 h
Operating Temperature -20º ~55º C
Storage Temperature -40º ~ 150º C
Humidity 0-95% (non-condensing)

Camera Type HD-TVI HD-CVI HD-AHD
720P camera 400m(1312ft) 450m(1476ft) 450m(1476ft)
960P camera / / 320m(1049ft)
1080P camera 250m(820ft) 250m(820ft) 250m(820ft)
3MP camera 250m(820ft) / 250m(820ft)
4MP camera 180m(656ft) 200m(656ft) 200m(656ft)
5MP camera 180m(656ft) / 180m(590ft)
CVBS camera 400m(1312ft)



Typical Application




















Available Model
DS-1H18S/E(B)
