DS-2AE4215T-D3(D)

Verfügbarkeit: 0
Preis: 427,33 € 427.33
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 301205284

Beschreibung

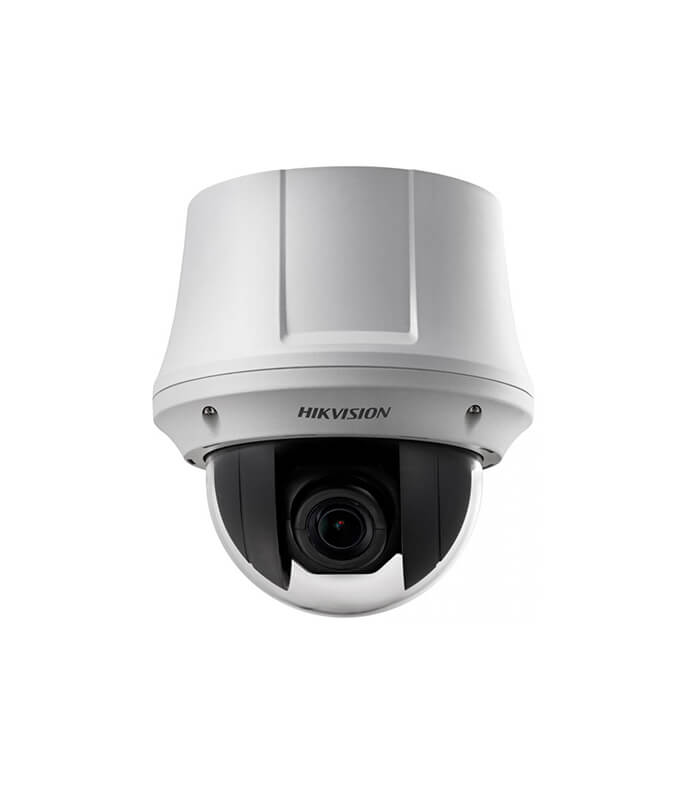

Hikvision DS-2AE4215T-D3(C) PTZ Dome Cameras are  able to capture high quality images. The embedded  CMOS chip makes WDR, and real-time 1920 x 1080  resolution possible. With the help of the 15x optical  zoom, and IR cut filter, the camera offers more details  over an expansive area.  * 1/2.8" HD progressive scan CMOS  * 1920 x 1080 resolution  * 15x optical zoom, 16x digital zoom  * 120 dB Ture WDR (Wide Dynamic Range)  * 3D intelligent positioning  * Switchable TVI/AHD/CVI/CVBS video outputs      DS-2AE4215T-D3(C)  2 MP Turbo 4-Inch Speed Dome          Specification  Camera  Model DS-2AE4215T-D3(C)  Image Sensor 1/2.8" progressive scan CMOS  Max. Image Resolution 1920 x 1080  Frame Rate  50Hz: 25fps @(1920 x 1080)  60Hz: 30fps @(1920 x 1080)  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR  AGC AUTO/MANUAL  DNR 3D DNR  WDR ≥ 120 dB                      Lens  Focus Mode Auto/Semiauto/Manual  Focal Length 5 mm to 75 mm, 15x Optical  Aperture Range F 1.6 to F 3.5  Field of View  Horizontal field of view: 53.8° t...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

Hikvision DS-2AE4215T-D3(C) PTZ Dome Cameras are
able to capture high quality images. The embedded
CMOS chip makes WDR, and real-time 1920 x 1080
resolution possible. With the help of the 15x optical
zoom, and IR cut filter, the camera offers more details
over an expansive area.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 15x optical zoom, 16x digital zoom
* 120 dB Ture WDR (Wide Dynamic Range)
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video outputs


DS-2AE4215T-D3(C)
2 MP Turbo 4-Inch Speed Dome




Specification
Camera
Model DS-2AE4215T-D3(C)
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB










Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 5 mm to 75 mm, 15x Optical
Aperture Range F 1.6 to F 3.5
Field of View
Horizontal field of view: 53.8° to 4.0° (wide to tele)
Vertical field of view: 31.9° to 2.3° (wide to tele)
Diagonal field of view: 60.4° to 4.6°(wide to tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 2.4 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s
Tilt Range 5° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF




Preset Freezing Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm input, 1 alarm output
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocols
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
12V DC
Max. 12 W
Working Temperature -10° C to 50° C (14° F to 122° F)
Working Humidity 90% or less
Protection Level TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimension
DS-2AE4215T-D3 (Indoor): Ø 165 mm x 179.5 mm (Ø 6.5" x 7.1")
DS-2AE4215T-D3 (In-ceiling): Ø 165 x 168 mm (Ø 6.5" x 6.6")
Weight (approx.) 2 kg (4.41 Ib.)
















Order Model
DS-2AE4215T-D3(C)
Dimensions
IndoorInceiling
1
7
9
.
5

m
m

(
7
.
1
"
)
Ø 165 mm (6.5")
Ø 120 mm (4.7")
Ø 165 mm (6.5")
Ø 120 mm (4.7")
1
6
8

m
m

(
6
.
6
"
)









0304401080410
