DS-2AE4223T-A
product unavailable
zur Wunschliste hinzufügenBeschreibung

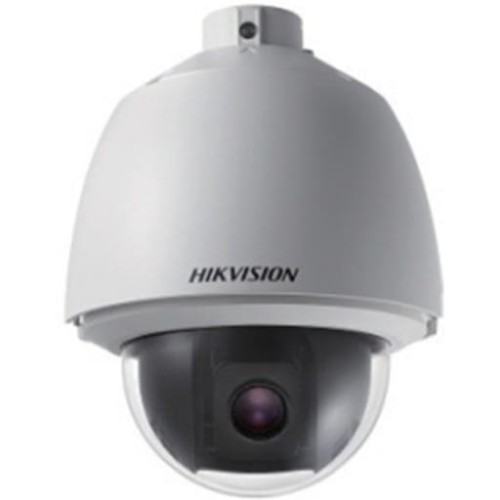

DS-2AE4123T/4223T-A/A3 HD720P/1080P Turbo PTZ Dome Camera HikvisionDS-2AE4123T/4223T-A/A3 PTZ Dome Cameras are able to capture high quality images in low light environment with its black anti-reflective glass. Embedded with HD progressive scan CMOS chip makes WDR and 1MP/2MP real-time resolution possible. With the 23X optical zoom Day/Night lens, the camera offers more details over expansive areas. KeyFeatures *1/3“,1/2.8’’HDProgressiveScanCMOS *1280x720/1920x1080 *23XOpticalZoom *DWDR *3Dintelligentpositioningfunction *SupportTurboHDandCVBSoutput DS-2AE4123T/4223T-A/A3 HD720P/1080P Turbo PTZ Dome Camera Function Description System function: •1/3’’,1/2.8’’ high performance CMOS, up to 1280x720/ 1920x1080 resolution •±0.1°Preset Accuracy •Self-adaptive to HIKVISION, Pelco-P/D protocol •3D intelligent positioning function •Power-off memory function: restore PTZ & Lens status after reboot •Built-in temperature sensor, with display of internal temperature •Lightning protection, surge protection and voltage transient protection •IP66 standard (outdoor dome) •RS-485 communication diagnosis •Scheduled PTZ movement •UTC(Up t...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-2AE4123T/4223T-A/A3
HD720P/1080P Turbo PTZ Dome Camera
HikvisionDS-2AE4123T/4223T-A/A3 PTZ Dome Cameras are
able to capture high quality images in low light environment
with its black anti-reflective glass.
Embedded with HD progressive scan CMOS chip makes WDR
and 1MP/2MP real-time resolution possible. With the 23X
optical zoom Day/Night lens, the camera offers more details
over expansive areas.
KeyFeatures
*1/3“,1/2.8’’HDProgressiveScanCMOS
*1280x720/1920x1080
*23XOpticalZoom
*DWDR
*3Dintelligentpositioningfunction
*SupportTurboHDandCVBSoutput
DS-2AE4123T/4223T-A/A3
HD720P/1080P Turbo
PTZ Dome Camera
Function Description
System function:
•1/3’’,1/2.8’’ high performance CMOS, up to
1280x720/ 1920x1080 resolution
•±0.1°Preset Accuracy
•Self-adaptive to HIKVISION, Pelco-P/D protocol
•3D intelligent positioning function
•Power-off memory function: restore PTZ & Lens
status after reboot
•Built-in temperature sensor, with display of internal
temperature
•Lightning protection, surge protection and voltage
transient protection
•IP66 standard (outdoor dome)
•RS-485 communication diagnosis
•Scheduled PTZ movement
•UTC(Up the Coax) function
Camera function:
•Auto focus, auto white balance, backlight
compensation and auto/manual day & night switch
•Privacy masks programmable
•3D DNR, digital zoom
•DWDR, EIS
PTZ function:
•360°endless pan range and 0°-90°tilt range
•160°/s Pan Preset Speed and 120°/s Tilt Preset
Speed
•0.1°-160°/s Manual Pan Speed and 0.1°-
120°/s Manual Tilt Speed
•256 presets programmable; preset image freezing
capability
•8 patrols, up to 32 presets per patrol
•4 patterns, with the total recording time not less
than 10 minutes
•Proportional zoom function
•Park action: auto call up of PTZ movement, after a
defined time of inactivity
ModelDS-2AE4123T-A/A3DS-2AE4223T-A/A3
Camera Module
ImageSensor1/3’’ Progressive Scan CMOS1/2.8’’ Progressive Scan CMOS
Min.IlluminationColor: 0.05Lux@( F1.4,AGC ON);B/W: 0.005Lux@( F1.4,AGC ON)
Max.ImageResolution1280 x7201920 x 1080
FocalLength4-92.0mm, 23x
DigitalZoom16X
ZoomSpeedApprox.3s(Optical Wide~Tele)
AngleofView49-2.2 degree(Wide-Tele)
Min.WorkingDistance10~1,000mm(Wide~Tele)
ApertureRangeF1.4-F3.5
FocusModeAuto / Semiautomatic / Manual
DWDRSupport
S/NRatio≥ 50dB
ShutterTime1-1/10,000s
AGCAuto / Manual
WhiteBalanceAuto/Manual/ATW/Indoor/Outdoor
Day&NightIR Cut Filter
PrivacyMask8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Enhancement3D DNR,BLC, EIS
Pan and Tilt
RangePan:360°endless; Tilt: 0°~90°(Auto Flip)
Speed
Pan Manual Speed:0.1°~160°/s, Pan Preset Speed: 160°/s
Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s
Number of Preset256
Patrol8 patrols,up to 32 presets per patrol
Pattern4 patterns, with the total recording time not less than 10 minutes
Park ActionPreset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan
Scheduled TaskPreset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan
RS-485 communication
diagnosis
Support
Input/ Output
Turbo HD Output1 turbo HD720P/1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
CVBS Output1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Alarm Input2
Alarm Output1
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC functionHIKVISION_C
DS-2AE4123T/4223T-A/A3
HD720P/1080P Turbo
PTZ Dome Camera
AccessoriesDimensions
General
Menu LanguageEnglish
Power
24VAC
Outdoor dome: Max. 18W (Heater On), Max. 12W(Heater Off)
Indoor dome: Max.12W
Working Temperature /
Humidity
-30 °C-65°C(-22°F-149°F)
90% or less
Protection Level
IP66 standard
TVS 4,000V lightning protection, surge protection and voltage transient protection
MountingVarious mounting modes optional
Dimensions Φ185x330mm (Φ7.28”x12.99”)
Weight (approx.)4Kg (8.81Ibs)
Mount Option (only suitable
for outdoor dome)
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
DS-2AE4123T/4223T-A/A3
HD720P/1080P Turbo
PTZ Dome Camera
DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount
DS-1005KI
USB Joy-stick
DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount
DS-1602ZJ
Wall Mount
