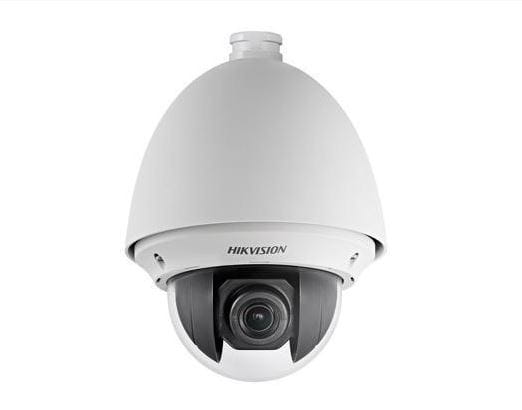

Hikvision DS-2AE4225T-D(C) Turbo 4-Inch Speed Dome is able to capture high quality images in poor light environment. The embedded CMOS chip makes WDR, and real-time 1920 x 1080 resolution possible. With the help of the 25x optical zoom, and IR cut filter, the camera offers more details over an expansive area. * 1/2.8" HD progressive scan CMOS * 1920 x 1080 * 25x optical zoom, 16x digital zoom * 120 dB true WDR (Wide Dynamic Range) * 3D intelligent positioning * Switchable TVI/AHD/CVI/CVBS video outputs DS-2AE4225T-D(C) 2 MP Turbo 4-Inch Speed Dome Specification Camera Model DS-2AE4225T-D(C) Image Sensor 1/2.8" progressive scan CMOS Max. Image Resolution 1920 x 1080 Frame Rate 50Hz: 25fps @(1920 x 1080) 60Hz: 30fps @(1920 x 1080) Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR AGC AUTO/MANUAL DNR 3D DNR WDR ≥ 120 dB Lens Focus Mode Auto/Semiauto/Manual Focal Length 4.8 mm to 120 mm, 25x Optical Aperture Range F 1.6 to F 3.5 Field of View Horiz...
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
Hikvision DS-2AE4225T-D(C) Turbo 4-Inch Speed Dome is
able to capture high quality images in poor light
environment. The embedded CMOS chip makes WDR,
and real-time 1920 x 1080 resolution possible. With the
help of the 25x optical zoom, and IR cut filter, the camera
offers more details over an expansive area.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080
* 25x optical zoom, 16x digital zoom
* 120 dB true WDR (Wide Dynamic Range)
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video outputs
DS-2AE4225T-D(C)
2 MP Turbo 4-Inch Speed Dome
Specification
Camera
Model DS-2AE4225T-D(C)
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB
Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 4.8 mm to 120 mm, 25x Optical
Aperture Range F 1.6 to F 3.5
Field of View
Horizontal field of view: 57.6° to 2.5° (wide to tele)
Vertical field of view: 34.4° to 1.4° (wide to tele)
Diagonal field of view: 64.5° to 2.9° (wide-tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 3.6 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s
Tilt Range 5° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF
Preset Freezing Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm input, 1 alarm output
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
12 VDC
Max. 16 W
Working Temperature -30° C to 65° C (-22° F to 149° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimension Ø 179.4 x 239.5 mm (Ø 7.1" x 9.4")")
Weight (approx.) 2 kg (4.41 Ib.)
Order Model
DS-2AE4225T-D(C)
Dimensions
2
3
9
.
5
m
m
(
9
.
4
"
)
Ø 180 mm (7.1")
Ø 120 mm (4.7")
Accessories
0304401080410
DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount
DS-1005KI
USB Joy-stick
DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount
DS-1602ZJ
Wall Mount
