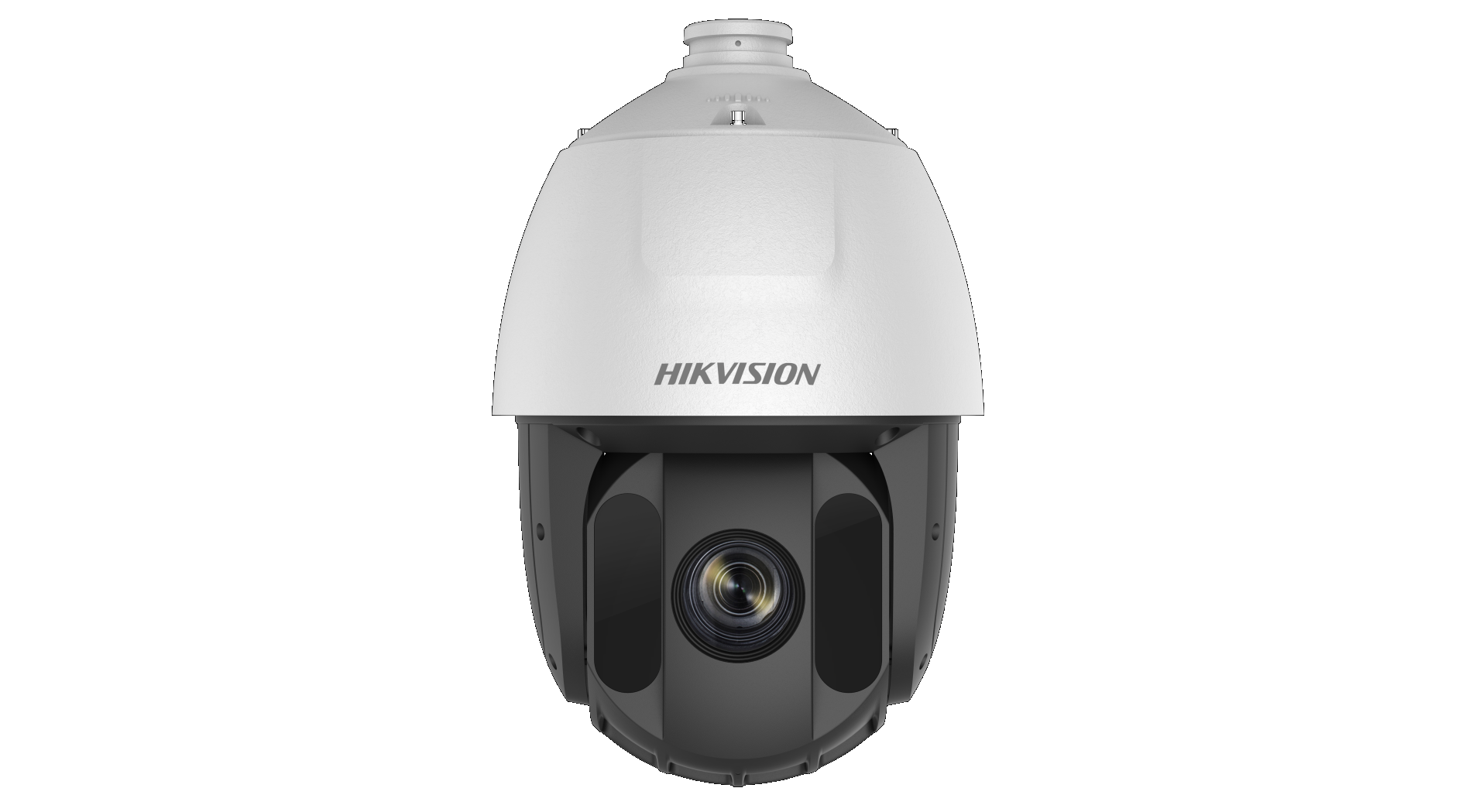

DS-2AE5232T-A3(C)

Hikvision DS-2AE5232T-A3 Turbo 5-Inch Speed Dome is  able to capture high quality images in poor light  environment. The embedded CMOS chip makes WDR,  and real-time 1920 x 1080 resolution possible. With the  help of the 32x optical zoom, and IR cut filter, the camera  offers more details over an expansive area  .  * 1/2.8" HD progressive scan CMOS  * 1920 x 1080 resolution  * 32x optical zoom  * 120 dB true WDR (Wide Dynamic Range)  * 3D intelligent positioning  * Switchable Turbo HD and CVBS outputs        DS-2AE5232T-A3  2 MP Turbo 5-Inch Speed Dome          Specification  Camera  Model DS-2AE5232T-A3  Image Sensor 1/2.8" progressive scan CMOS  Max. Image Resolution 1920 x 1080  Frame Rate  50Hz: 25fps @(1920 x 1080)  60Hz: 30fps @(1920 x 1080)  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  Digital Zoom 16x  White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR  AGC AUTO/MANUAL  DNR 3D DNR  WDR ≥T            Lens  Focus Mode Auto/Semiauto/Manual  Focal Length 4.8 mm to 153 mm, 32x Optical  Aperture Range F 1.6 to F4.6  Horizontal Field of View 54.2° to 1.97° (wide-...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Hikvision DS-2AE5232T-A3 Turbo 5-Inch Speed Dome is
able to capture high quality images in poor light
environment. The embedded CMOS chip makes WDR,
and real-time 1920 x 1080 resolution possible. With the
help of the 32x optical zoom, and IR cut filter, the camera
offers more details over an expansive area
.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 32x optical zoom
* 120 dB true WDR (Wide Dynamic Range)
* 3D intelligent positioning
* Switchable Turbo HD and CVBS outputs



DS-2AE5232T-A3
2 MP Turbo 5-Inch Speed Dome




Specification
Camera
Model DS-2AE5232T-A3
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
Digital Zoom 16x
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥T





Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 4.8 mm to 153 mm, 32x Optical
Aperture Range F 1.6 to F4.6
Horizontal Field of View 54.2° to 1.97° (wide-tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 3.5 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 250°/s
Pan preset speed: 250°/s
Tilt Range -15° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 150°/s
Tilt preset speed: 150°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Support
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Position Display ON/OFF
Preset Freezing Support
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero
Calibration/None








Input/Output
Turbo HD Output 1 turbo 1080p output, NTSC (or PAL) composite, BNC
CVBS Output 1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC

TT
T

General
Menu Language English
Power
24 VAC
Max. 18 W
Working Temperature -10° C to 50° C (14° F to 122° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimension
DS-2AE5232T-A3 (Indoor): Ø 156 mm x243 mm (6.14" x 9.57")
DS-2AE5232T-A3 (In-Ceiling): Ø 156 mm x236 mm (6.14" x 9.29")
Weight (approx.) 3 kg (6.61 Ib.)



Order Model
DS-2AE5232T-A3
Dimensions
Indoor
183 mm (7.20" )
2
4
3

m
m

(
9
.
5
7
"

)
Ø 156 mm (6.14" )
84 mm (3.31" )
4
6

m
m

(
1
.
8
1
"

)
4-Ø 4 mm
(0.16" )
In-Ceiling
2
3
6

m
m

(
9
.
2
9
"

)
245 mm (9.64" )
Ø 156 mm (6.14" )
Ø 224 ± 2 mm
(8.82" )
