DS-2CC12D8T-AMM
product unavailable
zur Wunschliste hinzufügenBeschreibung
Key Features 2 MP high performance CMOS Ultra-low light 1920 x 1080 resolution 120 dB true WDR, 3D DNR Up the coax (HIKVISION-C) DS-2CC12D8T-AMM 2 MP Ultra-Low Light Box Camera Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Resolution 1920 (H) x 1080 (V) Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens Mount C/CS mount Auto-iris DC drive Synchronization Internal synchronization WDR (Wide Dynamic Range) > 120 dB Menu AGC Support Day/Night Mode Auto/Color/BW (Black and White) White Balance ATW/MANUAL Privacy Mask ON/OFF, 4 programmable privacy masks Motion Detection 4 programmable motion areas Backlight Compensation Support 3D DNR (Digital Noise Reduction) Level 1 to 10 Language English, Chinese Functions Brightness, sharpness, mirror Interface Video Output 1 HD analog output/1 CVBS output (75Ω/BNC) General Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 80% or less (non-condensation...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
Key Features
2 MP high performance CMOS
Ultra-low light
1920 x 1080 resolution
120 dB true WDR, 3D DNR
Up the coax (HIKVISION-C)

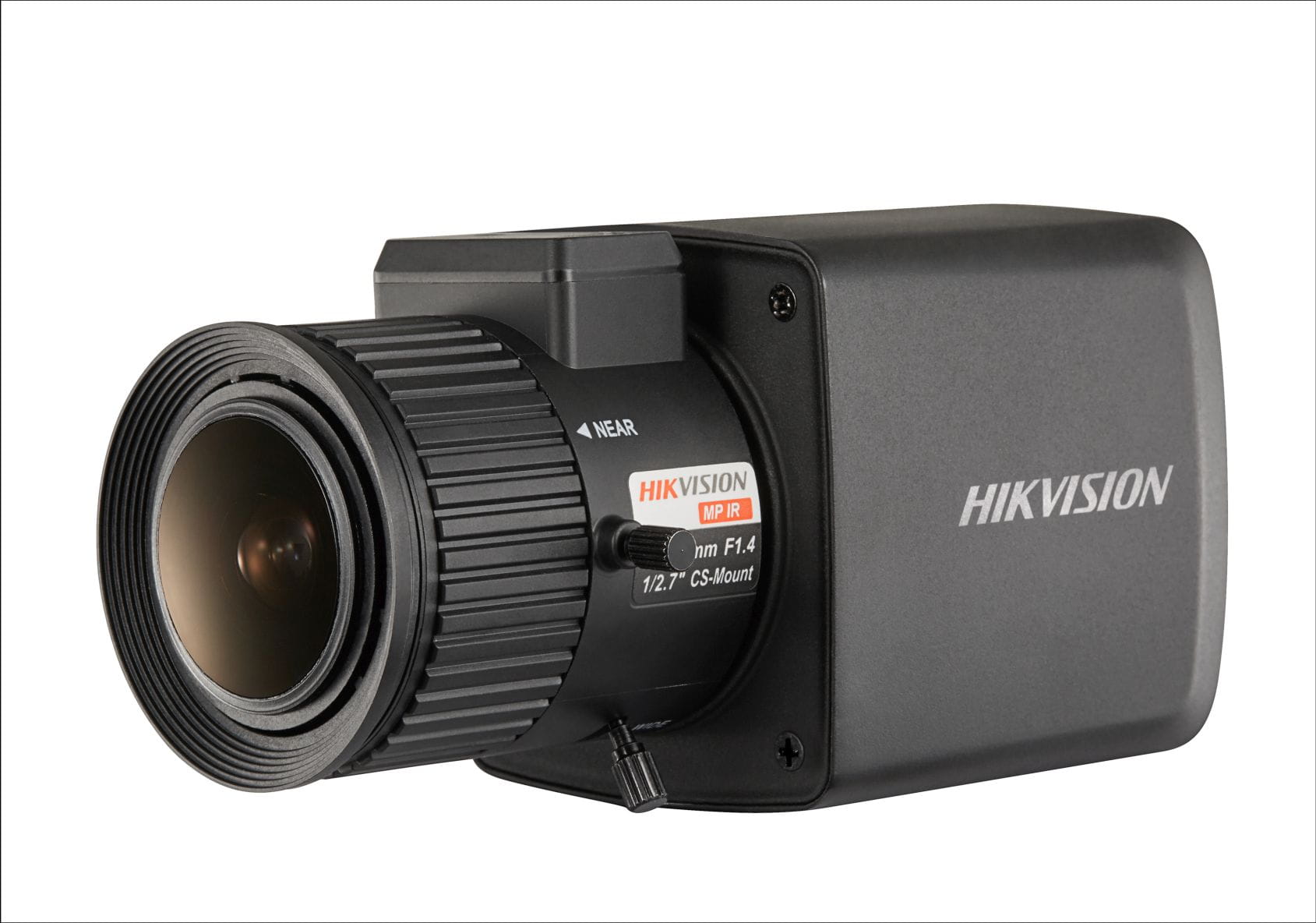

DS-2CC12D8T-AMM
2 MP Ultra-Low Light Box Camera
Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens Mount C/CS mount
Auto-iris DC drive
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation Support
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English, Chinese
Functions Brightness, sharpness, mirror
Interface
Video Output 1 HD analog output/1 CVBS output (75Ω/BNC)
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 80% or less (non-condensation)
Power Supply
12 VDC ±25%
-A: 24 VAC ±25%
Power Consumption Max. 3 W
Material Metal
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 69.29 mm x 54 mm x 56 mm (2.73" x 2.13" x 2.2")
Weight Approx. 175 g (0.39 lb.)
Specification
Order Model
DS-2CC12D8T-AMM
Dimension
46.69 mm (1.84")
69.29 mm (2.73")
54 mm (2.13")
5
6
m
m
(
2
.
2
"
)
¼-20UNC
Accessory
TV2710D-MPIR
Manual Vari-focal Lens
DS-1292ZJ
Wall Mount
DS-1330HZ
Indoor Housing
DS-1331HZ
Outdoor Housing
DS-1332HZ
Indoor Housing
DS-1H18
Video Balun
X41T
Camera Tester
