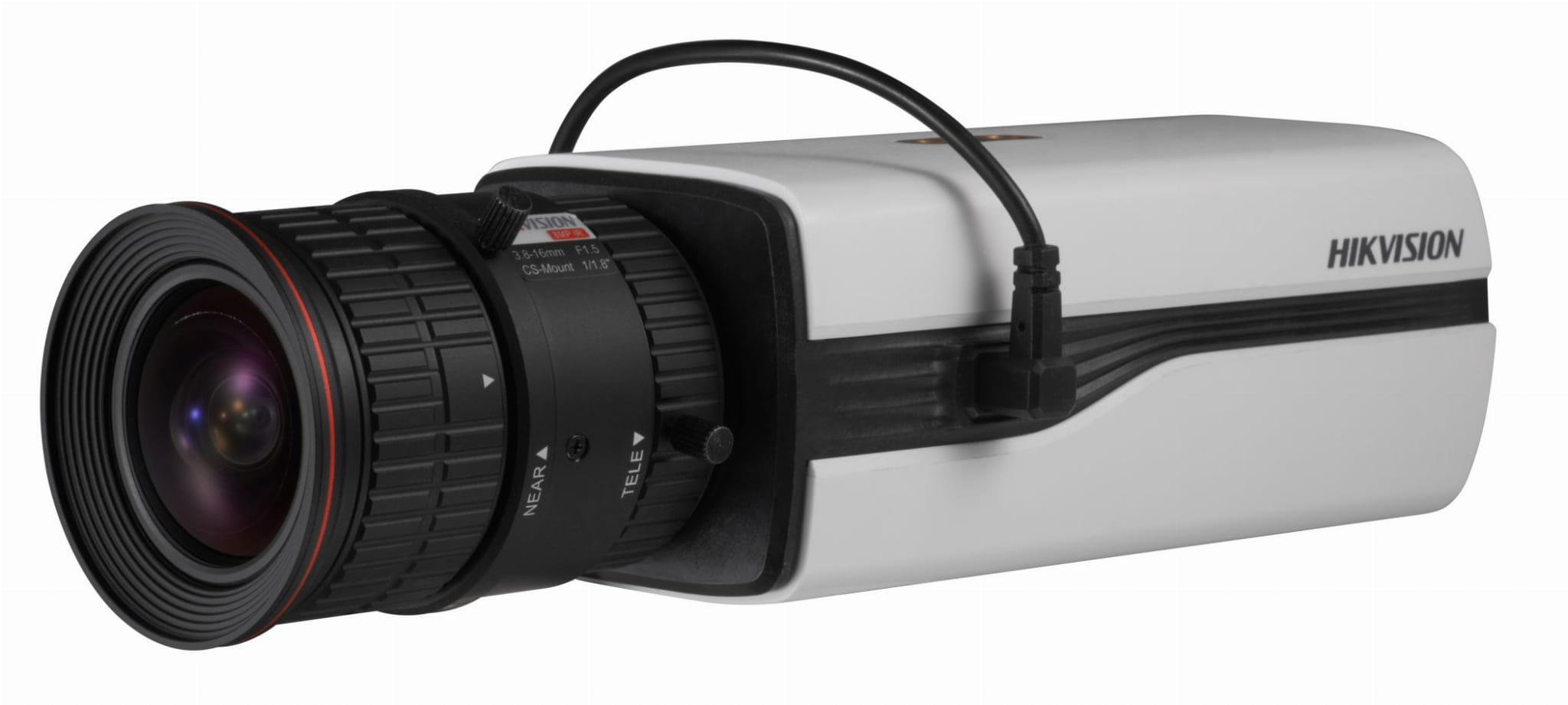

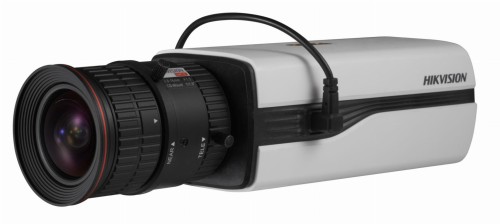

DS-2CC12D9T-E

Verfügbarkeit: 0
Preis: 190,77 € 190.77
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 300505348

Beschreibung

DS-2CC12D9T-A  HD1080p Box Camera  DS-1H18  Video Balun  • HD1080p Video Output  • HD-TVI Technology  • True Day/Night  • 3D DNR, Smart IR  •True WDR, Up to 120 dB  • OSD Menu Controlled via UTC  • Alarm Input and Output  • Dual Voltage    DS-2CC12D9T-A  Camera  Image Sensor 1/3" progressive scan CMOS  Signal System PAL/NTSC  Effective Pixels 1920 x 1080  Minimum Illumination Color: 0.01 lux @ (ƒ/1.2, AGC on); B/W: 0.001 lux @ (ƒ/1.2, AGC on)  Shutter Time1/25 (1/30) s to 1/50,000 s  Lens Mount C/CS mount  Auto Iris ICR  Synchronization Internal synchronization  WDR 120 dB  Video Frame Rate 1080p@25 fps/1080p @ 30fps  HD Video Output 1 analog HD output  CVBS Output 1 Vp-p composite output (75 Ω/BNC)  S/N Ratio More than 52 dB  Menu  Scene Indoor, outdoor, indoor1, LOW-LIGHT  Camera ID On/off (15 characters, position programmable)  AGC Supported  D/N Mode Color/BW/EXT  White Balance ATW, AWC-SET, indoor, outdoor, m anual  Privacy Mask On/ off, maximum 8 zone...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-2CC12D9T-A
HD1080p Box Camera
DS-1H18
Video Balun
• HD1080p Video Output
• HD-TVI Technology
• True Day/Night
• 3D DNR, Smart IR
•True WDR, Up to 120 dB
• OSD Menu Controlled via UTC
• Alarm Input and Output
• Dual Voltage

DS-2CC12D9T-A
Camera
Image Sensor 1/3" progressive scan CMOS
Signal System PAL/NTSC
Effective Pixels 1920 x 1080
Minimum Illumination Color: 0.01 lux @ (ƒ/1.2, AGC on); B/W: 0.001 lux @ (ƒ/1.2, AGC on)
Shutter Time1/25 (1/30) s to 1/50,000 s
Lens Mount C/CS mount
Auto Iris ICR
Synchronization Internal synchronization
WDR 120 dB
Video Frame Rate 1080p@25 fps/1080p @ 30fps
HD Video Output 1 analog HD output
CVBS Output 1 Vp-p composite output (75 Ω/BNC)
S/N Ratio More than 52 dB
Menu
Scene Indoor, outdoor, indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Supported
D/N Mode Color/BW/EXT
White Balance ATW, AWC-SET, indoor, outdoor, m anual
Privacy Mask On/ off, maximum 8 zones
Motion Detection On/off, maximum 4 zones
BLC Support ed
Anti-flicker On/off
Functions
HSBLC (Eclipse), digital noise reduction, digital zoom (62x), s low shutter, mirror,
defog, defect pixel correction, SMART D-ZOOM
General
Working
Temperature/Humidity
-30° C to 60° C (-22° F to 140° F), humidity 90% or less (non-condensing)
Power 24 VAC, 12 VDC
Power Consumption Maximum 3.5 W
Communication Up-the-Coax (need UTC controller) Protocol: Pelco-C
Dimensions 69.8 mm x 58 mm x145 mm (2.68 " x 2.56" x 5.70")
Weight 830 g (1.83 lbs)
Key Features
Dimensions

HV3816D-8MPIR Auto Iris
Manual Focusing 8 MP HD Lens
WBL
Wall Mounting
Long Arm
WBS
Wall Mounting
Short Arm
HV1140D-8MPIR Auto Iris
Manual Focusing 8 MP HD Lens
TV2810D-MPIR Auto Iris
Manual Focusing 3 MP IR Lens

Accessories
Lenses
1/3”
CMOS

OSD

ICR

Scan

BLC

Hikvision USA Inc., 18629 Railroad St., City of Industry, CA 91748, USA • Hikvision Canada, 4485 Dobrin, St-Laurent, Quebec, Canada, H4R 2L8
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2015 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 091516NA
CHB Series
Outdoor Housing
Order Model
DS-2CC12D9T-A
