DS-2CC52D9T-AITZE(2.8-12mm)

Key Features  * 2.0 megapixel progressive scan CMOS  * Analog HD output, up to 1080p resolution  * 2.8 to 12 mm motorized vari-focal lens  * OSD menu  * 120 dB true WDR  * Semi-auto focus  * EXIR 2.0, up to 40 m IR distance  * 1 alarm in/out  * PoC  * Up the Coax (HIKVISION-C)    DS-2CC52D9T-AITZE  2MP Ultra Low-Light PoC Dome Camera                Specification  Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Effective Resolution 1920 (H) x 1080 (V)  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50,000 s  NTSC: 1/30 s to 1/50,000 s  Slow Shutter Max.: 30 times  Lens 2.8 mm to 12 mm  Horizontal Field of View 32.1° to 98°  Lens Mount Φ14  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 340°, Tilt: 0° to 75°, Rotate: 0° to 355°  Synchronization Internal synchronization  WDR > 120 dB  Menu  AGC Support  Day/Night Mode Auto/Color/BW (White & Black)  White Balance ATW/AWC-SET/MANUAL  Privacy Mask ON/OFF, 8 programmable privacy masks  Motion 4 programmable motion areas  B...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
* 2.0 megapixel progressive scan CMOS
* Analog HD output, up to 1080p resolution
* 2.8 to 12 mm motorized vari-focal lens
* OSD menu
* 120 dB true WDR
* Semi-auto focus
* EXIR 2.0, up to 40 m IR distance
* 1 alarm in/out
* PoC
* Up the Coax (HIKVISION-C)

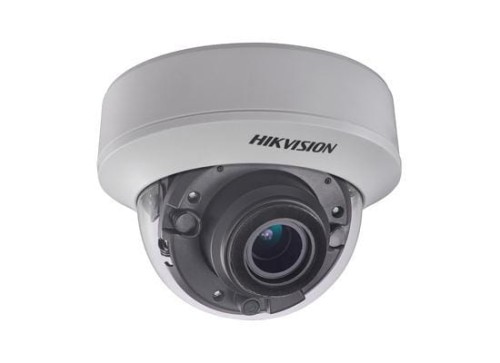

DS-2CC52D9T-AITZE
2MP Ultra Low-Light PoC Dome Camera







Specification
Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Effective Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max.: 30 times
Lens 2.8 mm to 12 mm
Horizontal Field of View 32.1° to 98°
Lens Mount Φ14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 340°, Tilt: 0° to 75°, Rotate: 0° to 355°
Synchronization Internal synchronization
WDR > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (White & Black)
White Balance ATW/AWC-SET/MANUAL
Privacy Mask ON/OFF, 8 programmable privacy masks
Motion 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
2D & 3D DNR ON/OFF
Voltage Detection Support
Functions Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title
Scene Indoor/outdoor/indoor1/low light
Interface
Video Output 1 HD analog output/1 Vp-p composite output (75Ω/BNC)
Alarm 1 alarm in/out
General
Operating Conditions -40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation)
Power Supply 24 V AC/12 V DC ±30%/PoC.at
Power Consumption Max.: 6 W
IR Distance Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C
Dimensions Φ 136 mm x 101.9 mm (5.35" x 4.01")
Weight Approx. 800 g (1.76 lb.)







Order Model
DS-2CC52D9T-AITZE
* PoC function is only available when cooperating with DS-1TPXXX.
Dimensions
83
.5
mm
(3
.29
")
46 mm
(1.81")
99.94 mm
(3.93")
101
.94
mm
(4
.01
")
136 mm (5.35")
46.06 mm
(1.81")
83
.5
mm
(3
.29
")


Accessories

DS-1271ZJ-I30
Pendant Mounting Bracket
DS-1273ZJ-I30
Wall Mounting Bracket
DS-1249ZJ
In-Ceiling Mounting Bracket
DS-1240ZJ
Vertical Pole Mounting Bracket
