DS-2CD1131-I(2.8mm)

2.8 mm Fixed Lens Non 2.8 mm Fixed Lens          Key Features   1/3" progressive scan CMOS   Up to 3.0 megapixel high resolution   2.8 mm/4 mm/6 mm fixed lens   Up to 30 m IR range   Dual stream   Digital wide dynamic range   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet) optional   IP67, Ik10   Mobile Monitoring via Hik-Connect or iVMS-4500    DS-2CD1131-I  3.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/3" progressive scan CMOS  Min. Illumination Color: 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR, B/W: 0.0036Lux @(F2.0,AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s, support slow shutter  Lens  2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6°  6 mm @F2.0, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  3-Axis Adjustment Pan: 0° to 355°; Tilt: 0° to 70°; Rotation: 0° to 355°  DNR 3D DNR (Digital Noise Reduction)  Wide Dynamic Range Digital WDR  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Main Profile  Video Bit Rate 256 Kbps to 16 Mbps ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

2.8 mm Fixed Lens Non 2.8 mm Fixed Lens




Key Features
 1/3" progressive scan CMOS
 Up to 3.0 megapixel high resolution
 2.8 mm/4 mm/6 mm fixed lens
 Up to 30 m IR range
 Dual stream
 Digital wide dynamic range
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet) optional
 IP67, Ik10
 Mobile Monitoring via Hik-Connect or iVMS-4500

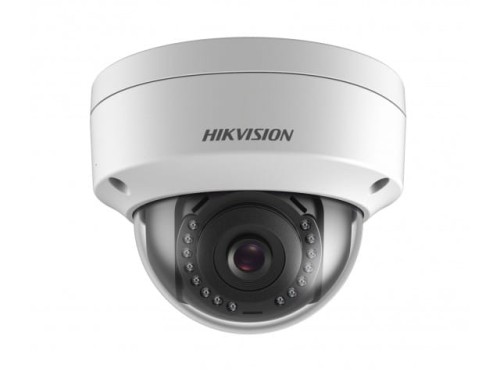

DS-2CD1131-I
3.0 MP CMOS Network Dome Camera



Camera
Image Sensor 1/3" progressive scan CMOS
Min. Illumination Color: 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR, B/W: 0.0036Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s, support slow shutter
Lens
2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6°
6 mm @F2.0, horizontal field of view 55°
Lens Mount M12
Day &Night IR cut filter with auto switch
3-Axis Adjustment Pan: 0° to 355°; Tilt: 0° to 70°; Rotation: 0° to 355°
DNR 3D DNR (Digital Noise Reduction)
Wide Dynamic Range Digital WDR
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Main Profile
Video Bit Rate 256 Kbps to 16 Mbps
Max. Resolution 2304 x 1296
Main Stream
Max. Frame Rate
50Hz: 20fps @(2304 x 1296), 25fps @(1920 x 1080, 1280 x 720)
60Hz: 20fps @(2304 x 1296), 30fps @(1920 x 1080, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps @(640 x 360, 352 x 288)
60Hz: 30fps @(640 x 360, 352 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled, triggered by the alarm input
Others Mirror, BLC (area configurable), region of Interest (support 1 fixed region)
Network
Network Storage Support local storage and NAS (NFS,SMB/CIFS), ANR
Detections Motion detection
Alarms Video tampering, network disconnected, IP address conflicted, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP,
802.1X, QoS, IPv6,Bonjour
Standard ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Support
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply 12 V DC ± 25%, PoE (802.3af)
Power Consumption Max. 5.5 W
Protection Level IP67, IK10
IR Range 30 m
Dimensions Φ 111 mm x 82 mm (4.4" x 3.2")
Weight 500 g (1.1 lb.)
Specification




Available Models
DS-2CD1131-I

Dimension
Φ 111 mm (4.4")
Φ 79 mm (3.1")
Φ 100.4 mm
(4 ")
Φ 79 mm (3.1")
82
.4
mm
(
3
.2
"
)







050440161024
